Gigabyte · Motherboard

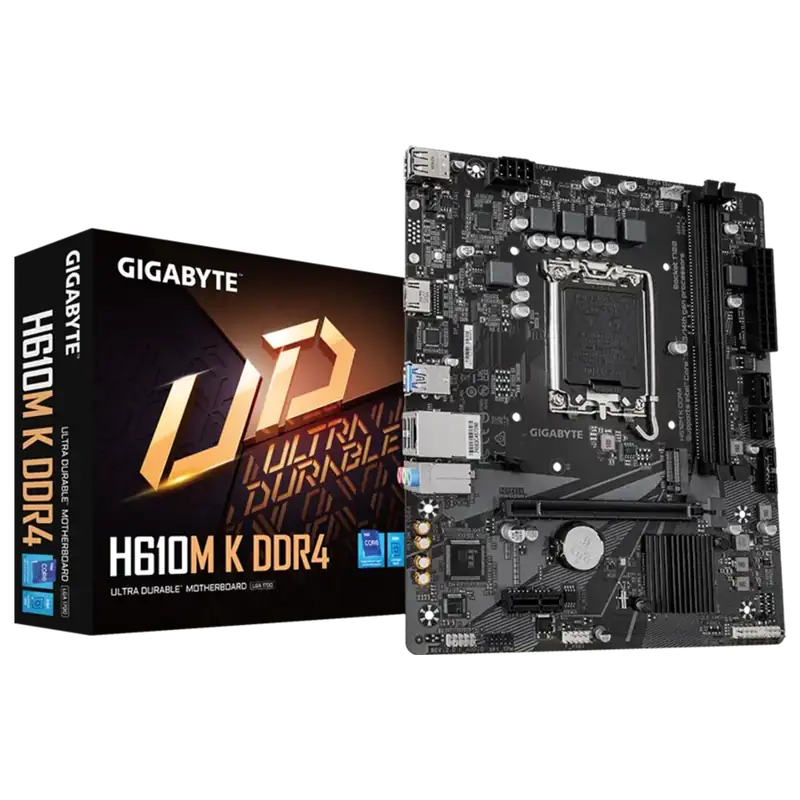

Gigabyte H610M K DDR4 Motherboard
Model: HZ0372
Product images are illustrative; appearance may vary.
3 Years Warranty
Out of stock · Request to order
- Intel H610 chipset and LGA1700 socketIntel H610 chipset සහ LGA1700 socket එක
- 2 DDR4 slots, up to 64 GB memoryDDR4 slots 2ක්, RAM 64 GB දක්වා
- PCIe 3.0 x4 M.2 and 2 SATA portsPCIe 3.0 x4 M.2 සහ SATA ports 2ක්
- Micro ATX with HDMI and Gigabit LANHDMI සහ Gigabit LAN තියෙන Micro ATX board එක
Product detailsනිෂ්පාදන විස්තර
Build a compact DDR4 desktop around the GIGABYTE H610M K DDR4. Its Intel H610 platform combines two memory slots, one PCIe 3.0 x4 M.2 connector and two SATA connectors, with HDMI and wired Gigabit networking for a supported system.DDR4 desktop එකක් හදාගන්න GIGABYTE H610M K DDR4 board එක තෝරන්න පුළුවන්. Intel H610 platform එකේ RAM slots 2ක්, PCIe 3.0 x4 M.2 connector එකක් සහ SATA connectors 2ක් තියෙනවා. ගැළපෙන system එකකට HDMI සහ wired Gigabit network connection එකත් ලැබෙනවා.
Before ordering, confirm the board revision and the exact processor on GIGABYTE’s CPU support list, including the required BIOS. Support is listed for 12th, 13th and 14th Gen Intel Core processors, but this is not a promise that every stocked BIOS is ready for every CPU. Use supported DDR4 memory; the motherboard HDMI output needs a processor with integrated graphics.Order කරන්න කලින් board revision එකත්, GIGABYTE CPU support list එකේ actual processor එක සහ අවශ්‍ය BIOS version එකත් confirm කරගන්න. 12th, 13th සහ 14th Gen Intel Core support ලැයිස්තුගත කරලා තිබුණත්, stock එකේ හැම BIOS එකක්ම හැම CPU එකකටම ready කියලා අදහස් වෙන්නේ නැහැ. ගැළපෙන DDR4 RAM භාවිත කරන්න. Board එකේ HDMI output භාවිත කරන්න integrated graphics තියෙන processor එකක් ඕන.
Specificationsතාක්ෂණික තොරතුරු
Platform / Platform විස්තර
| Model | GIGABYTE H610M K DDR4 |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA1700 |
| Form factor | Micro ATX, 22.6 × 18.5 cm |
Memory / RAM
| Slots | 2 × DDR4 DIMM |
|---|---|
| Maximum capacity | 64 GB total, up to 32 GB per slot |
| Listed data rates | DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| Memory support depends on the CPU and module configurationRAM support CPU එක සහ modules අනුව වෙනස් වෙනවා. | |
Storage and expansion / Storage සහ expansion
| M.2 | 1 × M-key connector, PCIe 3.0 x4/x2, 2260/2280 SSD support |
|---|---|
| SATA | 2 × SATA 6 Gb/s |
| Expansion | 1 × PCIe 4.0 x16 slot; 1 × PCIe 3.0 x1 slot |
Connections / Connections
| Rear | 1 × HDMI, 1 × RJ-45, 2 × USB 3.2 Gen 1, 4 × USB 2.0/1.1, 3 × audio jacks |
|---|---|
| Network | Gigabit Ethernet |
| Power connectors | 24-pin ATX and 8-pin CPU power |
Compatibility / ගැළපීම
| CPU | Check the exact board revision, CPU support list and required BIOSExact board revision එක, CPU support list එක සහ අවශ්‍ය BIOS එක බලන්න. |
|---|---|
| RAM | DDR4; DDR5 modules do not fitDDR4 RAM භාවිත කරන්න; DDR5 modules ගැළපෙන්නේ නැහැ. |
| HDMI | Requires CPU integrated graphicsCPU එකේ integrated graphics ඕන. |
| Photo is a model reference; confirm the supplied revision before orderingPhoto එක model reference එකක්; ලැබෙන revision එක order කරන්න කලින් confirm කරගන්න. | |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
