Hikvision · Router

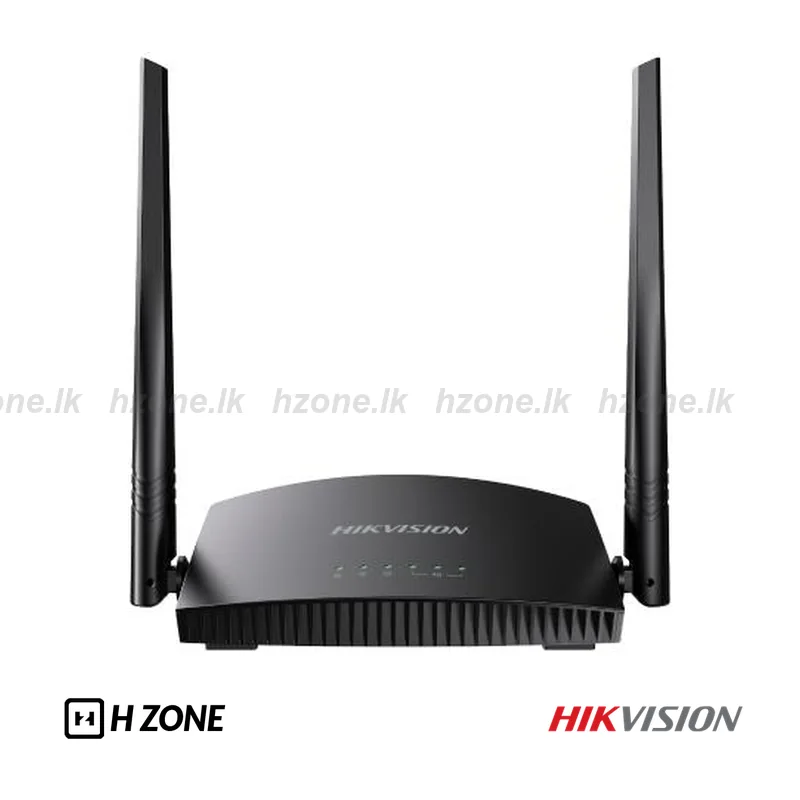

DS-3WR4G3N(O-STD)/UK HIKVISION 4G WiFi Router - 300Mbps
Model: DS-3WR4G3N
- Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation 1 × Nano SIM Card Slotජාල සම්බන්ධකය: 2 × RJ45, 10/100 Mbps auto-negotiation 1 × Nano SIM Card Slot
- Wireless Standard: IEEE 802.11b/g/n @2.4GHzWireless සම්මතය: IEEE 802.11b/g/n @2.4GHz
- Max. Transmission Rate of Air Interface: 2.4 GHz: 300 MbpsMax. Transmission Rate of Air Interface: 2.4 GHz: 300 Mbps
- 4G Speed: DL: 150 Mbps, Upload: 50 Mbps4G Speed: DL: 150 Mbps, Upload: 50 Mbps
- Mobile Standards: FDD LTE, TDD-LTE,WCDMAMobile Standards: FDD LTE, TDD-LTE,WCDMA
- Power Specifications: 9 VDC, 0.6 APower Specifications: 9 VDC, 0.6 A
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-3WR4G3N is a networking device. Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation 1 × Nano SIM Card Slot. Wireless Standard: IEEE 802.11b/g/n @2.4GHz. Max. Transmission Rate of Air Interface: 2.4 GHz: 300 Mbps.Hikvision DS-3WR4G3N network සම්බන්ධතා උපකරණය. ජාල සම්බන්ධකය: 2 × RJ45, 10/100 Mbps auto-negotiation 1 × Nano SIM Card Slot. Wireless සම්මතය: IEEE 802.11b/g/n @2.4GHz. Max. Transmission Rate of Air Interface: 2.4 GHz: 300 Mbps.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
General / සාමාන්ය
| Product Dimensions (W × H × D) | 126mm×97mm×42mm |
|---|---|
| Package Dimensions (W × H × D) | 231mm×203mm×51mm |
| Net Weight | 0.365kg |
| Packing List | 4G LTE Router × 1 Power Adapter × 1 Ethernet Cable × 1 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1 |
| Packing Method | Single pack |
| Working Temperatureක්රියාකාරී උෂ්ණත්වය | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidityක්රියාකාරී ආර්ද්රතාව | 10% to 90% RH non-condensing |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 5% to 90% RH non-condensing |
| Installation Mode | Desktop installation |
| Max. Power Consumption | ≤ 6 W |
| Gross Weight | 0.396 kg |
Wireless Parameter
| Max. Transmission Rate of Air Interface | 2.4 GHz: 300 Mbps |
|---|---|
| Wireless StandardWireless සම්මතය | IEEE 802.11b/g/n @2.4GHz |
| Working Frequency Band | 2.4 GHz |
| Transmitting Power | up to 20dBm |
| Wireless Performance | 2*2 MIMO supported |
| Receiving Sensitivity | -86±2dBm@N20-MCS0 -66±2dBm@N20-MCS7 -83±2dBm@N40-MCS0 -64±2dBm@N40-MCS7 -92±2dBm@B-1M -83±2dBm@B-11M -88±2dBm@G-6M -71±2dBm@G-54M |
| Antenna | 2 External 4G/3G Antennas 2 Internal Wi-Fi Antennas |
| Network Type | LTE CAT.4 |
| Mobile Standards | FDD LTE, TDD-LTE,WCDMA |
| Mobile Bands | FDD-LTE: B1/B3/B5/B7/B8/B20/B28AB TDD-LTE: B38/B40/B41 WCDMA: B1/B5/B8 |
| 4G Speed | DL: 150 Mbps, Upload: 50 Mbps |
Hardware Parameter
| Network Interfaceජාල සම්බන්ධකය | 2 × RJ45, 10/100 Mbps auto-negotiation 1 × Nano SIM Card Slot |
|---|---|
| LED Indicator | Internet LED*1 Wi-Fi LED*1 LAN LED*1 4G/3G Signal strength LED*3 |
| Reset | WPS/Reset button*1 |
| Power Supply Method | 9 VDC, 0.6 A power adapter power supply |
| Power Specifications | 9 VDC, 0.6 A |
Software Function / Software පහසුකම්
| Application Function | 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported DHCP Server supported Guest Network Configuration supported Signal Adjustment supported WiFi Schedule supported |
|---|---|
| Security Mode | WPA-PSK, WPA2-PSK, WPA and WPA2 supported |
| Security Mechanism | Hide SSID |
| Management Method | Web |
| Upgrade | Web |
| System Log | System log |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
