Product images are illustrative; appearance may vary.
Hikvision · WiFi Accesspoint Range Extender

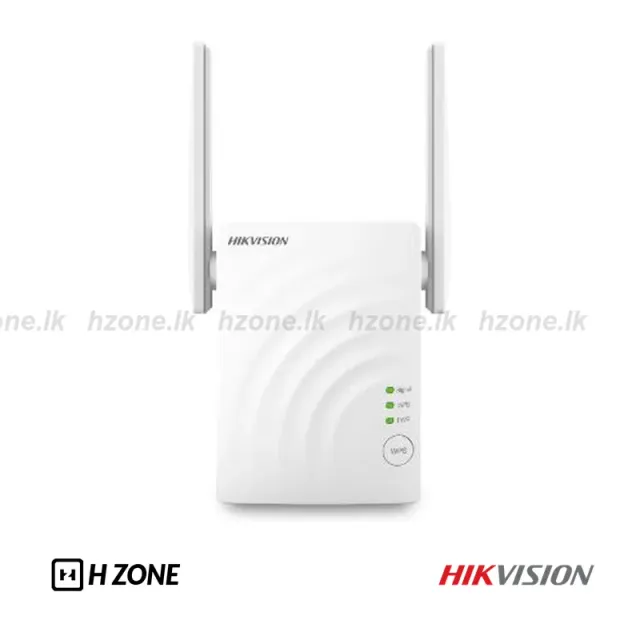

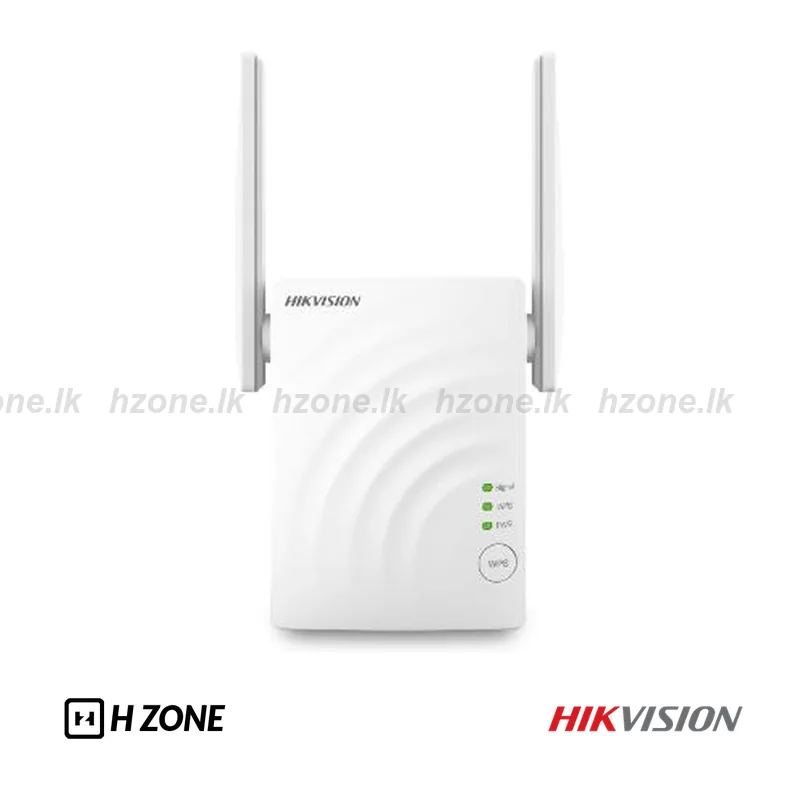

DS-3WRE12C(O-STD)/UK HIKVISION AC1200 Dual Band Wi-Fi Extender
Model: DS-3WRE12C
- Network Interface: 1*10/100Mbps RJ45ජාල සම්බන්ධකය: 1*10/100Mbps RJ45
- Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHzWireless සම්මතය: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
- Data Rate: ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbpsදත්ත වේගය: ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-3WRE12C is a networking device. Network Interface: 1*10/100Mbps RJ45. Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz. Data Rate: ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps.Hikvision DS-3WRE12C network සම්බන්ධතා උපකරණය. ජාල සම්බන්ධකය: 1*10/100Mbps RJ45. Wireless සම්මතය: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz. දත්ත වේගය: ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
General / සාමාන්ය
| Product Dimension (W × H × D) | 80mm×58mm×48mm |
|---|---|
| Package Dimension (W × H × D) | 95mm×98mm×120mm |
| Net Weight | 0.221 kg |
| Packing List | WiFi Repeater × 1 Power Adapter × 1 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1 |
| Packing Method | Single pack |
| Working Temperatureක්රියාකාරී උෂ්ණත්වය | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidityක්රියාකාරී ආර්ද්රතාව | 10% to 90% RH non-condensing |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 10% to 90% RH non-condensing |
| Max. Power Consumption | ≤ 5.2 W |
| Gross Weight | 0.243 kg |
Wireless Parameter
| Data Rateදත්ත වේගය | ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
|---|---|
| Wireless StandardWireless සම්මතය | IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz |
| Transmitting Power | 14 ± 1.5 dBm @ 2.4G-mcs7; 14 ± 1.5dBm @ 5G-mcs9 |
| Wireless Performance | 2*2 MIMO supported |
| Receiving Sensitivity | -63 dB@AC80 -MCS9 -89 dB@AC80 -MCS0 |
| Antenna | 2 * External 3dBi dual-band omni-directional antenna |
Hardware Parameter
| Network Interfaceජාල සම්බන්ධකය | 1*10/100Mbps RJ45 |
|---|---|
| LED Indicator | 1 * Signal LED 1 * WPS LED 1 * Power LED |
| Reset | 1 * WPS Button 1 * Reset Button |
| Power Supply Method | 9VDC, 0.8A, built-in |
Software Function / Software පහසුකම්
| Application function | Repeater Mode，Access Point Mode |
|---|---|
| Security Mode | Default encryption mode: Mix WPA-PSK/WPA2-PSK WPA algorithm: TKIP |
| Security Mechanism | Hide SSID |
| Management Method | Web |
| Upgrade | Web |
| System Log | Firmware upgrade, Restore factory settings, Login password, and Reboot |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
