Hikvision · UPS

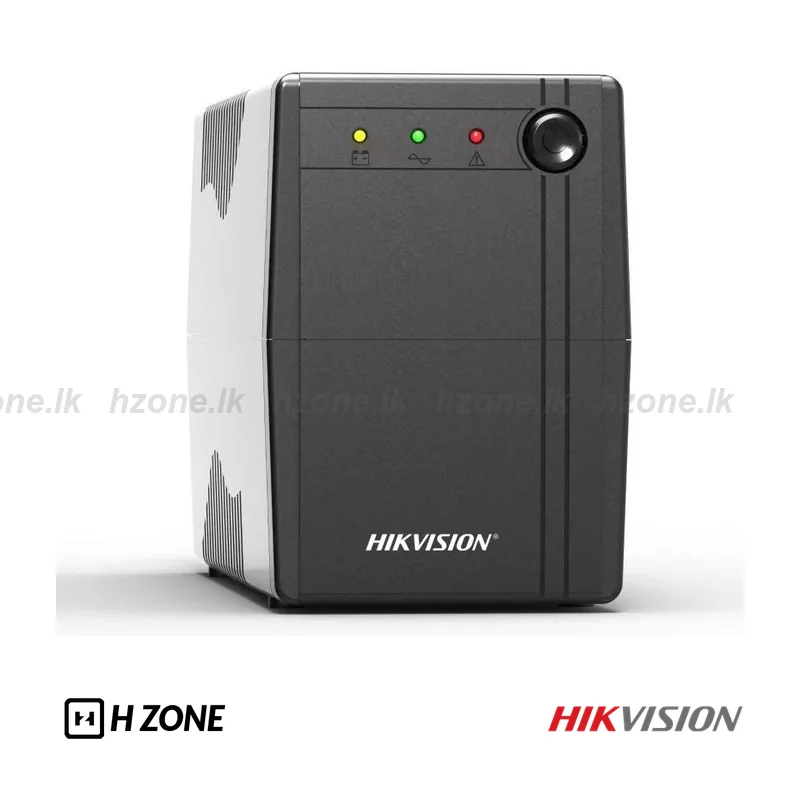

Hikvision DS-UPS1000 1000VA / 600W UPS
Model: DS-UPS1000
Product images are illustrative; appearance may vary.
2 Years Circuit · 1 Year Battery Warranty
Out of stock · Request to order
- 1000VA / 600W power backup1000VA / 600W power backup එකක්
- 12V / 9Ah lead-acid battery12V / 9Ah lead-acid battery එකක්
- Universal outlets with overload and surge protectionOverload සහ surge protection එක්ක universal outlets
- Circuit coverage: 2 years; battery coverage: 1 yearCircuit එකට අවුරුදු 2යි; battery එකට අවුරුද්දයි
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-UPS1000 provides 1000VA / 600W backup power, with a lead-acid battery and protection for suitable connected equipment.Hikvision DS-UPS1000 එක 1000VA / 600W power backup ලබාදෙන UPS එකක්. Lead-acid battery එකක් සහ ගැළපෙන devices වලට protection තියෙනවා.
Select against the total connected load. Backup duration varies with equipment consumption and battery condition.Connect කරන devices වල මුළු load එකට ගැළපෙන්න තෝරන්න. Backup කාලය devices වල power consumption එක සහ battery තත්ත්වය අනුව වෙනස් වෙනවා.
Specificationsතාක්ෂණික තොරතුරු
Protection / ආරක්ෂාව
| Full Protection | Surge protection, Overload protection, Discharge protection, Short circuit protection |
|---|
Output
| Output Frequency | 50/60 Hz ± 0.5 Hz self-adaptive |
|---|---|
| Output Voltage Range | 210 VAC to 235 VAC;110 VAC to 125 VAC |
| Transfer Time | ≤ 10 ms |
| Waveform | PWM |
| Outlet Type | Universal |
| Outlet Number | 2 |
Power / විදුලි සැපයුම
| UPS Capacity | 1000 VA / 600 W |
|---|
Input
| Input Voltage Range | 140 VAC to 290 VAC; 85 VAC to 150 VAC |
|---|---|
| Input Frequency | 50/60 Hz self-adaptive |
| Plug Type | UK TYPE G;Type B (NEMA 5-15);Schuko |
General / සාමාන්ය
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F） |
|---|---|
| Operating Humidity | 30% to 90% (non-condensing) |
| Dimensionමානයන් | 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47") |
| Weightබර | Approx. 5.4 kg (11.9 lb) |
Interface / සම්බන්ධක
| Communicate Ports | No |
|---|
Battery / බැටරිය
| Battery Type | 12 V/9 Ah, lead-acid battery |
|---|---|
| Recharge Time | 4-6 hours recover to 90% capacity |
| Typical Backup Time | Run time at 60w: 60 min Run time at 150w: 15 min Run time at 300w: 2 min |
Indicator
| Displayතිරය | LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow |
|---|---|
| Alarmඅනතුරු ඇඟවීම | Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding |
Seller coverage / H Zone වගකීම
| Circuit | 2 yearsCircuit එකට අවුරුදු 2යි |
|---|---|
| Battery | 1 yearBattery එකට අවුරුද්දයි |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
