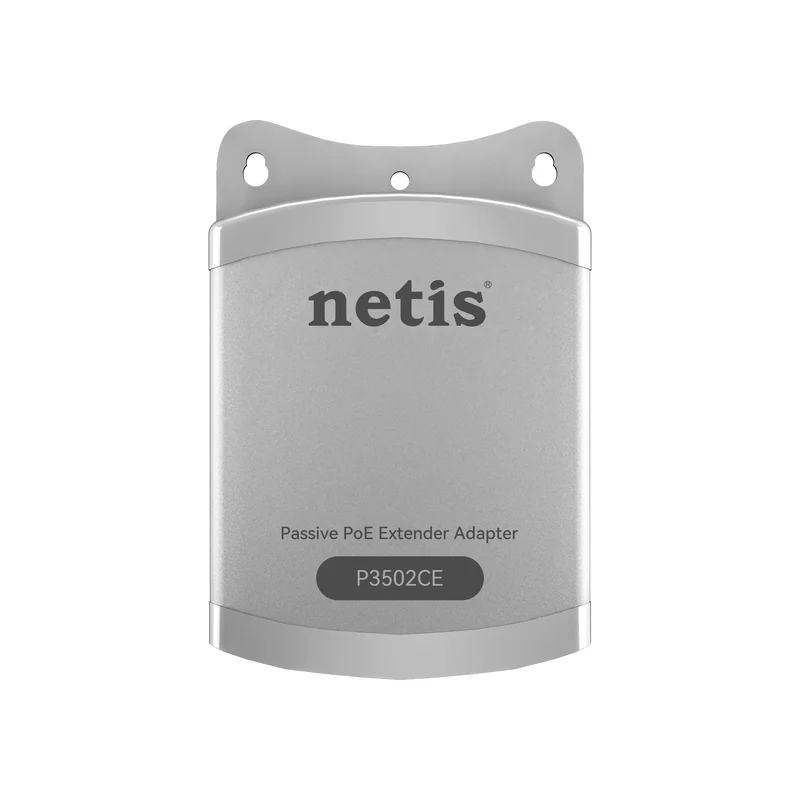

Netis · POE Extender
Model: P3502CE
Product images are illustrative; appearance may vary.
2 Years Warranty
Out of stock · Request to order
250m downstream at 10Mbps10Mbps සඳහා downstream 250m දක්වා
IP66 enclosureIP66 enclosure එක
1 input / 2 PoE outputsInput 1ක් / PoE outputs 2ක්
PoE-powered extenderPoE මඟින් power ලැබෙන extender
Selectable Extend modeExtend mode තෝරන්න පුළුවන්
30W maximum total inputමුළු power input එක 30W දක්වා
Standard / Extend switchStandard / Extend switch එක
Plug and playපහසුවෙන් connect කරන්න

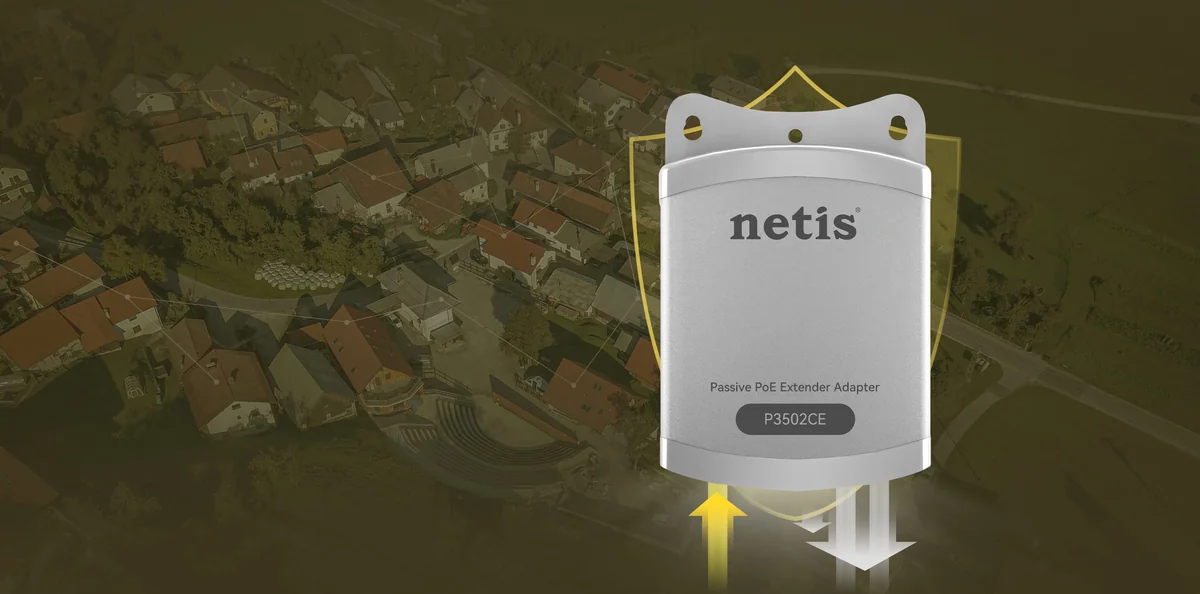

One incoming PoE/data link supplies two downstream 10/100Mbps PoE ports for compatible devices.එක incoming PoE / data link එකකින් ගැළපෙන devices සඳහා downstream 10/100Mbps PoE ports 2ක් ලබාගන්න පුළුවන්.

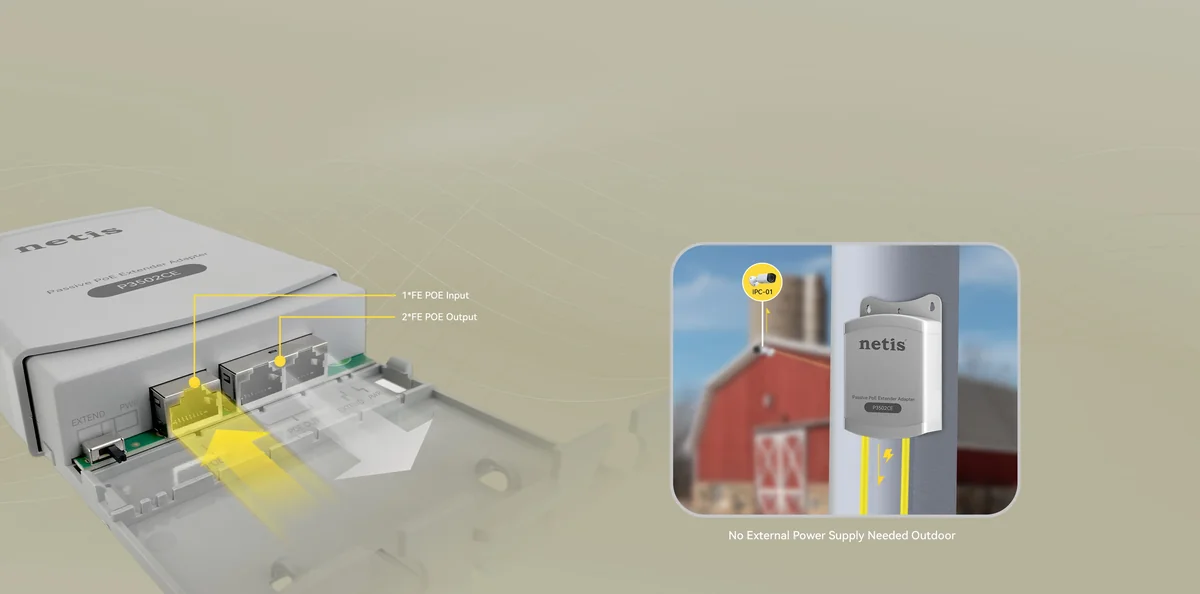

A compatible upstream IEEE 802.3at PoE source powers the extender. The maximum 30W input is shared by the extender and connected loads, with cable losses allowed for.ගැළපෙන upstream IEEE 802.3at PoE source එකකින් extender එකට power ලැබෙනවා. උපරිම 30W input budget එක extender එක සහ connected loads අතර බෙදෙන නිසා cable losses එකත් බලලා සැලසුම් කරන්න.

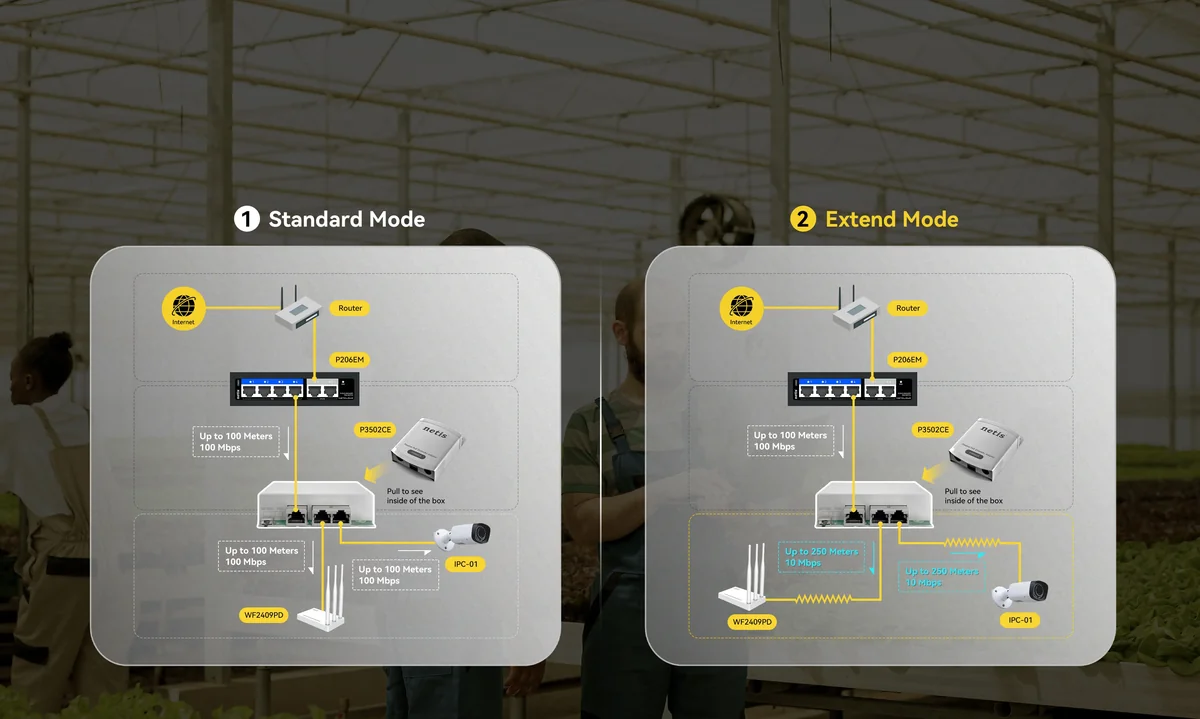

Standard downstream links reach up to 100m at 100Mbps; Extend mode reaches up to 250m at 10Mbps. The official 350m route example combines a 100m upstream segment with a 250m downstream segment. Use Cat5e or better cable.Standard downstream link එක 100Mbps සඳහා 100m දක්වාත්, Extend mode එක 10Mbps සඳහා 250m දක්වාත් සඳහන් කරනවා. Official 350m route example එක 100m upstream සහ 250m downstream segments දෙකේ එකතුවයි. Cat5e හෝ ඊට හොඳ cable භාවිත කරන්න.
The manufacturer illustrates installations at farms, villages, orchards and construction sites. Match the cable route and power budget to the connected devices.Manufacturer farms, villages, orchards සහ construction sites වල භාවිතය පෙන්වනවා. Cable route එක සහ power budget එක connected devices වලට ගැළපෙන්න තෝරන්න.

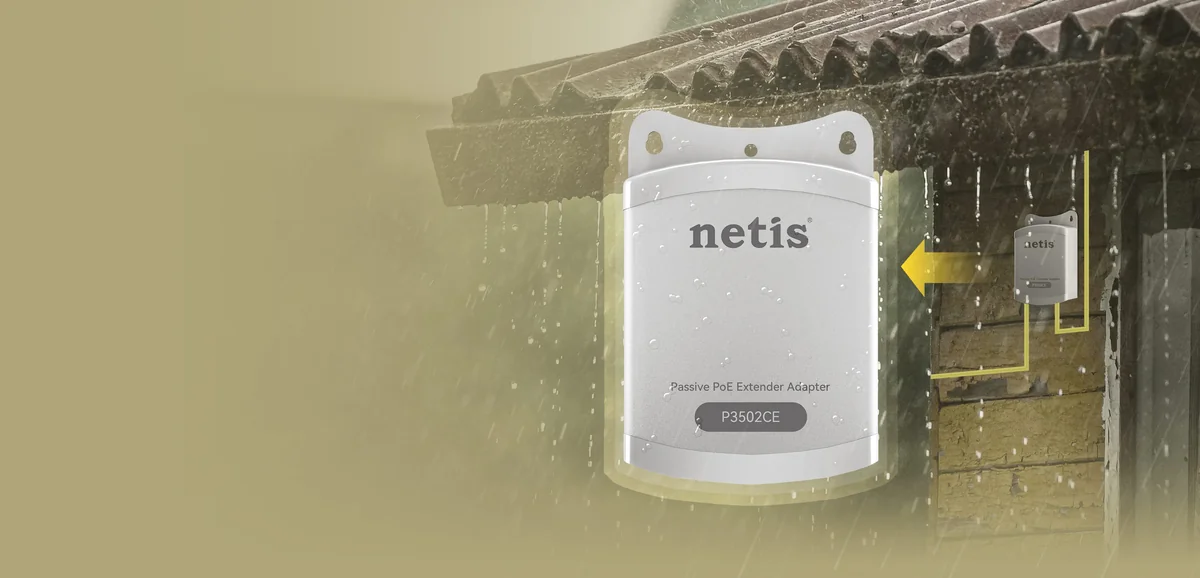

The IP66-rated enclosure suits a correctly fitted outdoor installation with properly sealed cable entries.IP66-rated enclosure එක හරියට fit කරලා cable entries seal කරපු outdoor installation එකකට ගැළපෙනවා.

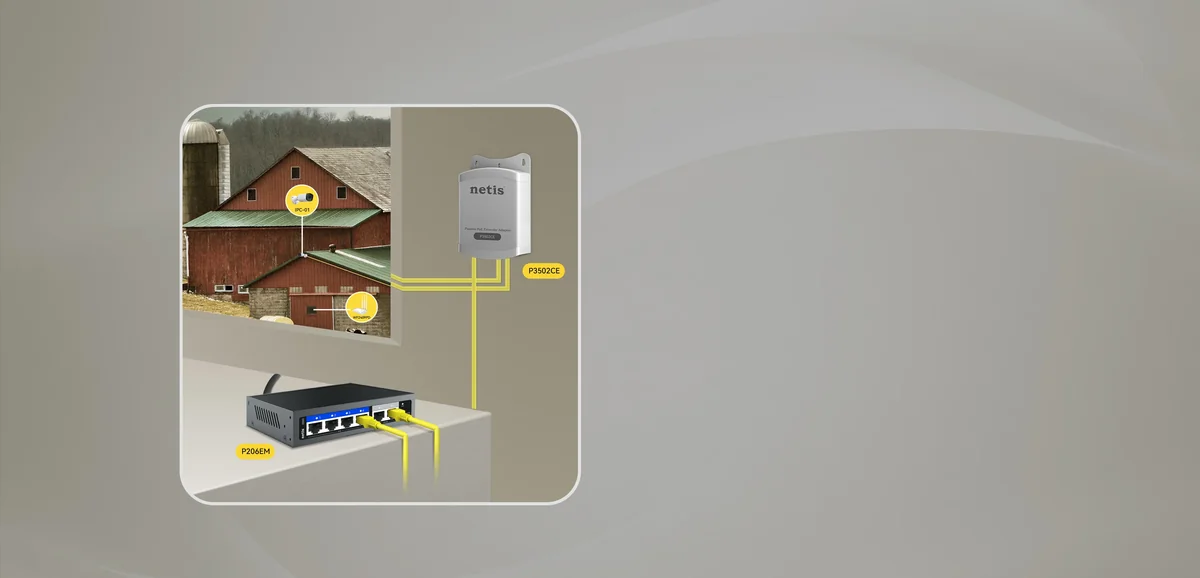

Select OFF for standard mode or ON for Extend mode, then connect compatible PoE devices.Standard mode සඳහා OFF හෝ Extend mode සඳහා ON තෝරලා ගැළපෙන PoE devices connect කරන්න.

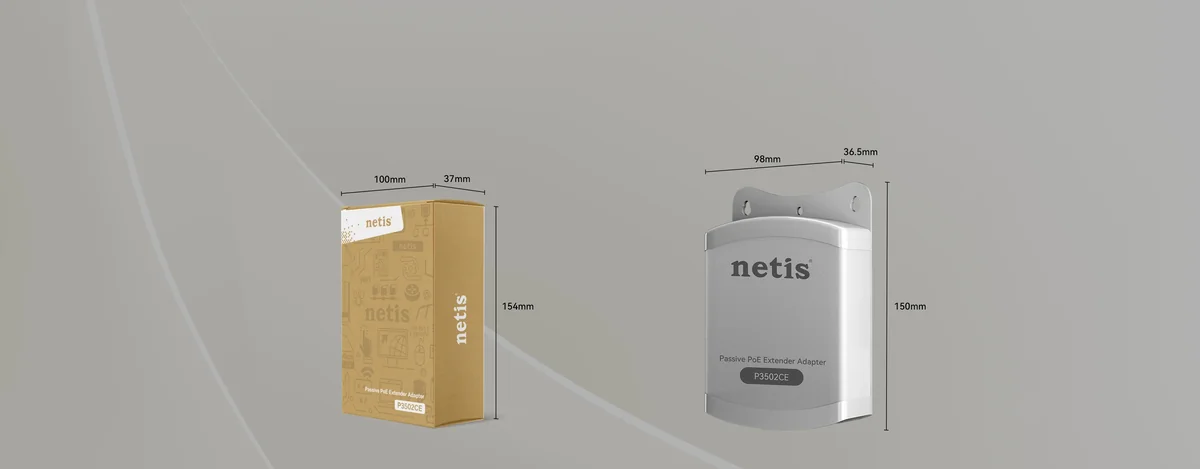

Manufacturer packaging reference. HZone can confirm the local box contents before ordering.Manufacturer packaging reference එකක්. Order කරන්න කලින් local box එකේ දෙන දේවල් HZone එක්ක confirm කරගන්න පුළුවන්.
The Netis P3502CE extends a powered Ethernet link into two downstream 10/100Mbps PoE connections. Its IP66 enclosure suits correctly fitted outdoor installations with compatible IEEE 802.3af/at powered devices.Netis P3502CE එකෙන් powered Ethernet link එකක් downstream 10/100Mbps PoE connections 2කට බෙදාගන්න පුළුවන්. IP66 enclosure එක හරියට fit කරපු outdoor installation එකක ගැළපෙන IEEE 802.3af/at devices එක්ක භාවිත කරන්න පුළුවන්.
A compatible upstream IEEE 802.3at source powers the extender through the network cable. The maximum 30W input is shared by the extender and its connected loads; allow for cable losses when planning the power budget.ගැළපෙන upstream IEEE 802.3at source එකකින් network cable එක හරහා extender එකට power ලැබෙනවා. උපරිම 30W input එක extender එක සහ connected loads අතර බෙදෙන නිසා power budget එක සැලසුම් කරද්දී cable losses එකත් බලන්න.
OFF selects standard mode, with up to 100m downstream at 100Mbps. ON selects Extend mode, with up to 250m downstream at 10Mbps. The official 350m route example combines 100m upstream and 250m downstream segments. Use Cat5e or better UTP/STP cable.OFF තෝරන්නේ standard mode එකට; downstream 100Mbps සඳහා 100m දක්වායි. ON තෝරන්නේ Extend mode එකට; downstream 10Mbps සඳහා 250m දක්වායි. Official 350m route example එක 100m upstream සහ 250m downstream segments දෙකේ එකතුවයි. Cat5e හෝ ඊට හොඳ UTP/STP cable භාවිත කරන්න.
The official datasheet dimensions are 151 × 98 × 36mm. Fit the enclosure and cable entries correctly for the outdoor location. Manufacturer packaging images are references; confirm local box contents with HZone.Official datasheet අනුව size එක 151 × 98 × 36mmයි. Outdoor location එකට ගැළපෙන්න enclosure එක සහ cable entries හරියට fit කරන්න. Manufacturer packaging images references විදිහට දාලා තියෙන්නේ; local box contents HZone එක්ක confirm කරගන්න.
Sold per Nos — one unit.Nos — එක unit එකක් විදිහට විකුණනවා.
2 Years Warrantyවසර 2ක වගකීමක්
| Model | P3502CEP3502CE model එක |
|---|---|
| Input port | 1 × 10/100Mbps PoE/data RJ4510/100Mbps PoE / data RJ45 input port 1ක් |
| Output ports | 2 × 10/100Mbps PoE RJ4510/100Mbps PoE RJ45 output ports 2ක් |
| Input power | IEEE 802.3at; 30W maximum total inputIEEE 802.3at; මුළු input power එක 30W දක්වා |
| Compatible powered devices | IEEE 802.3af/at PDsIEEE 802.3af/at support කරන powered devices |
| Output-power boundary | Maximum 30W input shared by the extender and both outputs, allowing for cable lossesඋපරිම 30W input budget එක cable losses බලලා extender එක සහ outputs දෙක අතර බෙදාගන්නවා |
| Standards | IEEE 802.3 / 802.3i / 802.3u / 802.3af / 802.3at / 802.3xIEEE 802.3 / 802.3i / 802.3u / 802.3af / 802.3at / 802.3x |
| Link rates | 10/100Mbps; half / full duplex10/100Mbps; half / full duplex support |
|---|---|
| Switching capacity | 0.6Gbps0.6Gbps switching capacity |
| MAC table | 2K; automatic learning and ageing2K MAC table; auto learning සහ ageing |
| Forwarding | Store and forward; wire-speed forwardingStore-and-forward සහ wire-speed forwarding |
| Flow control | IEEE 802.3x full duplex; back pressure half duplexFull duplex සඳහා IEEE 802.3x; half duplex සඳහා back pressure |
| Crossover | Auto MDI/MDI-XAuto MDI/MDI-X support |
| Mode selector | OFF = standard; ON = ExtendOFF = Standard; ON = Extend |
| Cable | Cat5e or better UTP/STPCat5e හෝ ඊට හොඳ UTP/STP cable |
|---|---|
| Standard downstream | Up to 100m at 100Mbps100Mbps සඳහා 100m දක්වා |
| Extended downstream | Up to 250m at 10Mbps10Mbps සඳහා 250m දක්වා |
| Official350m example | Two-segment route: 100m upstream at 100Mbps + 250m downstream at 10MbpsSegments දෙකක route එකක්: 100Mbps upstream 100m + 10Mbps downstream 250m |
| Enclosure | IP66; outdoor box with mounting/hanging tabsIP66 outdoor box එකක්; mounting / hanging tabs තියෙනවා |
|---|---|
| Dimensions L × W × H | 151 × 98 × 36mm, official datasheetOfficial datasheet අනුව 151 × 98 × 36mm |
| Operating temperature | 0–40°Cභාවිත කරන විට 0–40°C |
| Operating humidity | 10–90% RH, non-condensing10–90% RH; condensation නැතිව |
| Storage temperature | −20–70°C, conservative datasheet rangeDatasheet අනුව store කරන විට −20–70°C |
| Storage humidity | 5–90% RH, non-condensing5–90% RH; condensation නැතිව |
| Brand | NetisNetis Brand එක |
|---|---|
| Selling unit | Nos — one unitNos — එක unit එකක් |
| 2 Years Warrantyවසර 2ක වගකීමක් |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
