Product images are illustrative; appearance may vary.
Hikvision · Fingerprint

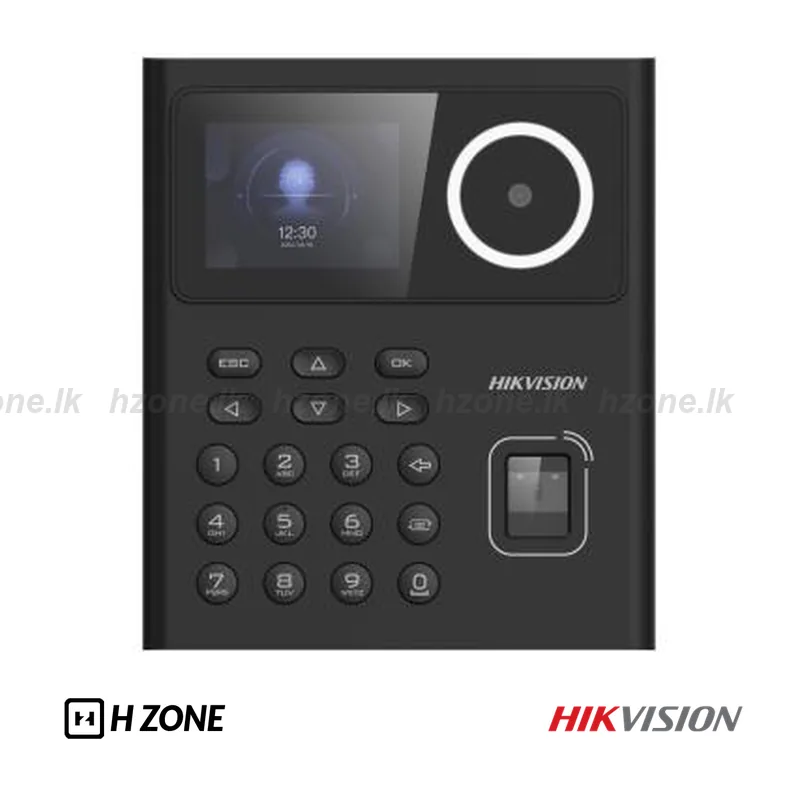

DS-K1T320MFWX-B Value Series Face Access Terminal
Model: DS-K1T320MFWX-B
- Resolution: 320 × 240විභේදනය: 320 × 240
- Screen size: 2.4 inchතිරයේ ප්‍රමාණය: 2.4 inch
- Fingerprint capacity: 1,000Fingerprint capacity: 1,000
- Card capacity: 1,000Card capacity: 1,000
- Face capacity: 500Face capacity: 500
- Network interface: 1 RJ-45, 10/100 M self-adaptiveජාල සම්බන්ධකය: 1 RJ-45, 10/100 M self-adaptive
- Power supply: 12 VDC Supports power supply by battery in the bracketවිදුලි සැපයුම: 12 VDC Supports power supply by battery in the bracket
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-K1T320MFWX-B is a access or attendance terminal. Resolution: 320 × 240. Screen size: 2.4 inch. Fingerprint capacity: 1,000.Hikvision DS-K1T320MFWX-B access හෝ attendance terminal එක. විභේදනය: 320 × 240. තිරයේ ප්‍රමාණය: 2.4 inch. Fingerprint capacity: 1,000.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්‍ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
System
| Operating system | Linux |
|---|
Display / තිරය
| Screen sizeතිරයේ ප්‍රමාණය | 2.4 inch |
|---|---|
| Type | LCD |
| Resolutionවිභේදනය | 320 × 240 |
Video / වීඩියෝ
| Lensකාචය | 1 |
|---|---|
| Video compression standard | PAL (Default) and NTSC |
| Resolutionවිභේදනය | 2 MP (video stream: 720P) |
Audio / ශබ්දය
| Audio outputශබ්ද ප්‍රතිදානය | Built-in buzzer |
|---|
Network / ජාලය
| Wired network | Support |
|---|---|
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
Interface / සම්බන්ධක
| Network interfaceජාල සම්බන්ධකය | 1 RJ-45, 10/100 M self-adaptive |
|---|---|
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
Capacity / ධාරිතාව
| Face capacity | 500 |
|---|---|
| Fingerprint capacity | 1,000 |
| Card capacity | 1,000 |
| Event capacity | 100,000 |
Authentication
| Face recognition distance | 0.3 m ~ 1.5 m |
|---|---|
| Face recognition accuracy rate | > 99% |
| Face recognition duration | < 0.2 s |
| Card typeCard වර්ගය | M1 card |
General / සාමාන්‍ය
| Built-in access controller | Support |
|---|---|
| Power supplyවිදුලි සැපයුම | 12 VDC Supports power supply by battery in the bracket |
| Power consumptionවිදුලි පරිභෝජනය | ≤ 6 W |
| Working temperatureක්‍රියාකාරී උෂ්ණත්වය | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidityක්‍රියාකාරී ආර්ද්‍රතාව | 0 to 90% (No condensing) |
| Languageභාෂාව | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek. |
Function
| Face anti-spoofing | Support |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
