Product images are illustrative; appearance may vary.
Hikvision · Fingerprint

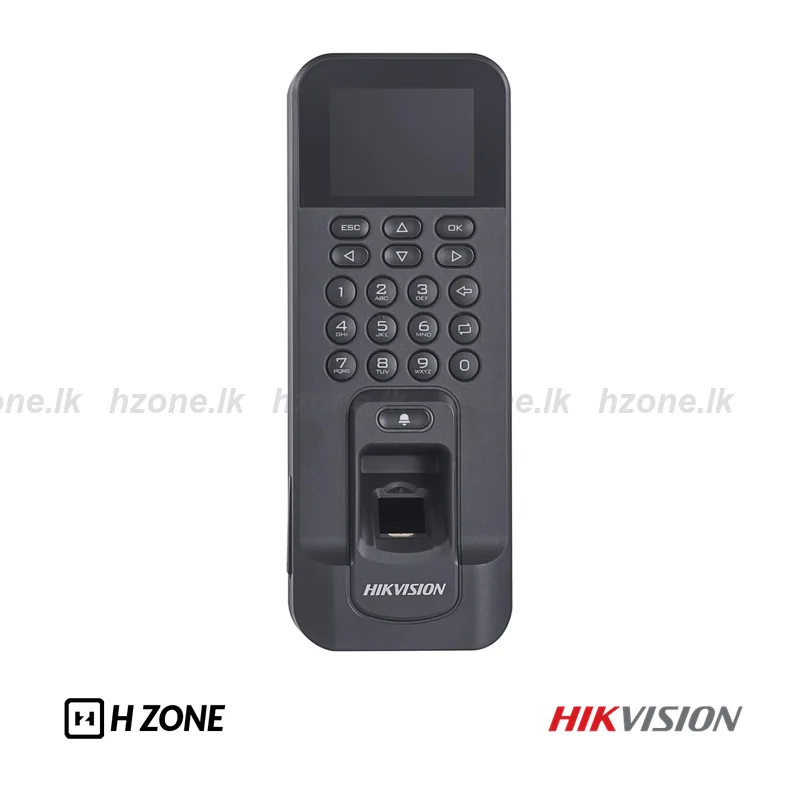

DS-K1T804BMF Pro Series Fingerprint Terminal
Model: DS-K1T80BMF
- Resolution: 320 × 240විභේදනය: 320 × 240
- Fingerprint capacity: 3000Fingerprint capacity: 3000
- Card capacity: 3000Card capacity: 3000
- Network interface: 1ජාල සම්බන්ධකය: 1
- Power supply: 12 VDC/1 Aවිදුලි සැපයුම: 12 VDC/1 A
- Audio output: 1 loudspeaker, 1 buzzerශබ්ද ප්‍රතිදානය: 1 loudspeaker, 1 buzzer
- Wi-Fi: SupportWi-Fi: Support
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-K1T804BMF is a access or attendance terminal. Resolution: 320 × 240. Fingerprint capacity: 3000. Card capacity: 3000.Hikvision DS-K1T804BMF access හෝ attendance terminal එක. විභේදනය: 320 × 240. Fingerprint capacity: 3000. Card capacity: 3000.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්‍ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
System
| Operation system | Linux |
|---|
Display / තිරය
| Size | 2.4-inch |
|---|---|
| Resolutionවිභේදනය | 320 × 240 |
| Type | LCD-TFT display screen |
Audio / ශබ්දය
| Audio outputශබ්ද ප්‍රතිදානය | 1 loudspeaker, 1 buzzer |
|---|
Network / ජාලය
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
|---|---|
| Wi-Fi | Support |
Interface / සම්බන්ධක
| Network interfaceජාල සම්බන්ධකය | 1 |
|---|---|
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| IO input | 1 |
| IO output | 1 |
| TAMPER | 1 |
| USB | 1 |
Capacity / ධාරිතාව
| Card capacity | 3000 |
|---|---|
| Fingerprint capacity | 3000 |
| Event capacity | 100,000 |
Authentication
| Card typeCard වර්ගය | M1 card |
|---|---|
| Card reading distance | 0 to 4.5 cm |
| Card reading duration | ＜ 1 s |
| Fingerprint moduleඇඟිලි සලකුණු සංවේදකය | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | ＜ 1 s |
| Fingerprint False Acceptance Rate (FAR) | ≤ 0.001 % |
| Fingerprint False Rejection Rate (FRR) | ≤ 0.01 % |
General / සාමාන්‍ය
| Indicator | Power/status (red/green) |
|---|---|
| Power supplyවිදුලි සැපයුම | 12 VDC/1 A |
| Working temperatureක්‍රියාකාරී උෂ්ණත්වය | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidityක්‍රියාකාරී ආර්ද්‍රතාව | 10% to 90% (no condensing) |
| Dimensions | 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46") |
| Installation | Surface mounting |
| Languageභාෂාව | English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
