Hikvision · Door Phone

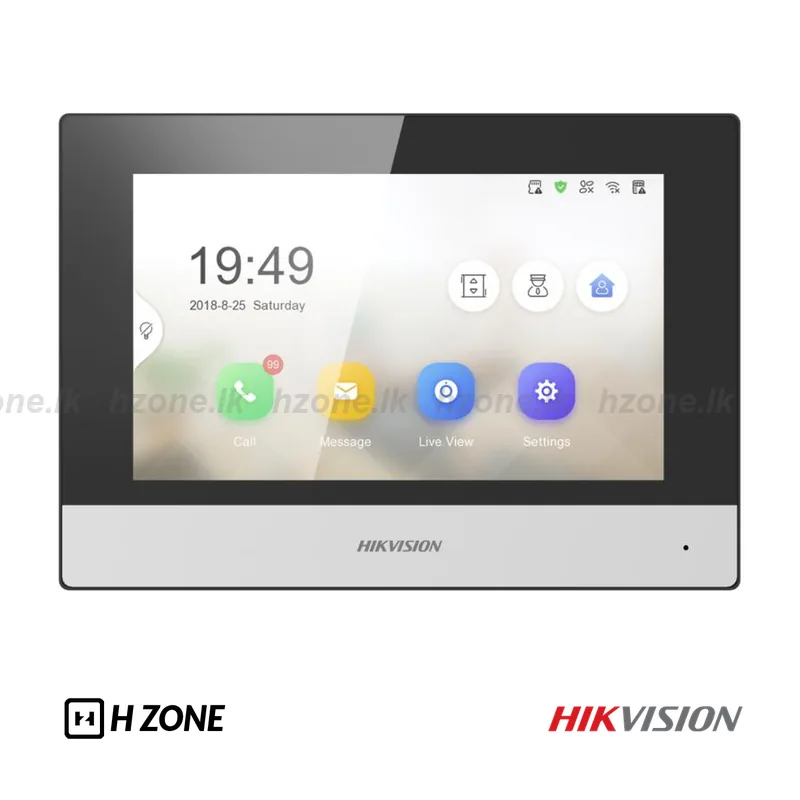

DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station
Model: DS-KH6320-WTE1
- Resolution: 1024 × 600විභේදනය: 1024 × 600
- Screen size: 7-inchතිරයේ ප්‍රමාණය: 7-inch
- Network interface: 1 RJ-45 10/100 Mbps self-adaptiveජාල සම්බන්ධකය: 1 RJ-45 10/100 Mbps self-adaptive
- Operation method: Capacitive touch screenභාවිත කරන ක්‍රමය: Capacitive touch screen
- Audio input: 1 built-in omnidirectional microphoneශබ්ද ආදානය: 1 built-in omnidirectional microphone
- Audio output: 1 built-in loudspeakerශබ්ද ප්‍රතිදානය: 1 built-in loudspeaker
- Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11nWi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-KH6320-WTE1 is a indoor intercom station. Resolution: 1024 × 600. Screen size: 7-inch. Network interface: 1 RJ-45 10/100 Mbps self-adaptive.Hikvision DS-KH6320-WTE1 ගෘහස්ථ intercom ඒකකය. විභේදනය: 1024 × 600. තිරයේ ප්‍රමාණය: 7-inch. ජාල සම්බන්ධකය: 1 RJ-45 10/100 Mbps self-adaptive.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්‍ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
System parameters
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
Display parameters
| Screen sizeතිරයේ ප්‍රමාණය | 7-inch |
|---|---|
| Operation methodභාවිත කරන ක්‍රමය | Capacitive touch screen |
| Type | Colorful TFT |
| Resolutionවිභේදනය | 1024 × 600 |
Video parameters
| Lensකාචය | / |
|---|---|
| Resolutionවිභේදනය | / |
| FOV | / |
| Wide dynamic range (WDR)පුළුල් ගතික පරාසය | / |
| Video compression standard | / |
| Focal length | / |
Audio parameters
| Audio inputශබ්ද ආදානය | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U、G.711 A、G.722.1 |
| Audio outputශබ්ද ප්‍රතිදානය | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Capacity / ධාරිතාව
| Message capacity | TF card inser ted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Linked network camera capacity | 16 |
Network parameters
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
Device interfaces
| Alarm input | 8 |
|---|---|
| Network interfaceජාල සම්බන්ධකය | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 RS-485 (Half duplex) |
| USB | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 relays, Max. 30 VDC 0.3 A |
General / සාමාන්‍ය
| Button | / |
|---|---|
| Installation | Surface mounting |
| Indicator | / |
| Weightබර | Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb) |
| Protective level | / |
| Working temperatureක්‍රියාකාරී උෂ්ණත්වය | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidityක්‍රියාකාරී ආර්ද්‍රතාව | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| Batteryබැටරිය | / |
| Application environment | Indoor |
| Power consumptionවිදුලි පරිභෝජනය | ≤ 5 W |
| Languageභාෂාව | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
