Ezviz · Door Phone
Model: CS-HP5-R100-1W2TFC
Product images are illustrative; appearance may vary.
24 Months Warranty
Out of stock · Request to order

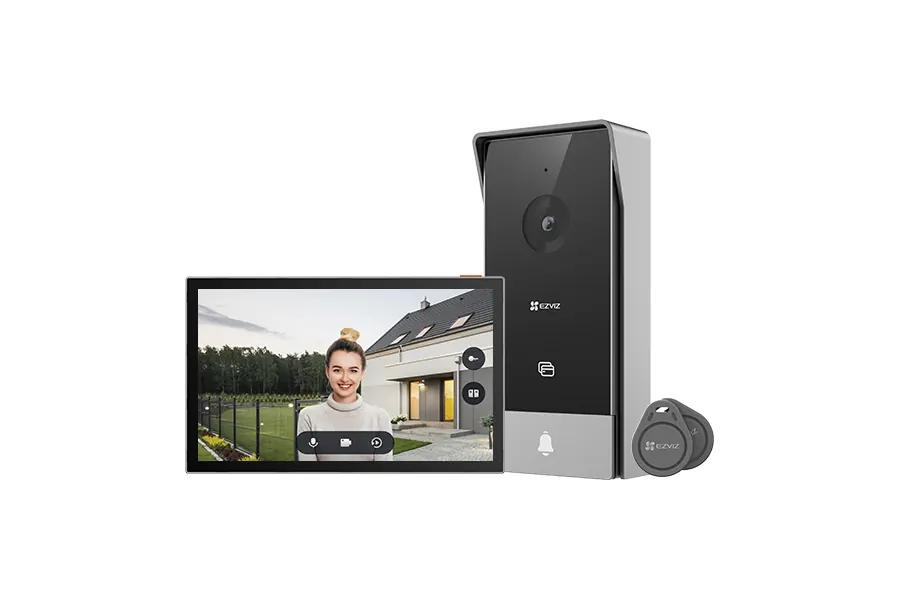

1080p Full HD outdoor doorphone videoOutdoor doorphone එකෙන් 1080p Full HD video
Two-wire digital intercom connectionTwo-wire digital intercom connection එකක්
RFID, monitor and app unlocking controlsRFID, monitor සහ app unlocking controls
1080p Full HD outdoor doorphone video. Check the entrance layout and required connections with H Zone.Outdoor doorphone එකෙන් 1080p Full HD video. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
7-inch touch monitor. Check the entrance layout and required connections with H Zone.7-inch touch monitor එකක්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
RFID, monitor and app unlocking controls. Check the entrance layout and required connections with H Zone.RFID, monitor සහ app unlocking controls. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.

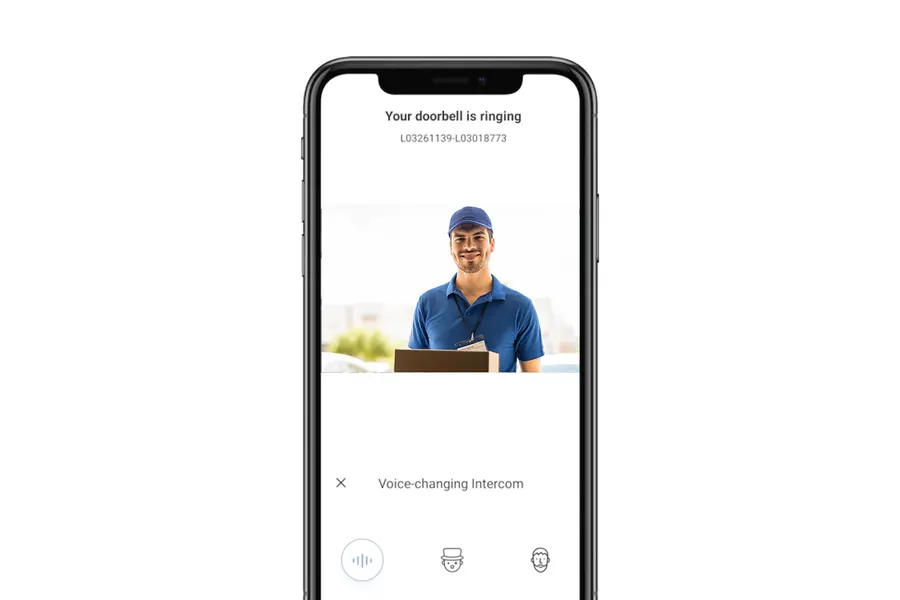

Two-way talk through the EZVIZ app. Check the entrance layout and required connections with H Zone.EZVIZ app එකෙන් අහන්නත් කතා කරන්නත් පුළුවන්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Dual-band 2.4GHz / 5GHz Wi-Fi at the indoor monitor. Check the entrance layout and required connections with H Zone.Indoor monitor එකට 2.4GHz / 5GHz dual-band Wi-Fi. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
See and speak to visitors from a 7-inch indoor screen or the EZVIZ app. HP5 uses a wired doorphone-to-monitor connection and supports suitable electric door/gate controls.7-inch indoor screen එකෙන් හෝ EZVIZ app එකෙන් visitors බලන්නත් කතා කරන්නත් පුළුවන්. HP5 එකේ doorphone-to-monitor connection එක wired; ගැළපෙන electric door/gate controls support කරනවා.
Check cable distances, cable type and electric strike/gate electrical compatibility before installation.Install කරන්න කලින් cable distance, cable type සහ electric strike/gate compatibility check කරන්න.
Local memory cards are separate purchases. Where supported, CloudPlay requires a paid subscription and regional availability.Local memory cards වෙනම ගන්න ඕන. Support වෙන models වල CloudPlay එකට paid subscription එකක් ඕන; region එකටත් support වෙන්න ඕන.
Warranty: 24 Months.Warranty: මාස 24යි වගකීමක්.
Contact H Zone, Panadura, for current price, availability, setup guidance and delivery rates within Sri Lanka.Current price, availability, setup support සහ Sri Lanka delivery rates සඳහා H Zone Panadura අමතන්න.
| Sales model | CS-HP5-R100-1W2TFC |
|---|---|

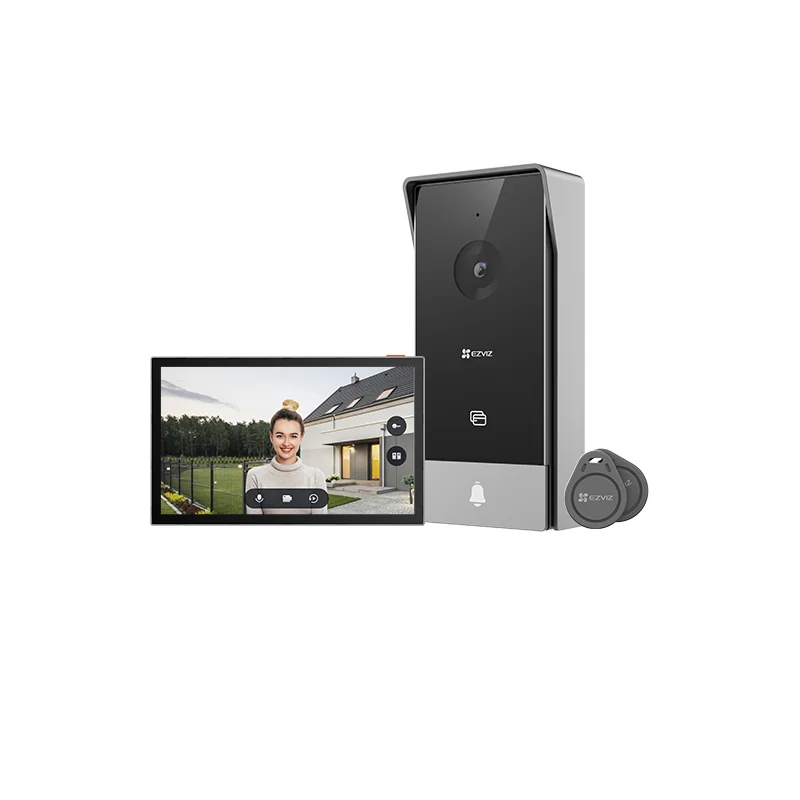

| Product | EZVIZ HP5 1080p Smart Video Doorphone |
| Brand | EZVIZ |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|---|---|

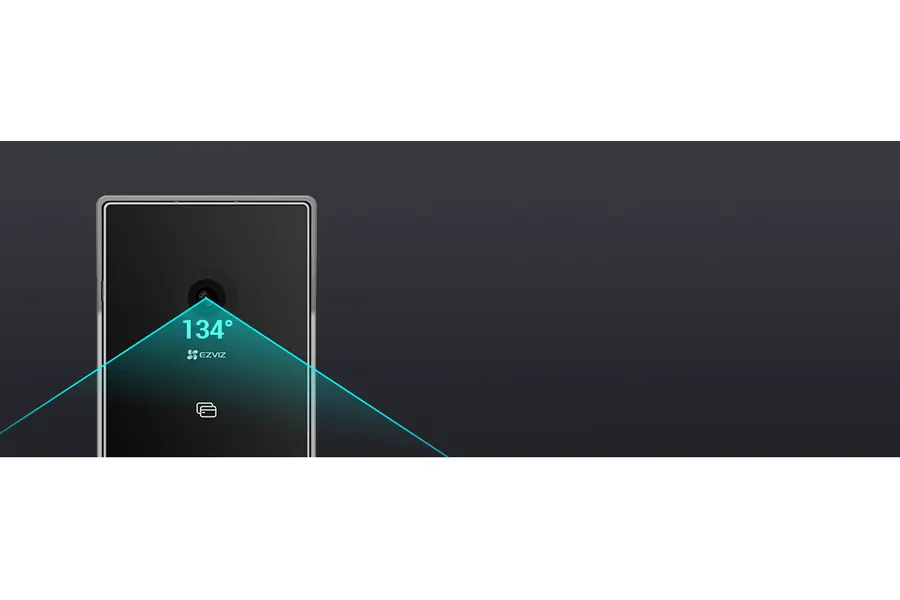

| Lens | 2.0 mm @ F1.6,viewing angle: 134° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 1920 × 1080 (1080p) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
|---|---|
| Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a "dry"-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock |
| Audio Input | Built-in high-sensitivity microphone |
|---|---|
| Audio Output | Built-in high-power speaker |
| Doorbell Button | 1 doorbell button (Can be set to become illuminated or not). |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Tamper Alarm | Supports |
|---|---|
| Video Intercom | Long-distance video two-way talk |
| Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
|---|---|
| IP Grade | Waterproof, with shield cover |
| Size | 153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch) |
| Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply | DC 24V 1.5A power supply, adaptor (100-240Vac) |
| Power Consumption | 8W, Max. 24W |
| Display size | 7” touch screen |
|---|---|
| Resolution | 1024 × 600 |
| Audio Input | Built-in high-sensitivity microphone |
|---|---|
| Audio Output | Built-in high-power speaker |
| Button | Screen On / Off Button |
| Terminal | Two wiring ports to connect 1st outdoor doorbell. |
| Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
|---|---|
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
|---|---|
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Multiple ringtones | Up to 20 ringtones |
|---|---|
| Functions | Live view, playback, two-way talk, video call |
| Net Weight | 639g (22.54oz) |
|---|---|
| With Package | 1505g (53.09 oz) |
| Certifications | CE / REACH / WEEE / RoHS |
|---|
| Included | Monitor; Wall Bracket for Monitor; Power Adapter for Monitor; Intercom Panel; Drill Template for Monitor; Drill Template for Intercom Panel; Name Card (×2); Screwdriver; Badges (×2); Screw Kit (×2); Wires and Wire Connectors; DC 24V Power Supply Jack Connector Cable; Regulatory Information (×2); Quick Start Guide |
|---|
| Seller warranty | 24 Months Warranty |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
