Ezviz · Door Phone
Model: CS-HP7-R110-2W2TFC(3MP, 2-Entry Kit)
Product images are illustrative; appearance may vary.
3 Years Warranty
In stock

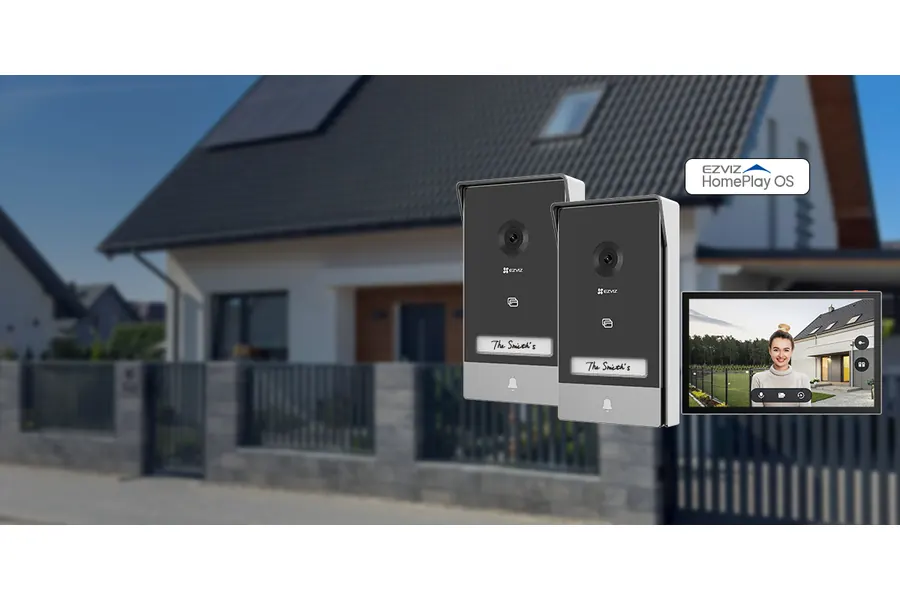

Two outdoor 2K doorphone panels includedOutdoor 2K doorphone panels දෙකක් kit එකට ඇතුළත්
Separate controls for two entrancesEntrances දෙකට වෙන වෙනම controls
Two-wire digital connectionsTwo-wire digital connections

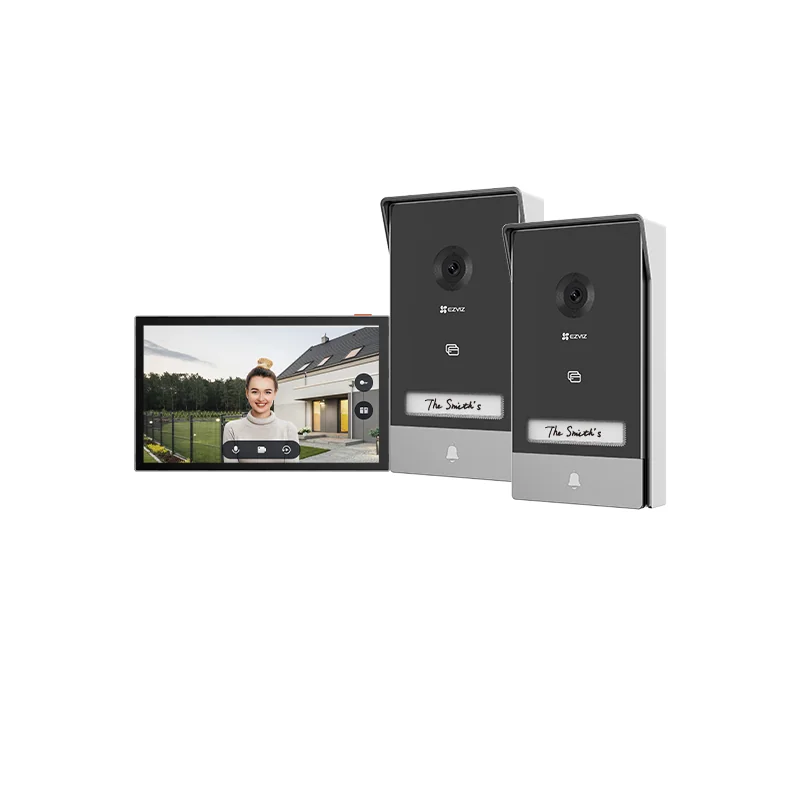

EZVIZ HP7 2-Entry Kit 2K Video Doorphone
Outdoor 2K doorphone panels දෙකක් kit එකට ඇතුළත්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Outdoor 2K doorphone panels දෙකක් kit එකට ඇතුළත්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Two outdoor 2K doorphone panels included. Check the entrance layout and required connections with H Zone.Outdoor 2K doorphone panels දෙකක් kit එකට ඇතුළත්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.

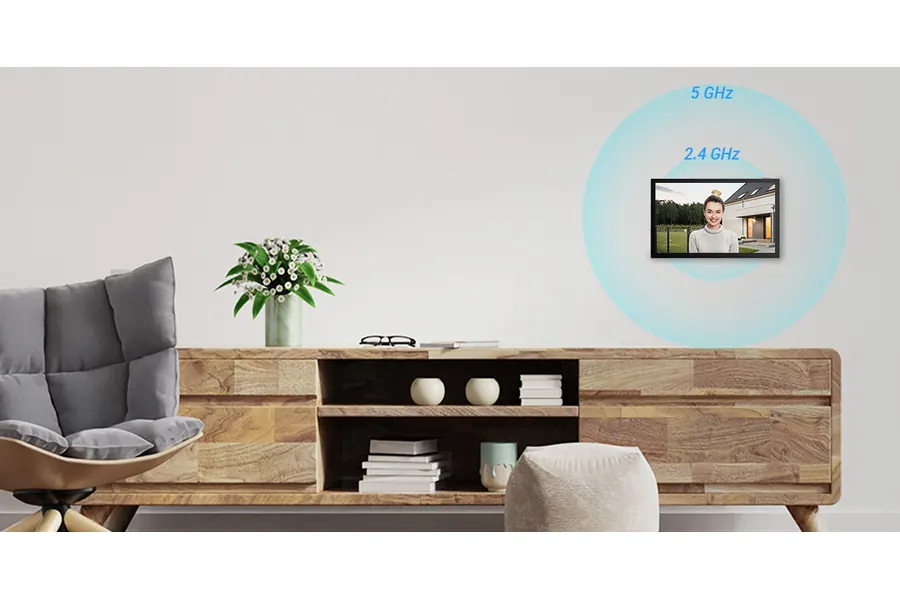

7-inch colour touch monitor එකක්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
One 7-inch colour touch monitor. Check the entrance layout and required connections with H Zone.7-inch colour touch monitor එකක්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Entrances දෙකට වෙන වෙනම controls. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Separate controls for two entrances. Check the entrance layout and required connections with H Zone.Entrances දෙකට වෙන වෙනම controls. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
EZVIZ app එකෙන් අහන්නත් කතා කරන්නත් පුළුවන්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Two-way talk through the EZVIZ app. Check the entrance layout and required connections with H Zone.EZVIZ app එකෙන් අහන්නත් කතා කරන්නත් පුළුවන්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
Two outdoor 2K doorphone panels included. Check the entrance layout and required connections with H Zone.Outdoor 2K doorphone panels දෙකක් kit එකට ඇතුළත්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
View full manufacturer illustration ↗Original manufacturer references may show related models or example installations. Use this item’s specifications and confirm exact model compatibility, required accessories and setup with H Zone.
One 7-inch colour touch monitor. Check the entrance layout and required connections with H Zone.7-inch colour touch monitor එකක්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
View full manufacturer illustration ↗Original manufacturer references may show related models or example installations. Use this item’s specifications and confirm exact model compatibility, required accessories and setup with H Zone.
Separate controls for two entrances. Check the entrance layout and required connections with H Zone.Entrances දෙකට වෙන වෙනම controls. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
View full manufacturer illustration ↗Original manufacturer references may show related models or example installations. Use this item’s specifications and confirm exact model compatibility, required accessories and setup with H Zone.

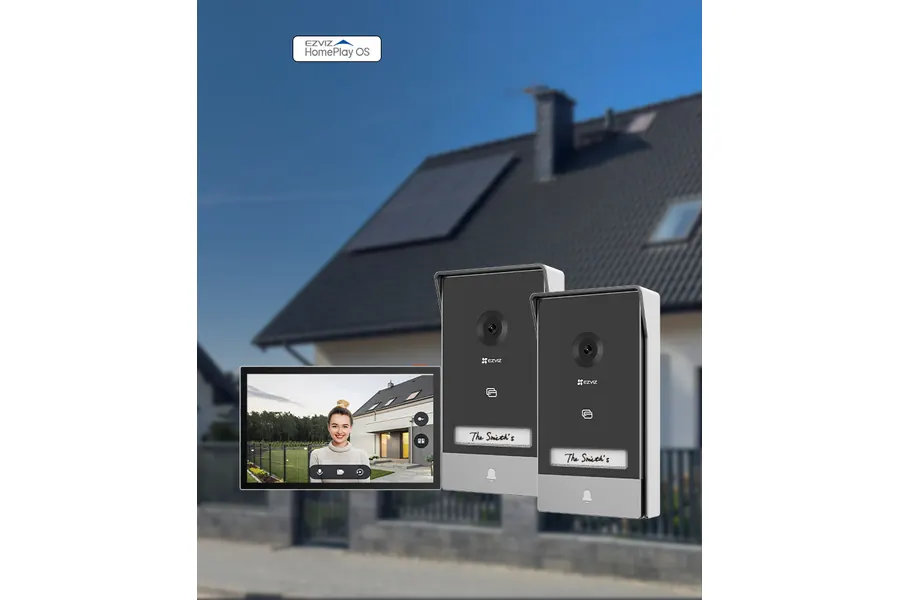

Two-wire digital connections. Check the entrance layout and required connections with H Zone.Two-wire digital connections. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
View full manufacturer illustration ↗Original manufacturer references may show related models or example installations. Use this item’s specifications and confirm exact model compatibility, required accessories and setup with H Zone.
RFID, QR, app and monitor unlocking options. Check the entrance layout and required connections with H Zone.RFID, QR, app සහ monitor unlocking options. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
View full manufacturer illustration ↗Original manufacturer references may show related models or example installations. Use this item’s specifications and confirm exact model compatibility, required accessories and setup with H Zone.
Two-way talk through the EZVIZ app. Check the entrance layout and required connections with H Zone.EZVIZ app එකෙන් අහන්නත් කතා කරන්නත් පුළුවන්. Entrance layout එක සහ අවශ්‍ය connections H Zone එක්ක check කරන්න.
View full manufacturer illustration ↗Original manufacturer references may show related models or example installations. Use this item’s specifications and confirm exact model compatibility, required accessories and setup with H Zone.
Manage two entrances using one indoor screen and two outdoor doorphone panels. This is the two-entry kit for a property with two doors, not the separate two-family kit.Outdoor doorphone panels දෙකක් සහ indoor screen එකකින් entrances දෙකක් manage කරන්න. මේක doors දෙකක් තියෙන property එකකට two-entry kit එක; වෙනම two-family kit එක නෙවෙයි.
Check both cable runs, power and electric-lock/gate requirements before installation.Install කරන්න කලින් cable runs දෙක, power සහ electric lock/gate requirements check කරන්න.
Local memory cards are separate purchases. Where supported, CloudPlay requires a paid subscription and regional availability.Local memory cards වෙනම ගන්න ඕන. Support වෙන models වල CloudPlay එකට paid subscription එකක් ඕන; region එකටත් support වෙන්න ඕන.
Warranty: 3 Years.Warranty: වසර 3යි වගකීමක්.
Contact H Zone, Panadura, for current price, availability, setup guidance and delivery rates within Sri Lanka.Current price, availability, setup support සහ Sri Lanka delivery rates සඳහා H Zone Panadura අමතන්න.
| Sales model | CS-HP7-R110-2W2TFC(3MP, 2-Entry Kit) |
|---|---|
| Product | EZVIZ HP7 2-Entry Kit 2K Video Doorphone |
| Brand | EZVIZ |
| Image Sensor | 1/2.7" Progressive Scan CMOS (supports low light sensitivity) |
|---|---|
| Lens | 2.0 mm @ F2.2, view angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850nm infrared light x 2 (max. 6m) |
| Max. Resolution | 2K (2048x1296) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; self-adaptive during network transmission |
| Audio Input | Built-in high-sensitivity microphone |
|---|---|
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Supports, 1 button. Can set the light on or off. |
| Name Card | Supports, handwritten. 3 cards stickers included(1 sticker already on the intercom panel). |
| Terminal | Two wiring ports to connect screen.Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Intelligent Alarm | Smart human motion detection; loitering Card |
|---|---|
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired),Digital signal transmission |
|---|---|

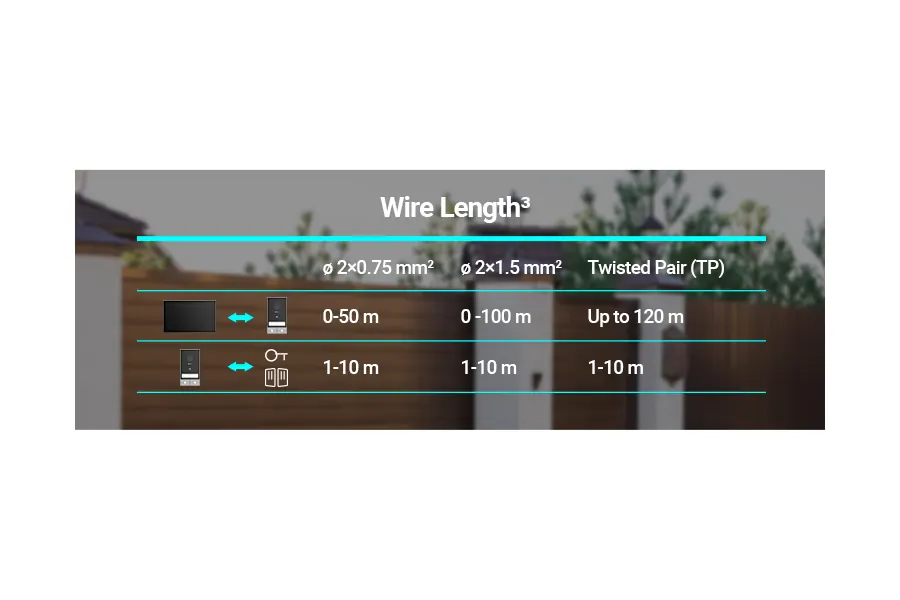

| Transmission Distance | Φ 2 x 0.75mm² , max.50mΦ 2 x 1.5mm² , max.100mTwisted pair , max.120m |
| Open the Door (Gate) | Supports. 2 wiring ports. 1-10m distance.The intercom panel provides a "dry" -contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V/2A |
| Unlock (Electric Strike Plate) | Supports. 2 wiring ports. 1-10m distance.The electric strike plate or lock that you order must have a mechanical memory; the power supply to theelectric strike plate or lock must not exceed 12V/1.1A, other wise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (CPU card × 5 pcs)2.App remote unlock3.Indoor display unlock |
| Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
|---|---|
| Ingress Protection Grade | Waterproof, with shield cover |
| Size | 161 × 87 × 20mm (6.34 × 3.43 × 0.87 inch) |
| Power Supply | 24V DC from screen |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply | DC 24V 1A power supply, adaptor (100-240Vac) |
| Power Consumption | 8W, Max. 24W |
| Display Size | 7" touch screen |
|---|---|
| Resolution | 1024 × 600 |
| Audio Input | Built-in high-sensitivity microphone |
|---|---|
| Audio Output | Built-in high-power speaker |
| Button | Screen on / off button |
| Terminal | Two wiring ports to connect 1st outdoor doorbell.Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen. (not include the kit) |
| SD Card | Supports up to 512GB |
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|---|
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
|---|---|
| Frequency Range | 2.4GHz ~ 2.4835GHz 5.15GHz ~ 5.25GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Multiple ringtones | Up to 20 ringtones |
|---|---|
| Functions | Live view, Playback, Two-way talk, Video call |
| Certifications | CE / REACH / WEEE / RoHS |
|---|
| Included | Monitor; Wall Bracket for Monitor; Power Adapter for Monitor; Drill Template for Monitor; Intercom Panel (Doorbell) with a Weather-Proof Shield x 2; Drill Template for Intercom Panel x 2; Screwdriver; Badge x 5; Screw Kit x 3; Name Card x 4; Wires and Wire Connectors x 2; DC 24V Power Supply Jack Connector Cable; Regulatory Information x 2; Quick Start Guide |
|---|
| Seller warranty | 3 Years Warranty |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
