Ezviz · Door Phone

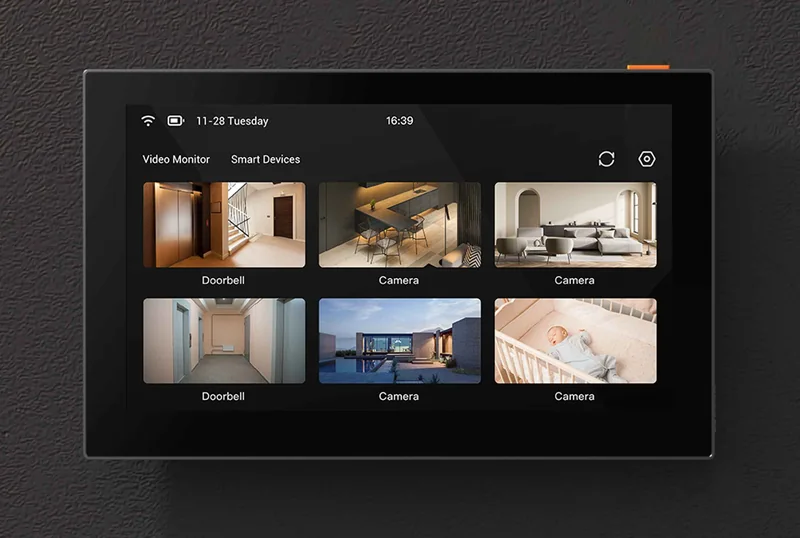

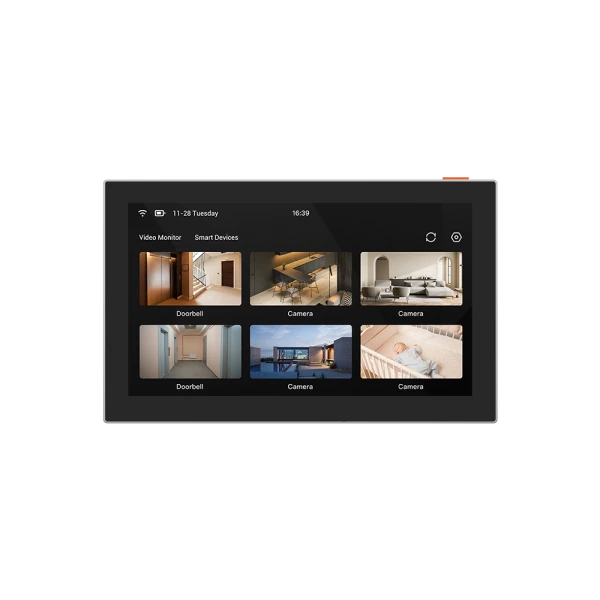

EZVIZ SD7 7-inch Wi-Fi Smart Screen - CS-SD7-R100-1WTC
Model: CS-SD7-R100-1WTC
Product images are illustrative; appearance may vary.
2 Years Warranty
Out of stock · Request to order
- 6.97-inch IPS touchscreen, 1024 x 6006.97-inch IPS touchscreen එකක්, 1024 x 600 resolution
- 4600mAh rechargeable battery, Type-C chargingType-C charging එක්ක 4600mAh rechargeable battery එකක්
- Live view, playback and two-way talkLive view, playback සහ two-way talk
- Up to 30 compatible EZVIZ devicesගැළපෙන EZVIZ devices 30ක් දක්වා link කරන්න පුළුවන්
- 2.4GHz Wi-Fi; check exact device compatibility2.4GHz Wi-Fi; ඔයාගේ device model එක ගැළපෙනවද බලන්න
Product detailsනිෂ්පාදන විස්තර
The EZVIZ SD7 puts compatible EZVIZ camera views, doorbell calls and supported device controls on a portable touchscreen. Its built-in microphone and speaker support two-way conversations with compatible linked devices. The rechargeable battery and Type-C charging make it easier to move the screen between rooms.ගැළපෙන EZVIZ cameras වල views, doorbell calls සහ support කරන device controls SD7 touchscreen එකෙන් බලලා manage කරන්න පුළුවන්. Built-in microphone එක සහ speaker එකෙන් ගැළපෙන linked devices එක්ක දෙපැත්තට කතා කරන්නත් පුළුවන්. Rechargeable battery එක සහ Type-C charging නිසා screen එක කාමර අතර මාරු කරලා භාවිත කරන්න පහසුයි.
Link the SD7 and devices to the same EZVIZ account and enable Terminal Authorization. Exact product and firmware compatibility must be checked before purchase; the 30-device limit refers to linked devices, not 30 simultaneous camera windows. The screen has a native 1024 x 600 resolution and is intended for the supported EZVIZ ecosystem.SD7 එකත් devices ටිකත් එකම EZVIZ account එකට link කරලා Terminal Authorization enable කරන්න. මිලදී ගන්න කලින් exact product model එක සහ firmware එක ගැළපෙනවද බලන්න. Devices 30ක් කියන්නේ link කරන උපරිම ගණනයි; camera windows 30ක් එකවර පෙන්වනවා කියන එක නෙවෙයි. Screen එකේ native resolution එක 1024 x 600; මේක support කරන EZVIZ system එකට භාවිත කරන smart screen එකක්.
Specificationsතාක්ෂණික තොරතුරු
Display / Display එක
| Model | CS-SD7-R100-1WTC |
|---|---|
| Screen | 6.97-inch IPS touchscreen (marketed as 7-inch) |
| Native resolution | 1024 x 600 |
Battery & charging / Battery එක සහ charging
| Battery | 4600mAh rechargeable lithium |
|---|---|
| Charging connection | USB Type-C |
| Battery runtime | Varies with use and settingsභාවිතය සහ settings අනුව වෙනස් වෙනවා |
Audio & functions / Audio සහ functions
| Audio | Built-in microphone and speaker |
|---|---|
| Functions | Live view, video playback, two-way talk and supported device settings |
| Device management | EZVIZ app |
Connection & compatibility / Connection සහ ගැළපීම
| Wi-Fi | 2.4GHz IEEE802.11b/g/n |
|---|---|
| Linking | Same EZVIZ account with Terminal Authorization enabled |
| Capacity | Up to 30 compatible linked EZVIZ devices |
| Compatibility | Confirm exact device model and firmware before ordering |
Physical details / Physical විස්තර
| Dimensions | 180.3 x 111.6 x 15.6 mm |
|---|---|
| Operating temperature | 0 to 40 degrees C |
| Operating humidity | Below 95%, non-condensing |
| Selling unit | One smart screen (Nos) |
Use & placement / භාවිතය සහ තබන විදිහ
| Placement | Wall-mounted, desktop or portable use supported |
|---|---|
| Accessories | Confirm local stand/adapter/package contents with H ZoneLocal box එකේ stand/adapter සහ අනෙක් accessories තියෙනවද H Zone එකෙන් confirm කරගන්න |
| Use | Compatible EZVIZ smart-screen functions; not a general HDMI/VGA monitorගැළපෙන EZVIZ smart-screen functions සඳහායි; සාමාන්‍ය HDMI/VGA monitor එකක් විදිහට භාවිත කරන්න බැහැ |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
