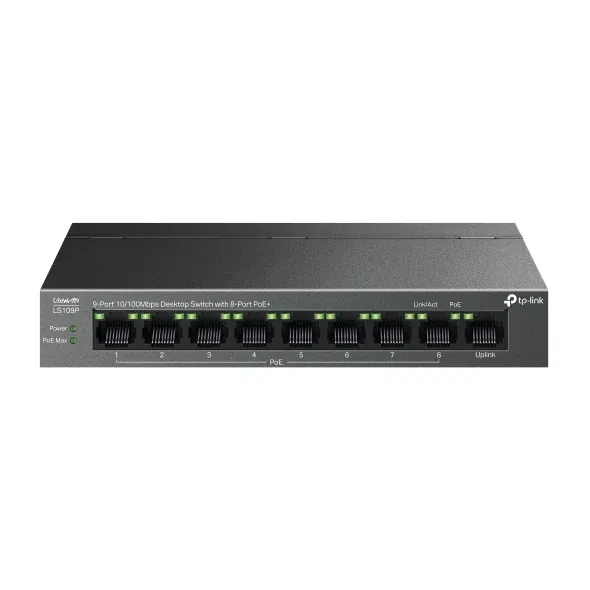

TP-Link LS109P 8-Port Fast Ethernet PoE Switch
Model: LS109P
Product images are illustrative; appearance may vary.
2 Years Warranty
In stock
- 8 × 10/100 Mbps PoE+ RJ45 + 1 × 10/100 Mbps RJ45 uplink8 × 10/100 Mbps PoE+ RJ45 + 1 × 10/100 Mbps RJ45 uplink සම්බන්ධතා
- 63 W shared PoE power budget63 W මුළු PoE power budget එකක්
- Separate uplinks: 1 × 10/100 Mbps RJ45වෙනම uplink සම්බන්ධතා: 1 × 10/100 Mbps RJ45
- 1.8 Gbps switching capacity1.8 Gbps switching ධාරිතාවක්
Product detailsනිෂ්පාදන විස්තර
TP-Link LS109P is a 9-port desktop PoE+ switch for cameras, access points and IP phones.TP-Link LS109P Cameras, access points සහ IP phones සඳහා ports 9ක් සහිත desktop PoE+ switch එකකි.
Use the 8 PoE access ports for compatible powered devices and the 1 × 10/100 Mbps RJ45 uplinks for the rest of the network. The 63 W budget is shared across all PoE devices; check each device’s maximum draw before choosing the camera count.ගැළපෙන powered devices සඳහා PoE ports 8 භාවිතා කරන්න. Network එකට සම්බන්ධ කිරීමට 1 × 10/100 Mbps RJ45 uplinks තියෙනවා. 63 W power budget එක සියලු PoE devices අතර බෙදෙන නිසා camera ගණන තීරණය කිරීමට පෙර ඒවාට අවශ්‍ය උපරිම විදුලිය බලන්න.
The PoE access ports are Fast Ethernet (10/100 Mbps). A Gigabit uplink, where specified, does not turn the camera ports into Gigabit ports.PoE access ports 10/100 Mbps Fast Ethernet වේගයෙන් ක්‍රියා කරයි. Gigabit uplink එකක් තිබුණත් camera ports Gigabit වෙන්නේ නැහැ.
Plan cable quality, run length and uplink bandwidth for the connected cameras. Long-range mode, where supported, depends on the camera and cable and can reduce link speed. Use the normal Ethernet distance unless the installation has been checked for the selected mode.Camera සඳහා cable quality, දුර සහ uplink bandwidth ගැළපෙනවද බලන්න. Long-range mode එක model එකේ තියෙනවා නම් එහි ප්‍රතිඵල camera එක සහ cable එක අනුව වෙනස් වන අතර link speed අඩු විය හැක. Long-range setup එක තහවුරු කර නැත්නම් සාමාන්‍ය Ethernet දුර සීමාව අනුව සැලසුම් කරන්න.
Confirm the hardware revision, required accessories and installation with H Zone before ordering. Warranty information, when available, is shown with the current product listing.ඇණවුමට පෙර hardware revision එක, අවශ්‍ය accessories සහ installation එක H Zone වෙතින් තහවුරු කරගන්න. Warranty විස්තර තිබෙන විට current product listing එකේ පෙන්වයි.
Specificationsතාක්ෂණික තොරතුරු
Network / ජාල විස්තර
| Model | LS109P |
|---|---|
| Brand | TP-Link |
| Ports | 8 × 10/100 Mbps PoE+ RJ45 + 1 × 10/100 Mbps RJ45 uplink |
| Port speed | 10/100 Mbps |
| Shared PoE budget | 63 W |
| Uplink | 1 × 10/100 Mbps RJ45 |
| Switching capacity | 1.8 Gbps |
Features / විශේෂාංග
| PoE standard | IEEE 802.3af/at |
|---|---|
| Per-port maximum | 30 W within the shared 63 W budget |
| Operating modes | Extend; Isolation; PoE Auto Recovery |
| Extend mode | Up to 250 m; reduced 10 Mbps speed; cable and device dependent |
| Enclosure | Fanless metal; desktop or wall mounting |
| Dimensions | 171 × 98 × 27 mm |
Selection notes / තෝරාගැනීමේදී
| Power planning | Total connected maximum load must fit the shared PoE budget |
|---|---|
| Compatibility | Confirm device PoE standard, cable and hardware revision |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
