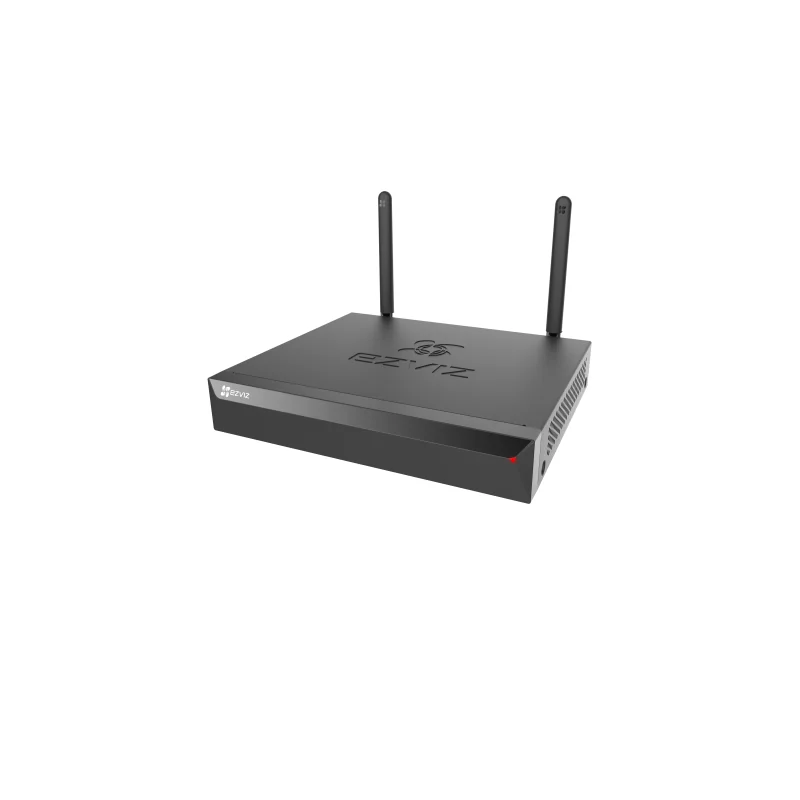

Ezviz · WiFi NVR
Model: CS-X5S-R100-4W
Product images are illustrative; appearance may vary.
2 Years Warranty
In stock
4 compatible IP-camera channels. Match the camera, recording settings and storage before ordering.ගැළපෙන IP-camera channels 4ක්. Order කරන්න කලින් camera, recording settings සහ storage ගැළපෙනවද check කරන්න.

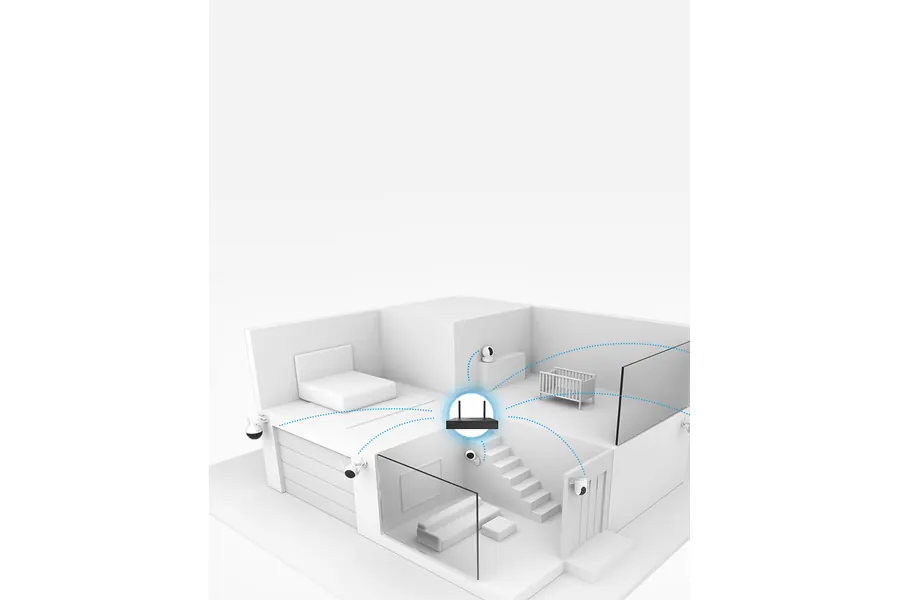

Wi-Fi and wired IP-camera connections. Match the camera, recording settings and storage before ordering.Wi-Fi සහ wired IP-camera connections. Order කරන්න කලින් camera, recording settings සහ storage ගැළපෙනවද check කරන්න.
HDMI and VGA display outputs. Match the camera, recording settings and storage before ordering.HDMI සහ VGA display outputs. Order කරන්න කලින් camera, recording settings සහ storage ගැළපෙනවද check කරන්න.
One SATA HDD bay; HDD sold separately. Match the camera, recording settings and storage before ordering.එක SATA HDD bay එකක්; HDD එක වෙනම ගන්න ඕන. Order කරන්න කලින් camera, recording settings සහ storage ගැළපෙනවද check කරන්න.
Bring up to 4 compatible IP cameras into a single local recording system. This X5S Wi-Fi recorder provides HDMI/VGA display outputs; it is not a PoE-port recorder.ගැළපෙන IP cameras 4ක් දක්වා එකම local recording system එකකට ගන්න. මේ X5S Wi-Fi recorder එකේ HDMI/VGA outputs තියෙනවා; මේක PoE ports තියෙන recorder එකක් නෙවෙයි.
Confirm the exact camera models, firmware, recording resolution and HDD before ordering. Wi-Fi range varies with walls and interference. HDMI and VGA do not provide independent display streams.Order කරන්න කලින් camera models, firmware, recording resolution සහ HDD confirm කරන්න. Wi-Fi range එක walls සහ interference අනුව වෙනස් වෙනවා. HDMI සහ VGA වලින් වෙන වෙනම independent streams දෙන්නේ නැහැ.
Warranty: 2 Years.Warranty: වසර 2යි වගකීමක්.
Contact H Zone, Panadura, for current price, availability, setup guidance and delivery rates within Sri Lanka.Current price, availability, setup support සහ Sri Lanka delivery rates සඳහා H Zone Panadura අමතන්න.
| Sales model | CS-X5S-R100-4W |
|---|---|
| Product | EZVIZ X5S 4-Channel Wi-Fi NVR |
| Brand | EZVIZ |
| Wireless/Wired IPC Access Capability | 4 compatible IP-camera streams up to 3K; configuration and firmware dependent |
|---|---|
| Wired IPC Access Capability | 4 compatible IP-camera streams up to 3K; configuration and firmware dependent |
| Antenna Number | 2 |
|---|---|
| Max Wireless Range | 100m |
| Radio Frequency | 2.4G |
| Ethernet Port | One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth | 50 Mbps |
| VGA | 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz |
|---|---|
| HDMI | 1 channel resolution up to 2592*1944/30HZ |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
|---|---|
| Video Encoding | H.265, H.264 |
| Decode Playback | 4 compatible IP-camera streams up to 3K; configuration and firmware dependent |
| Video Recording Mode | Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
|---|---|
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol Support | HIKVISION, ONVIF (V.2.5) |
|---|
| Interface Type | One built-in SATA port |
|---|---|
| Capability | Supports 1TB to 8TB 3.5-inch HDD |
| Audio Input/ Output | Not support |
|---|---|
| Hardware Reset | Supports |
| USB2.0 Interface | 2 |
| Product Dimensions | 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
|---|---|
| Packaging Dimensions | 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| DC | 12V/1.5A |
|---|
| Standby status | ≤8W |
|---|
| Net Weight | 932 g |
|---|
| Certifications | CE / UL / RoHS / WEEE / REACH |
|---|
| Included | X5S NVR × 1; Power Adapter × 1; Mouse × 1; Screw Kit for HDD × 1*; SATA Data Cable × 1*; SATA Power Cable × 1*; Regulatory Information × 2#; Screw Kit × 1; Regulatory Information × 2; Quick Start Guide × 1 |
|---|
| Recorder only | Cameras and HDD sold separately |
|---|---|
| PoE ports | Not included; use suitable network/power equipment |
| Compatibility | Verify camera model, firmware and requested recording settings |
| Seller warranty | 2 Years Warranty |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
