Product images are illustrative; appearance may vary.
Hikvision · NVR

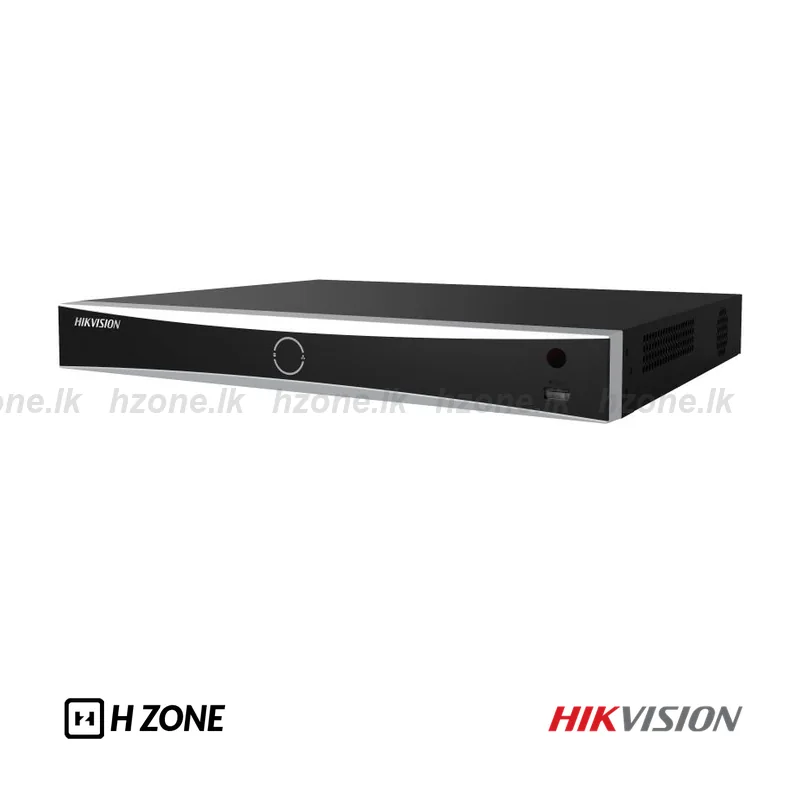

DS-7608NXI-K2 8-ch 1U K Series AcuSense 4K NVR
Model: DS-7608NXI-K2
- IP Video Input: 8-chIP වීඩියෝ ආදාන: 8-ch
- Capacity: Up to 16 TB capacity for each HDDධාරිතාව: Up to 16 TB capacity for each HDD
- Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ)දෙපස ශබ්ද සන්නිවේදනය: 1-ch, RCA (Linear, 1 KΩ)
- Incoming Bandwidth: 80 Mbpsආදාන bandwidth: 80 Mbps
- Outgoing Bandwidth: 160 Mbpsප්‍රතිදාන bandwidth: 160 Mbps
- Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaceජාල සම්බන්ධකය: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Power Supply: 12 VDC, 3.3 Aවිදුලි සැපයුම: 12 VDC, 3.3 A
2 Years Warranty
In stock
LKR 67,277.89
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-7608NXI-K2 is a network video recorder. IP Video Input: 8-ch. Capacity: Up to 16 TB capacity for each HDD. Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ).Hikvision DS-7608NXI-K2 network video recorder එක. IP වීඩියෝ ආදාන: 8-ch. ධාරිතාව: Up to 16 TB capacity for each HDD. දෙපස ශබ්ද සන්නිවේදනය: 1-ch, RCA (Linear, 1 KΩ).
Camera input resolution and recording resolution are different limits. Check the supported input, encoding, frame rate and storage specifications before choosing cameras or a hard drive.Camera input විභේදනය සහ recording විභේදනය එකම සීමාව නෙවෙයි. Cameras හෝ hard drive එක තෝරන්න කලින් input, encoding, frame rate සහ storage specs බලන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Intelligent Analytics
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
|---|---|
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
Perimeter Protection
| By Device | 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
|---|---|
| By Camera | All channels |
Target Recognition
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
|---|---|
| Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
| Facial Detection and Analytics Performance | 1-ch, 8 MP |
| Face Picture Comparison | 4-ch |
Motion Detection 2.0 / චලන හඳුනාගැනීම 2.0
| By Device | All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
|---|---|
| By Camera | All channels |
Video and Audio / වීඩියෝ සහ ශබ්දය
| IP Video InputIP වීඩියෝ ආදාන | 8-ch |
|---|---|
| Incoming Bandwidthආදාන bandwidth | 80 Mbps |
| Outgoing Bandwidthප්‍රතිදාන bandwidth | 160 Mbps |
| HDMI OutputHDMI ප්‍රතිදානය | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA OutputVGA ප්‍රතිදානය | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | N/A |
| Audio Outputශබ්ද ප්‍රතිදානය | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Two-Way Audioදෙපස ශබ්ද සන්නිවේදනය | 1-ch, RCA (Linear, 1 KΩ) |
Decoding
| Decoding Format | H.265/H.265+/H.264+/H.264 |
|---|---|
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playbackඑකවර නැවත ධාවනය | 8-ch |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/7-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
Network / ජාලය
| Remote Connectionදුරස්ථ සම්බන්ධතා | 128 |
|---|---|
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interfaceජාල සම්බන්ධකය | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
Auxiliary Interface / අමතර සම්බන්ධක
| SATA | 2 SATA interfaces |
|---|---|
| Capacityධාරිතාව | Up to 16 TB capacity for each HDD |
| USB InterfaceUSB සම්බන්ධක | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Alarm In/Out | 4/1 |
General / සාමාන්‍ය
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
|---|---|
| Power Supplyවිදුලි සැපයුම | 12 VDC, 3.3 A |
| Consumptionවිදුලි පරිභෝජනය | ≤ 15 W (without HDD) |
| Working Temperatureක්‍රියාකාරී උෂ්ණත්වය | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidityක්‍රියාකාරී ආර්ද්‍රතාව | 10% to 90% |
| Dimension (W × D × H) | 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0") |
| Weightබර | ≤ 1 kg (without HDD, 2.2 lb.) |
Certification
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
|---|---|
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
