Hikvision · NVR

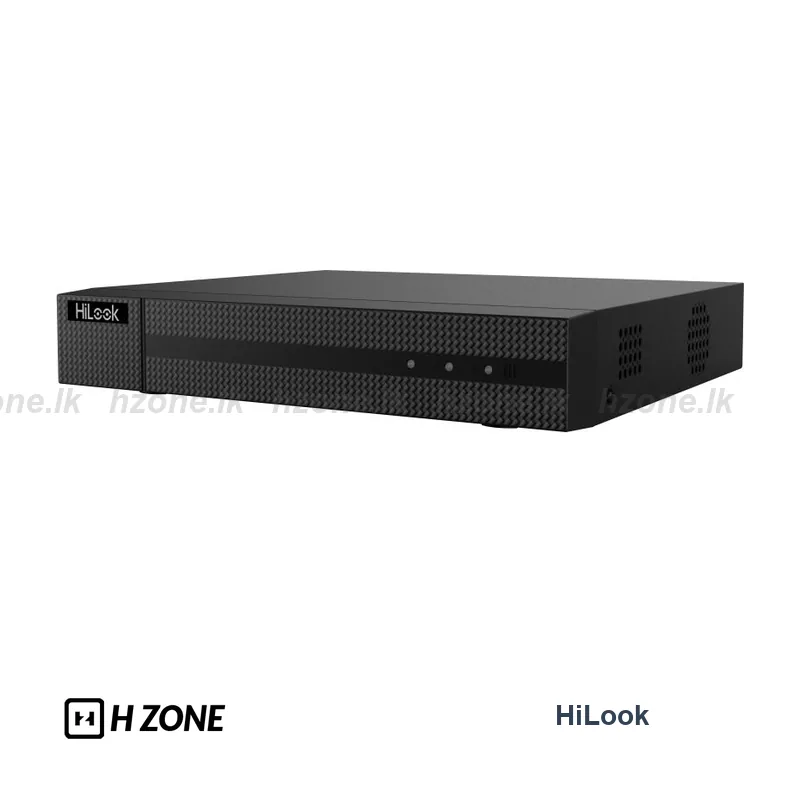

NVR-108MH-D 8-ch Mini 1U NVR
Model: NVR-108MH-D
- IP Video Input: 8-ch Up to 6 MP resolutionIP වීඩියෝ ආදාන: 8-ch Up to 6 MP resolution
- Capacity: Up to 6 TB capacity for each diskධාරිතාව: Up to 6 TB capacity for each disk
- Incoming Bandwidth: 60 Mbpsආදාන bandwidth: 60 Mbps
- Outgoing Bandwidth: 60 Mbpsප්‍රතිදාන bandwidth: 60 Mbps
- Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interfaceජාල සම්බන්ධකය: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
- Power Supply: 12 VDC, 1.5 Aවිදුලි සැපයුම: 12 VDC, 1.5 A
- USB Interface: Rear panel: 2 × USB 2.0USB සම්බන්ධක: Rear panel: 2 × USB 2.0
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
HiLook NVR-108MH-D is a network video recorder. IP Video Input: 8-ch Up to 6 MP resolution. Capacity: Up to 6 TB capacity for each disk. Incoming Bandwidth: 60 Mbps.HiLook NVR-108MH-D network video recorder එක. IP වීඩියෝ ආදාන: 8-ch Up to 6 MP resolution. ධාරිතාව: Up to 6 TB capacity for each disk. ආදාන bandwidth: 60 Mbps.
Camera input resolution and recording resolution are different limits. Check the supported input, encoding, frame rate and storage specifications before choosing cameras or a hard drive.Camera input විභේදනය සහ recording විභේදනය එකම සීමාව නෙවෙයි. Cameras හෝ hard drive එක තෝරන්න කලින් input, encoding, frame rate සහ storage specs බලන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Video and Audio / වීඩියෝ සහ ශබ්දය
| IP Video InputIP වීඩියෝ ආදාන | 8-ch Up to 6 MP resolution |
|---|---|
| Incoming Bandwidthආදාන bandwidth | 60 Mbps |
| Outgoing Bandwidthප්‍රතිදාන bandwidth | 60 Mbps |
| HDMI OutputHDMI ප්‍රතිදානය | 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA OutputVGA ප්‍රතිදානය | 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
Decoding
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
|---|---|
| Recording Resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playbackඑකවර නැවත ධාවනය | 4-ch |
| Decoding Capability | 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps) |
| Stream Type | Video, Video & Audio |
Network / ජාලය
| Remote Connectionදුරස්ථ සම්බන්ධතා | 16 |
|---|---|
| Network Protocol | TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Network Interfaceජාල සම්බන්ධකය | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
Auxiliary Interface / අමතර සම්බන්ධක
| SATA | 1 SATA interface |
|---|---|
| Capacityධාරිතාව | Up to 6 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB InterfaceUSB සම්බන්ධක | Rear panel: 2 × USB 2.0 |
General / සාමාන්‍ය
| Power Supplyවිදුලි සැපයුම | 12 VDC, 1.5 A |
|---|---|
| Consumptionවිදුලි පරිභෝජනය | ≤ 10 W (without HDD) |
| Working Temperatureක්‍රියාකාරී උෂ්ණත්වය | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidityක්‍රියාකාරී ආර්ද්‍රතාව | 10% to 90% |
| Dimension (W × D × H) | 265 × 225 × 48 mm (10.4" × 8.9" × 1.9") |
| Weightබර | ≤ 1 kg (without HDD, 2.2 lb.) |
Certification
| CE | EN50130-4, EN 61000-3-2,EN 61000-3-3 |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
