Hikvision · IR Camera IP

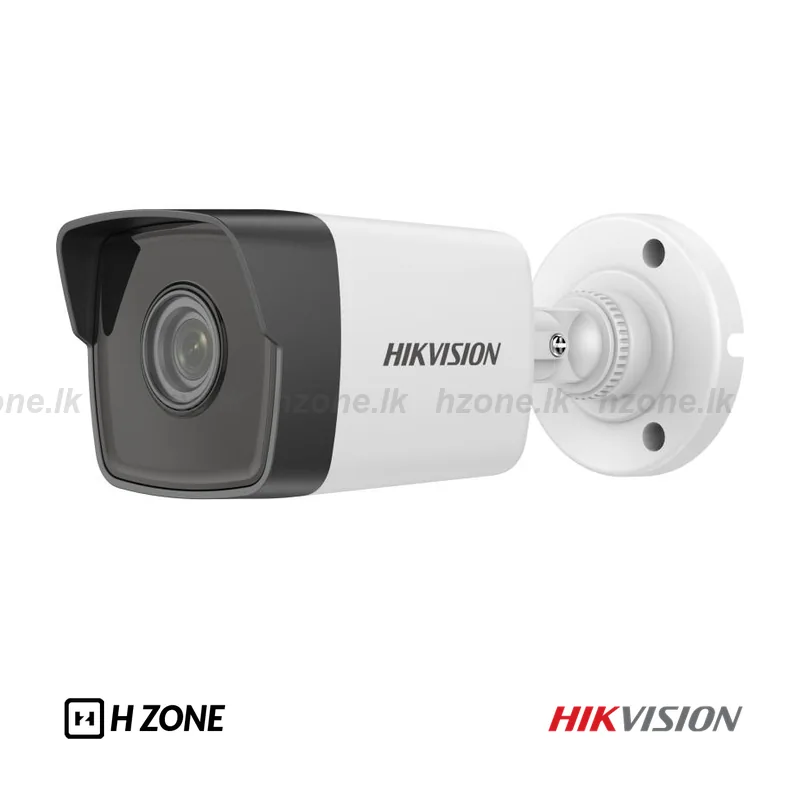

DS-2CD1023G0E-I(4mm) 2 MP Fixed Bullet Network Camera
Model: DS-2CD1023G0E-I(4mm)
- 4 mm lens variant4 mm lens එක සහිත මාදිලිය
- Max. Resolution: 1920 × 1080උපරිම විභේදනය: 1920 × 1080
- Supplement Light Type: IRඅමතර ආලෝක වර්ගය: IR
- Supplement Light Range: Up to 30 mආලෝක පරාසය: Up to 30 m
- Video Compression: Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEGවීඩියෝ සම්පීඩනය: Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG
- Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 Wවිදුලි සැපයුම: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Protection: IP67 (IEC 60529-2013)ආරක්ෂාව: IP67 (IEC 60529-2013)
3 Years Warranty
In stock
Request Price
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-2CD1023G0E-I is a camera. 4 mm lens variant. Max. Resolution: 1920 × 1080. Supplement Light Type: IR.Hikvision DS-2CD1023G0E-I කැමරාව. 4 mm lens එක සහිත මාදිලිය. උපරිම විභේදනය: 1920 × 1080. අමතර ආලෝක වර්ගය: IR.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්‍ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Camera / කැමරාව
| Image Sensorරූප සංවේදකය | 1/2.7" Progressive Scan CMOS |
|---|---|
| Max. Resolutionඋපරිම විභේදනය | 1920 × 1080 |
| Min. Illuminationඅවම ආලෝකය | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Timeෂටර් වේගය | 1/3 s to 1/100, 000 s |
| Day & Nightදිවා සහ රාත්‍රී | IR cut filter |
| Angle Adjustmentකෝණ සැකසුම | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Lens / කාචය
| Focal Length & FOVනාභි දුර සහ දර්ශන කෝණය | 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
|---|---|
| Lens Mountකාච සවි කිරීම | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
Illuminator / ආලෝකකය
| Supplement Light Typeඅමතර ආලෝක වර්ගය | IR |
|---|---|
| Supplement Light Rangeආලෝක පරාසය | Up to 30 m |
| Smart Supplement Lightබුද්ධිමත් අමතර ආලෝකය | Yes |
| IR Wavelength | 850 nm |
Video / වීඩියෝ
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compressionවීඩියෝ සම්පීඩනය | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
Network / ජාලය
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image / රූපය
| Image Settingsරූප සැකසුම් | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR)පුළුල් ගතික පරාසය | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancementරූප වැඩිදියුණු කිරීම | BLC, 3D DNR |
Interface / සම්බන්ධක
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
Event / සිදුවීම්
| Basic Event | Motion detection, video tampering alarm, exception |
|---|---|
| Linkage | Upload to FTP, notify surveillance center, send email |
General / සාමාන්‍ය
| Powerවිදුලි සැපයුම | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|---|
| Dimensionමානයන් | 177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7") |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weightබර | Approx. 270 g (0.6 lb.) |
| With Package Weight | Approx. 490 g (1.1 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Languageභාෂාව | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Approval / සහතික
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
|---|---|
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protectionආරක්ෂාව | IP67 (IEC 60529-2013) |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
