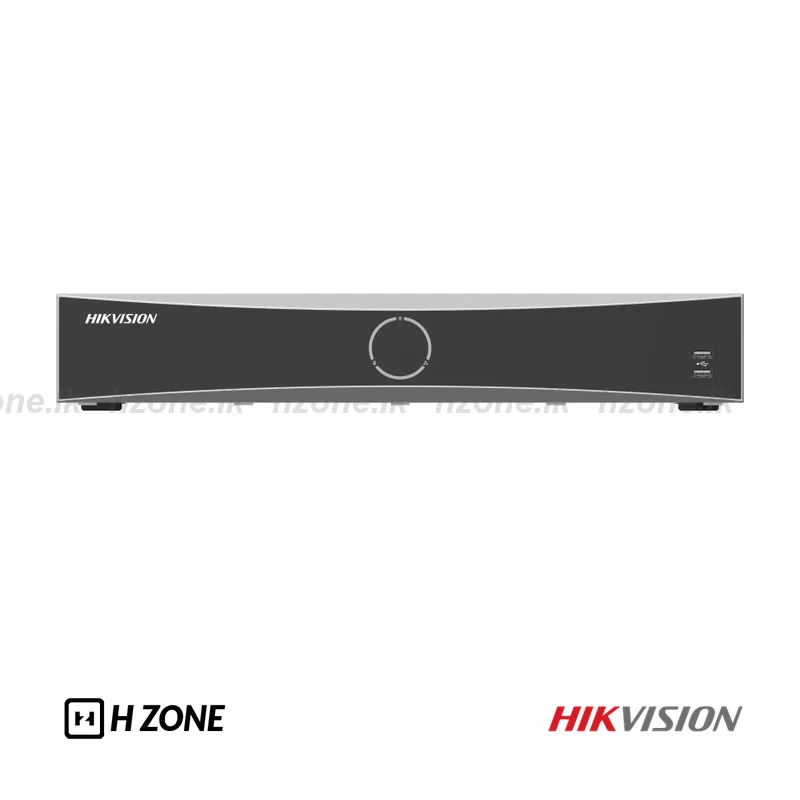

DS-7732NXI-K4 32-ch 1.5U K Series AcuSense 4K NVR — view 1

Product images are illustrative; appearance may vary.

Hikvision · NVR

DS-7732NXI-K4 32-ch 1.5U K Series AcuSense 4K NVR

Model: DS-7732NXI-K4

  • IP Video Input: 32-chIP වීඩියෝ ආදාන: 32-ch
  • Capacity: Up to 16 TB capacity for each HDDධාරිතාව: Up to 16 TB capacity for each HDD
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )දෙපස ශබ්ද සන්නිවේදනය: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
  • Incoming Bandwidth: 256 Mbpsආදාන bandwidth: 256 Mbps
  • Outgoing Bandwidth: 160 Mbpsප්‍රතිදාන bandwidth: 160 Mbps
  • Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfacesජාල සම්බන්ධකය: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • Power Supply: 100 to 240 VAC, 50 to 60Hzවිදුලි සැපයුම: 100 to 240 VAC, 50 to 60Hz

2 Years Warranty

In stock

MRP LKR 207,327 10% off
LKR 186,594.3
WhatsApp enquiryShare Download datasheet (PDF)

Product detailsනිෂ්පාදන විස්තර

Hikvision DS-7732NXI-K4 is a network video recorder. IP Video Input: 32-ch. Capacity: Up to 16 TB capacity for each HDD. Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ).Hikvision DS-7732NXI-K4 network video recorder එක. IP වීඩියෝ ආදාන: 32-ch. ධාරිතාව: Up to 16 TB capacity for each HDD. දෙපස ශබ්ද සන්නිවේදනය: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input ).

Camera input resolution and recording resolution are different limits. Check the supported input, encoding, frame rate and storage specifications before choosing cameras or a hard drive.Camera input විභේදනය සහ recording විභේදනය එකම සීමාව නෙවෙයි. Cameras හෝ hard drive එක තෝරන්න කලින් input, encoding, frame rate සහ storage specs බලන්න.

Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.

Specificationsතාක්ෂණික තොරතුරු

Intelligent Analytics
AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Perimeter Protection
By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels
Target Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance1-ch, 8 MP
Face Picture Comparison4-ch
Motion Detection 2.0 / චලන හඳුනාගැනීම 2.0
By DeviceAll channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels
Video and Audio / වීඩියෝ සහ ශබ්දය
IP Video InputIP වීඩියෝ ආදාන32-ch
Incoming Bandwidthආදාන bandwidth256 Mbps
Outgoing Bandwidthප්‍රතිදාන bandwidth160 Mbps
HDMI OutputHDMI ප්‍රතිදානය1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA OutputVGA ප්‍රතිදානය1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputN/A
Audio Outputශබ්ද ප්‍රතිදානය1-ch, RCA (Linear, 1 KΩ)
Two-Way Audioදෙපස ශබ්ද සන්නිවේදනය1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
Decoding
Decoding FormatH.265/H.265+/H.264+/H.264
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playbackඑකවර නැවත ධාවනය16-ch
Decoding CapabilityAI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/7-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
Network / ජාලය
Remote Connectionදුරස්ථ සම්බන්ධතා128
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interfaceජාල සම්බන්ධකය2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Auxiliary Interface / අමතර සම්බන්ධක
SATA4 SATA interfaces
CapacityධාරිතාවUp to 16 TB capacity for each HDD
Serial Interface2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out16/4 (16/9 is optional)
USB InterfaceUSB සම්බන්ධකFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12VN/A (optional to support)
DC 12VN/A (optional to support)
General / සාමාන්‍ය
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supplyවිදුලි සැපයුම100 to 240 VAC, 50 to 60Hz
Consumptionවිදුලි පරිභෝජනය≤ 20 W (without HDD)
Working Temperatureක්‍රියාකාරී උෂ්ණත්වය-10 °C to 55 °C (14 °F to 131 °F)
Working Humidityක්‍රියාකාරී ආර්ද්‍රතාව10 to 90 %
Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Weightබර≤ 5 kg (without HDD, 11 lb.)
Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
