Hikvision · Sensor

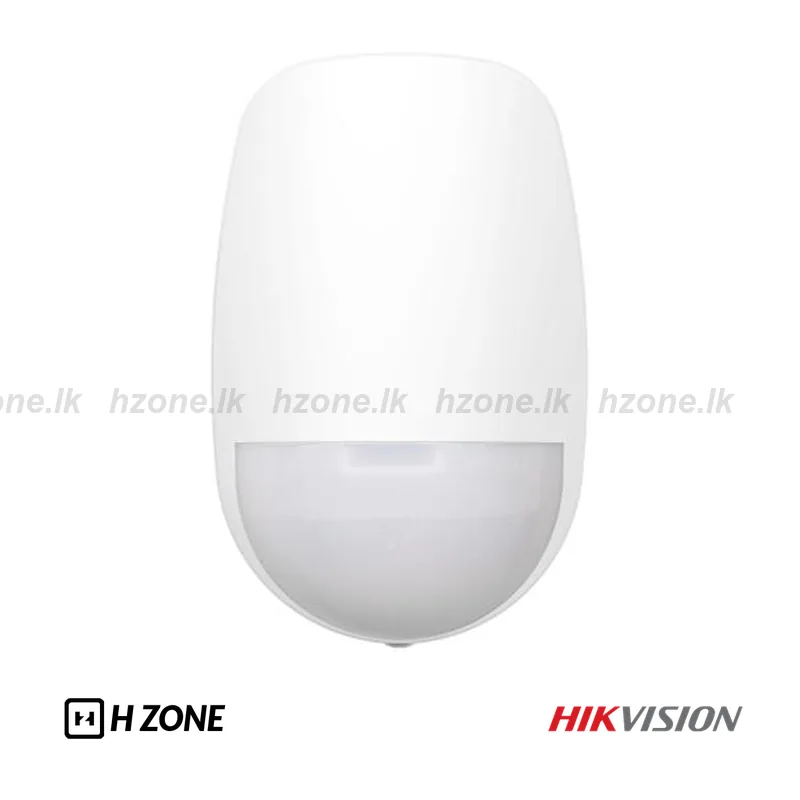

DS-PDD12P-EG2-WB Wireless Dual-Tech Detector
Model: DS-PDD12P-EG2-WB
- Transmission Frequency: 433MHzTransmission Frequency: 433MHz
- Battery Type: CR123A × 2Battery Type: CR123A × 2
- Power Supply: Battery Poweredවිදුලි සැපයුම: Battery Powered
- Detection Range: 12mහඳුනාගැනීමේ පරාසය: 12m
- Detection Method: Passive Infrared;MicrowaveDetection Method: Passive Infrared;Microwave
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-PDD12P-EG2-WB is a security system accessory. Transmission Frequency: 433MHz. Battery Type: CR123A × 2. Power Supply: Battery Powered.Hikvision DS-PDD12P-EG2-WB ආරක්ෂක පද්ධති උපකරණය. Transmission Frequency: 433MHz. Battery Type: CR123A × 2. විදුලි සැපයුම: Battery Powered.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Detection Performance
| Detection Method | Passive Infrared;Microwave |
|---|---|
| Detection Rangeහඳුනාගැනීමේ පරාසය | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | High;Auto;Pet |
| Pet Immunity | 30Kg |
| White Light Filter | 6500lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
Feature
| Digital Processing | Support |
|---|---|
| Sealed Optics | Support |
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
Interface / සම්බන්ධක
| Power Switch | Power Up Enrolling |
|---|---|
| LED Indicator | Green(PIR), Red(Microwave), Blue(Alarm) |
Transmission
| Transmission Technology | Tri-X Wireless |
|---|---|
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | Support |
| Transmission Range(Free Space) | 1.2Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up;Remote ID;QR Code |
Electrical Characteristics
| Standard Battery Life | Up to 5 years (standby time) |
|---|---|
| Power Supplyවිදුලි සැපයුම | Battery Powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
General / සාමාන්ය
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|---|---|
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.5mm × 103mm × 48.5mm |
| Mounting Height | 1.8 to 2.4m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
