Hikvision · Sensor

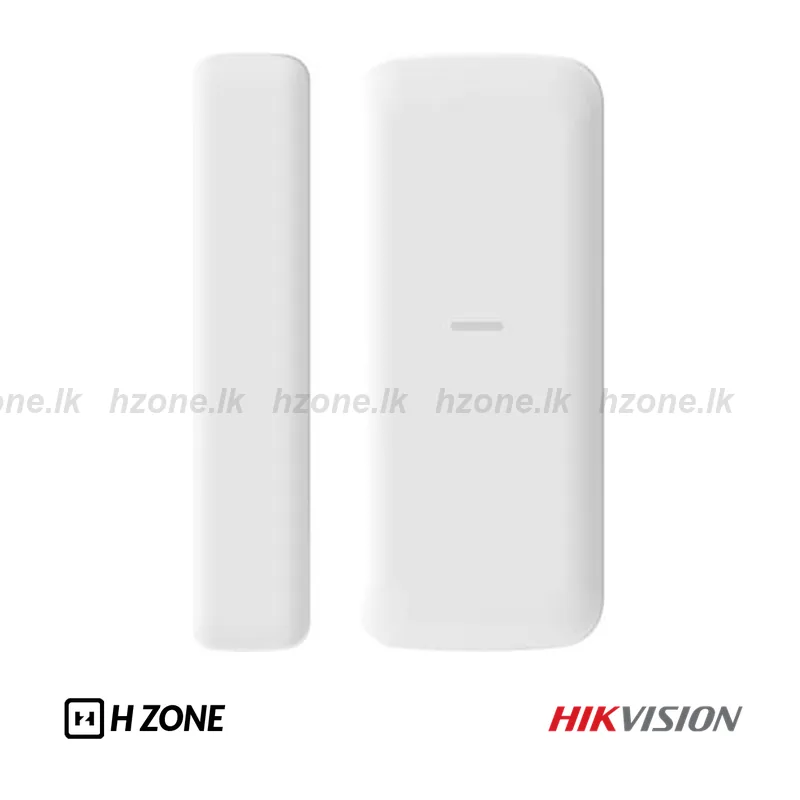

DS-PDMCS-EG2-WB Wireless Slim Magnet Detector
Model: DS-PDMCS-EG2-WB
- Transmission Frequency: 433MHzTransmission Frequency: 433MHz
- Battery Type: CR2450 x 1Battery Type: CR2450 x 1
- Power Supply: Battery Poweredවිදුලි සැපයුම: Battery Powered
- Detection Method: Opening ContactDetection Method: Opening Contact
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-PDMCS-EG2-WB is a security system accessory. Transmission Frequency: 433MHz. Battery Type: CR2450 x 1. Power Supply: Battery Powered.Hikvision DS-PDMCS-EG2-WB ආරක්ෂක පද්ධති උපකරණය. Transmission Frequency: 433MHz. Battery Type: CR2450 x 1. විදුලි සැපයුම: Battery Powered.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Detection Performance
| Detection Method | Opening Contact |
|---|---|
| Detection Gap | 52mm Max |
Feature
| Digital Processing | Support |
|---|---|
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
Interface / සම්බන්ධක
| Power Switch | Power Up Enrolling |
|---|---|
| LED Indicator | Blue (Alarm) |
Transmission
| Transmission Technology | Tri-X Wireless |
|---|---|
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up;Remote ID;QR Code |
Electrical Characteristics
| Standard Battery Life | Up to 3 years (standby time) |
|---|---|
| Power Supplyවිදුලි සැපයුම | Battery Powered |
| Battery Type | CR2450 x 1 |
| Typical Voltage | 3V |
General / සාමාන්ය
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
|---|---|
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 29mm × 69mm × 10mm 14mm × 69mm × 10mm |
| Mounting Method | Wall-mount(The device only supports wooden structure installation and cannot be installed on metal surface) |
| Application Scenario | Indoor |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
