Hikvision · Sensor

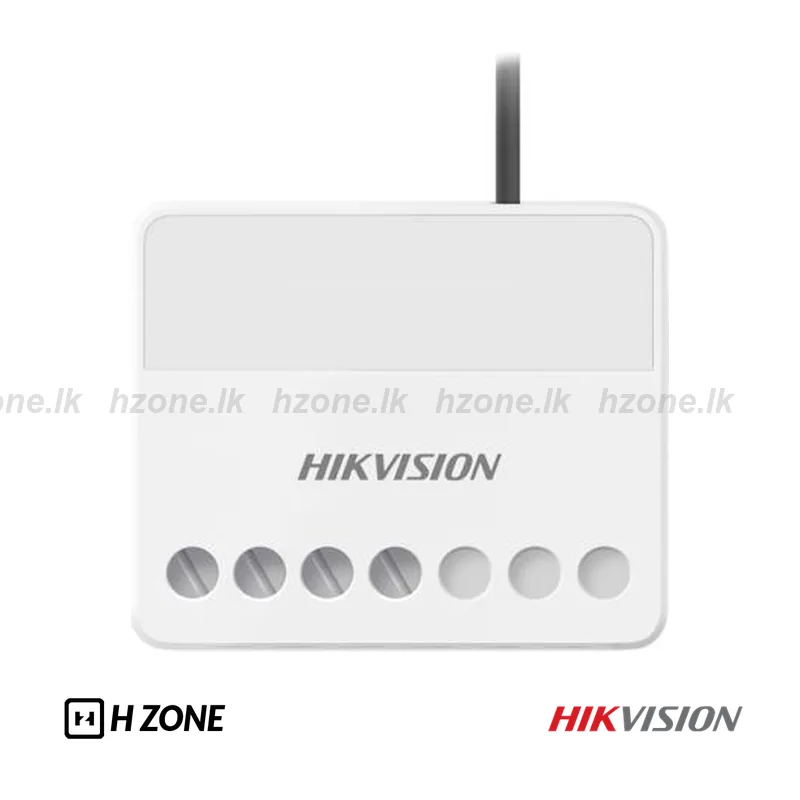

DS-PM1-O1H-WE Wall Switch
Model: DS-PM1-O1H-WE
- RF frequency: 868MHzRF සංඛ්යාතය: 868MHz
- RF distance: 1600mRF පරාසය: 1600m
- Power supply: AC 100v – 240v, 50/60 HZවිදුලි සැපයුම: AC 100v – 240v, 50/60 HZ
- RF method: Two way communicationRF method: Two way communication
- Relay output: 1, NO/NC (AC 100~240v, Max 13A）Relay ප්රතිදානය: 1, NO/NC (AC 100~240v, Max 13A）
2 Years Warranty
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-PM1-O1H-WE is a security system accessory. RF frequency: 868MHz. RF distance: 1600m. Power supply: AC 100v – 240v, 50/60 HZ.Hikvision DS-PM1-O1H-WE ආරක්ෂක පද්ධති උපකරණය. RF සංඛ්යාතය: 868MHz. RF පරාසය: 1600m. විදුලි සැපයුම: AC 100v – 240v, 50/60 HZ.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Software features
| Scenario setting | By Alarm, By Operation, By Fault, By Schedule, By Manual |
|---|---|
| Learning button | 1, For register |
Hardware features
| Serial port | 1, for debug |
|---|
Display / තිරය
| LEDs status | 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
|---|
Electrical characteristics
| Power supplyවිදුලි සැපයුම | AC 100v – 240v, 50/60 HZ |
|---|---|
| Operation humidity | 10％~90％ |
| Operation temperature | ﹣10℃~+55℃ |
Wireless transmission
| RF frequencyRF සංඛ්යාතය | 868MHz |
|---|---|
| RF method | Two way communication |
| RF modulation | 2GFSK |
| RF distanceRF පරාසය | 1600m |
| Wireless security | AES-128 |
General / සාමාන්ය
| Installation method | Wall Mounting or Inside 86 box |
|---|---|
| Dimension(WxHxD) | 38x25x18mm |
| Shell material | Plastic |
| Color | White |
Device management
| Relay outputRelay ප්රතිදානය | 1, NO/NC (AC 100~240v, Max 13A） |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
