Hikvision · Alarm System

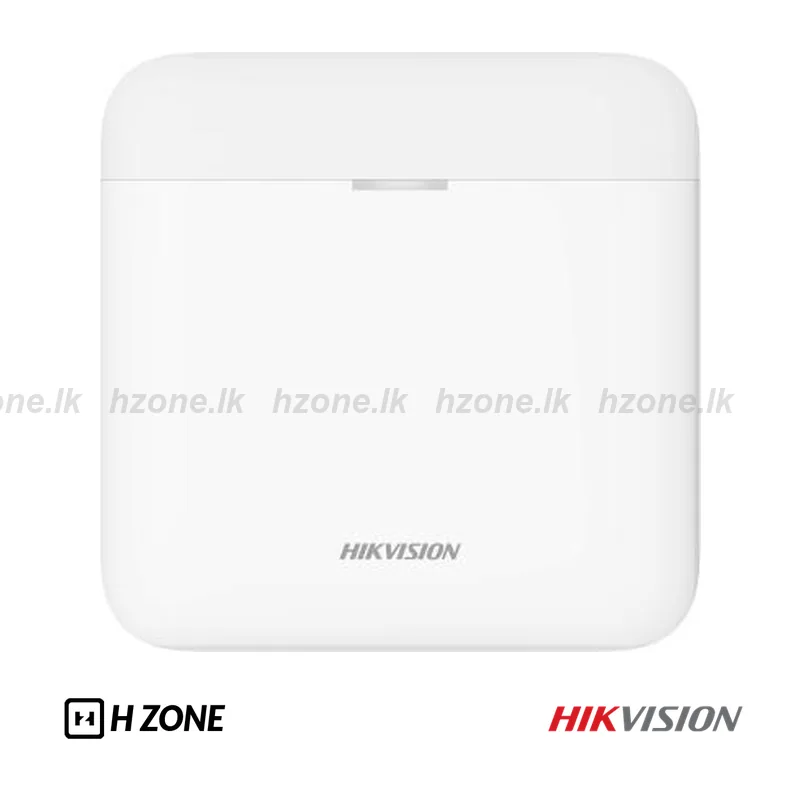

DS-PR1-WB Wireless Repeater
Model: DS-PR1-WB
- RF frequency: 433 MHzRF සංඛ්යාතය: 433 MHz
- RF distance: 800 m (open area)RF පරාසය: 800 m (open area)
- Battery type: Built in Battery LiBattery type: Built in Battery Li
- Power supply: 100 VAC to 240 VACවිදුලි සැපයුම: 100 VAC to 240 VAC
- RF method: Two-way communicationRF method: Two-way communication
- Battery life span: Up to 24 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)බැටරි කාලය: Up to 24 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-PR1-WB is a security system accessory. RF frequency: 433 MHz. RF distance: 800 m (open area). Battery type: Built in Battery Li.Hikvision DS-PR1-WB ආරක්ෂක පද්ධති උපකරණය. RF සංඛ්යාතය: 433 MHz. RF පරාසය: 800 m (open area). Battery type: Built in Battery Li.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Software features
| Auto paring | Supported |
|---|
Hardware features
| Serial port | 2, for debug |
|---|---|
| Tamper-Proof | 1, front and back |
| Power switch | 1 |
Display / තිරය
| LEDs status | 3, Register/Signal (Green/Red), Power (Green), Fault (Amber) |
|---|
Electrical characteristics
| Battery type | Built in Battery Li |
|---|---|
| Power supplyවිදුලි සැපයුම | 100 VAC to 240 VAC |
| Operation humidity | 10％ to 90％ |
| Operation temperature | ﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected) |
| Battery life spanබැටරි කාලය | Up to 24 hours at normal temperature(The battery working time can be significantly reduced at low temperatures) |
Wireless transmission
| RF frequencyRF සංඛ්යාතය | 433 MHz |
|---|---|
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distanceRF පරාසය | 800 m (open area) |
| Wireless security | Supported |
General / සාමාන්ය
| Installation method | Wall mounting |
|---|---|
| Dimension(WxHxD) | 150 mm × 150 mm × 25 mm |
| Shell material | Plastic |
| Color | White |
| Weightබර | 372 g |
Device management
| PIRCAM paring | Supported |
|---|---|
| Keypad | LCD keypad not support |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
