Hikvision · Alarm System

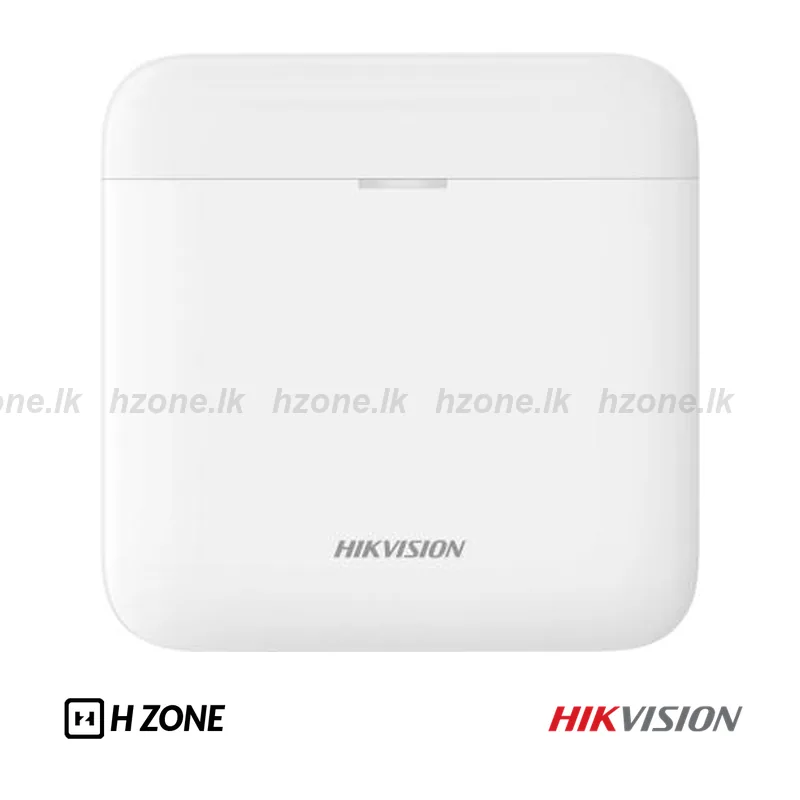

DS-PWA64-L-WB AX PRO (433MHz)
Model: DS-PWA64-L-WB
- RF frequency: 433 MhzRF සංඛ්යාතය: 433 Mhz
- Battery type: Built in on board Battery LiBattery type: Built in on board Battery Li
- Power supply: Built in power supplyවිදුලි සැපයුම: Built in power supply
- Zones: 64 (up to 48 PIRCAMs)Zones: 64 (up to 48 PIRCAMs)
- Area: 16Area: 16
- Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)බැටරි කාලය: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
In stock
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-PWA64-L-WB is a security system accessory. RF frequency: 433 Mhz. Battery type: Built in on board Battery Li. Power supply: Built in power supply.Hikvision DS-PWA64-L-WB ආරක්ෂක පද්ධති උපකරණය. RF සංඛ්යාතය: 433 Mhz. Battery type: Built in on board Battery Li. විදුලි සැපයුම: Built in power supply.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Software features
| Diagnostics via the APP or Web | Supported |
|---|---|
| Installer | 1 |
| Installer APP for programming | Supported |
| Web server for maintenance (offline configuration) | Supported |
| Wi-Fi standard | Supported |
| Arm modes | Away/Stay |
| Firmware upgrade | APP/Web Portal |
| Admin | 1 |
| Wired network | Supported |
| Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
| Forced arming with open zones | Supported |
| Memory log stored | 5000 |
| User | 30 |
| User APP for operating | Supported |
| Voice prompt | Supported |
| Area | 16 |
| Automatic arm/disarm timers | Supported |
Hardware features
| RS232 output | Supported |
|---|---|
| SIM slot | Single |
| GPRS on board | Supported |
| Loudspeaker built in | Supported |
Display / තිරය
| LEDs status | Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
|---|
Electrical characteristics
| Battery type | Built in on board Battery Li |
|---|---|
| Power supplyවිදුලි සැපයුම | Built in power supply |
| Operation temperature | -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected) |
| Battery life spanබැටරි කාලය | Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
Wireless transmission
| RF frequencyRF සංඛ්යාතය | 433 Mhz |
|---|---|
| Wireless security | Supported |
General / සාමාන්ය
| Dimension(WxHxD) | 170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5") |
|---|---|
| Shell material | Plastic |
| Color | White |
| Weightබර | 557.5 g (19.7 oz) |
Device management
| Tag | 32 |
|---|---|
| PIR cam | Supported |
| Zones | 64 (up to 48 PIRCAMs) |
| Keypad | 8 (including tag reader) |
| Wireless sounder | 4 |
| Wireless repeater | 2 |
| Keyfob | 32 |
| Multi Transmitter | 4 |
Report method
| ARC protocol | SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control |
|---|
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
