Hikvision · IR Camera IP

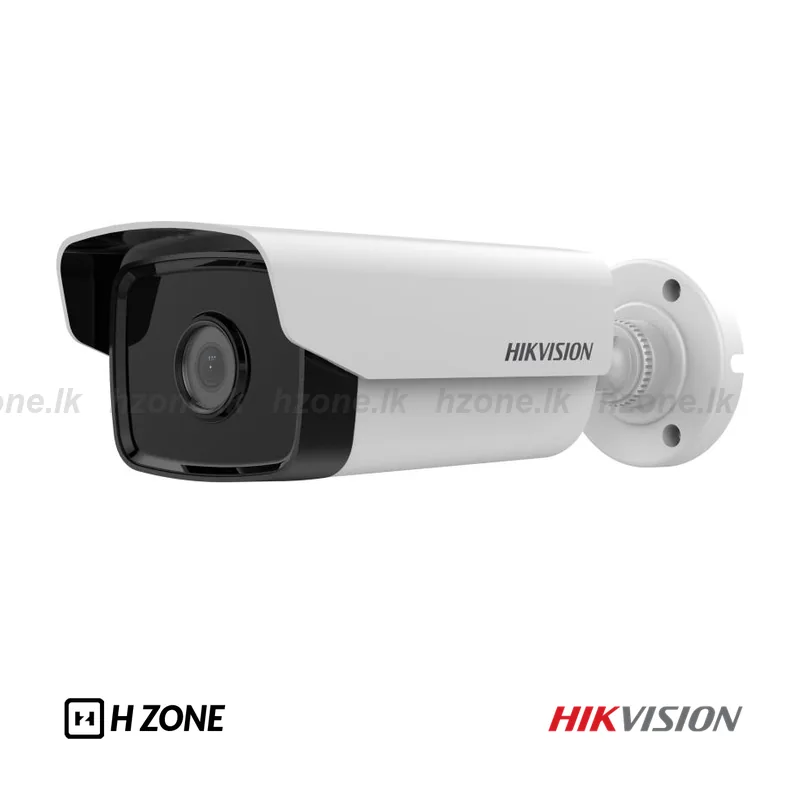

DS-2CD1T23G0-I(4mm) 2 MP Fixed Bullet Network Camera
Model: DS-2CD1T23G0-I(4mm)
- 4 mm lens variant4 mm lens එක සහිත මාදිලිය
- Max. Resolution: 1920 × 1080උපරිම විභේදනය: 1920 × 1080
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEGවීඩියෝ සම්පීඩනය: Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG
- Power Supply: 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protectionවිදුලි සැපයුම: 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
- Protection: Ingress protection: IP67 (IEC 60529-2013)ආරක්ෂාව: Ingress protection: IP67 (IEC 60529-2013)
3 Years Warranty
In stock
LKR 16,000
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-2CD1T23G0-I is a camera. 4 mm lens variant. Max. Resolution: 1920 × 1080. Video Compression: Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG.Hikvision DS-2CD1T23G0-I කැමරාව. 4 mm lens එක සහිත මාදිලිය. උපරිම විභේදනය: 1920 × 1080. වීඩියෝ සම්පීඩනය: Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG.
Review the exact specifications below and confirm the required accessories, installation and compatibility with H Zone before ordering.පහත specs බලලා, අවශ්‍ය accessories, installation එක සහ ගැළපීම ඇණවුමට පෙර H Zone වෙතින් තහවුරු කරගන්න.
Warranty follows this item’s current H Zone listing. Contact H Zone for applicable warranty terms.වගකීම මේ item එකේ current H Zone listing එකට අනුවයි. අදාළ කොන්දේසි H Zone වෙතින් විමසන්න.
Specificationsතාක්ෂණික තොරතුරු
Camera / කැමරාව
| Image Sensorරූප සංවේදකය | 1/2.8″ Progressive Scan CMOS |
|---|---|
| Min. Illuminationඅවම ආලෝකය | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Day & Nightදිවා සහ රාත්‍රී | ICR Cut |
| Linkage Method | Upload to FTP, notify surveillance center, send email, trigger capture |
| Angle Adjustmentකෝණ සැකසුම | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Lens / කාචය
| Lens Type & FOV | 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°; |
|---|---|
| Aperture | F2.0 |
| Lens Mountකාච සවි කිරීම | M12 |
Illuminator / ආලෝකකය
| IR Range | 50 m |
|---|---|
| Wavelength | 850nm |
| Smart Supplement Lightබුද්ධිමත් අමතර ආලෝකය | Yes |
Video / වීඩියෝ
| Max. Resolutionඋපරිම විභේදනය | 1920 × 1080 |
|---|---|
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compressionවීඩියෝ සම්පීඩනය | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Stream Type | Main stream/Sub-stream |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Network / ජාලය
| Simultaneous Live View | Up to 6 channels |
|---|---|
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+ |
Image / රූපය
| Day/Night Switch | Day, Night, Auto, Schedule |
|---|---|
| Image Enhancementරූප වැඩිදියුණු කිරීම | BLC, HLC, 3D DNR |
| Image Settingsරූප සැකසුම් | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| SNR | > 50 dB |
Interface / සම්බන්ධක
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
Intelligent (Traditional Algorithm)
| Basic Event | Motion detection, video tampering alarm, exception (illegal login) |
|---|
General / සාමාන්‍ය
| Firmware Version | V5.5.84 |
|---|---|
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supplyවිදුලි සැපයුම | 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
| Power Consumption and Current | 12 VDC, 0.40 A, max. 4.8 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6 W |
| Power Interface | Φ5.5 mm coaxial power plug |
| Materialද්‍රව්‍යය | Front cover & bracket: metal; back cover & sun shield: plastic |
| Camera Dimension | 71.67 × 92.87 × 221.49 mm (2.82" × 3.65" × 8.72") |
| Package Dimension | 234 × 120 × 117 mm (9.21" × 4.72" × 4.61") |
| Camera Weight | 540 g (1.19 lb.) |
| With Package Weight | 810 g (1.79 lb.) |
Approval / සහතික
| Protectionආරක්ෂාව | Ingress protection: IP67 (IEC 60529-2013) |
|---|---|
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
