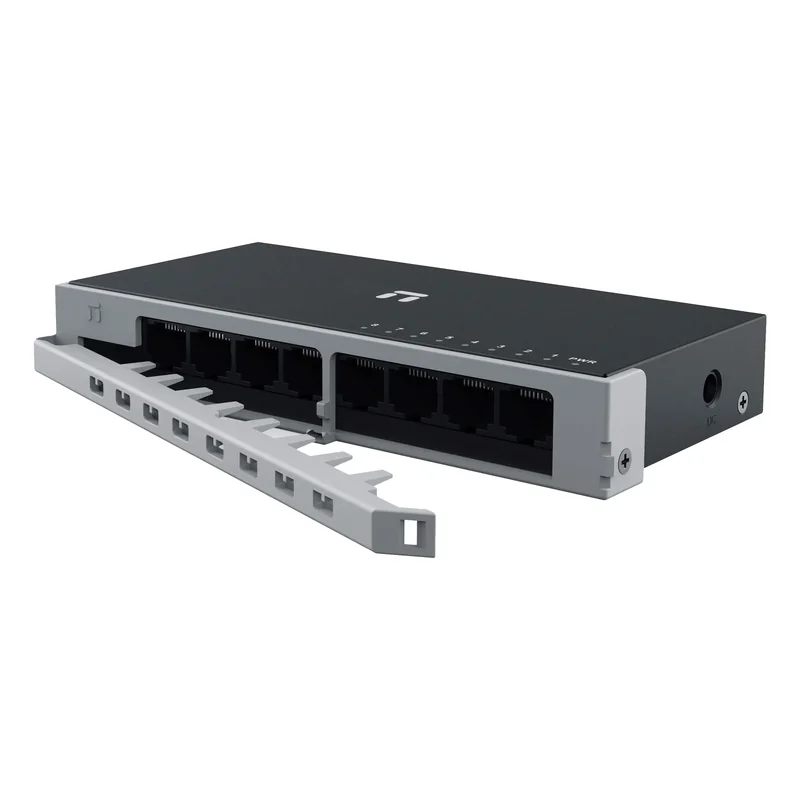

Netis · Network Switch
Model: ST108D
Product images are illustrative; appearance may vary.
2 Years Warranty
Out of stock · Request to order

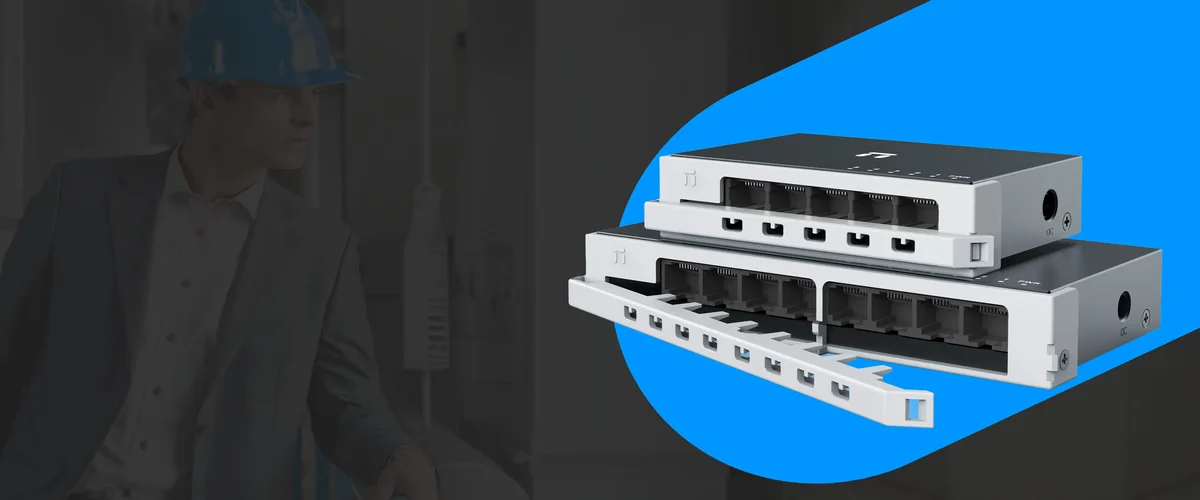

Steel housingSteel housing එක
Cable safety lockCable safety lock එක

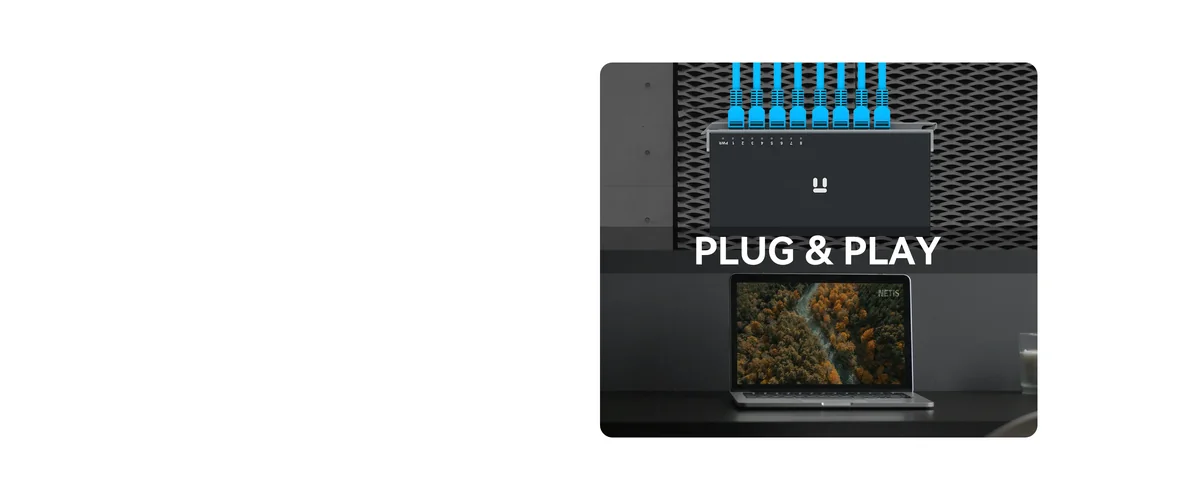

Plug and playපහසුවෙන් connect කරන්න
Half / full duplexHalf / full duplex support
Desktop / wall mountDesktop හෝ wall mount
4kV manufacturer ratingManufacturer සඳහන් කරන 4kV
8-pin RJ45 ports8-pin RJ45 ports
Energy-saving designEnergy-saving design එක
A compact steel Fast Ethernet switch for organised desktop or wall-mounted network connections.Desktop එකේ හෝ බිත්තියේ සවි කරලා network connections පිළිවෙළට තියාගන්න පුළුවන් compact steel Fast Ethernet switch එකක්.

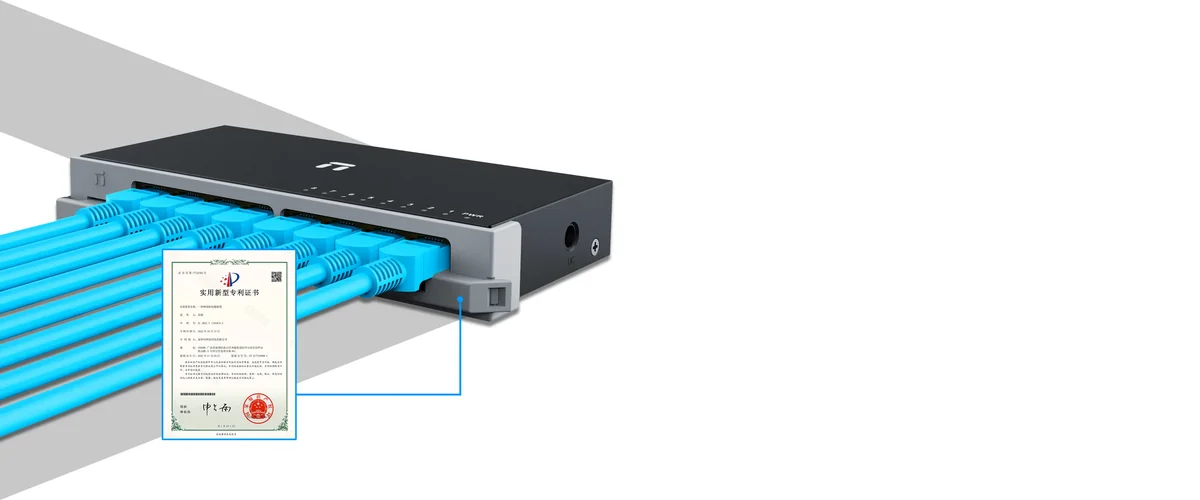

The attached safety lock helps retain connected Ethernet cables and keeps the installation organised.Built-in safety lock එක connected Ethernet cables රඳවාගෙන installation එක පිළිවෙළට තියාගන්න උදව් කරනවා.
The cable-retention design makes connected leads and ports easier to identify during installation and maintenance.Cable-retention design එක නිසා installation සහ maintenance වෙලාවේ connected cables සහ ports හඳුනාගන්න පහසුයි.

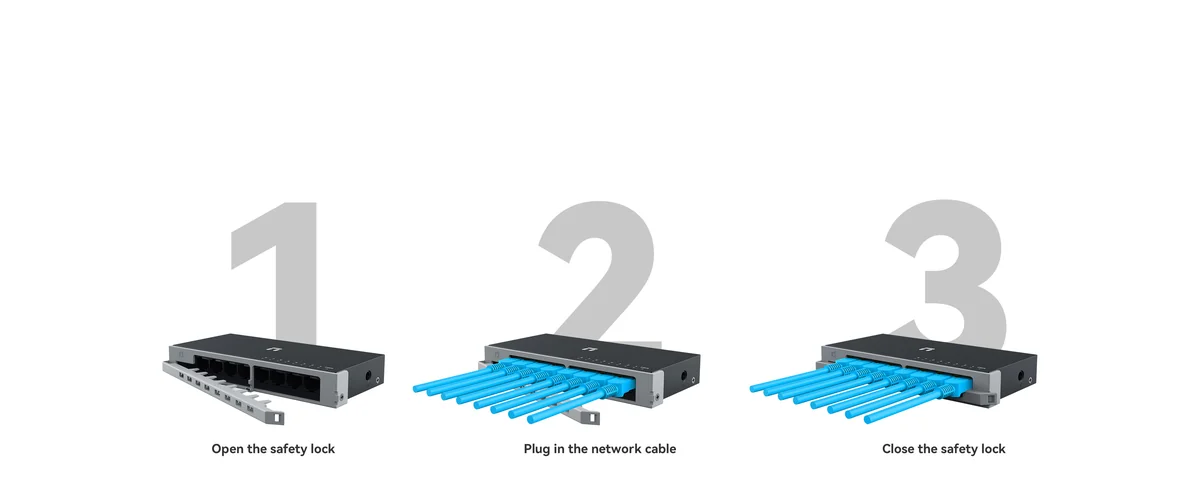

Open the safety lock, connect the Ethernet cable securely, then close the lock.Safety lock එක open කරලා Ethernet cable එක හරියට connect කරලා නැවත close කරන්න.

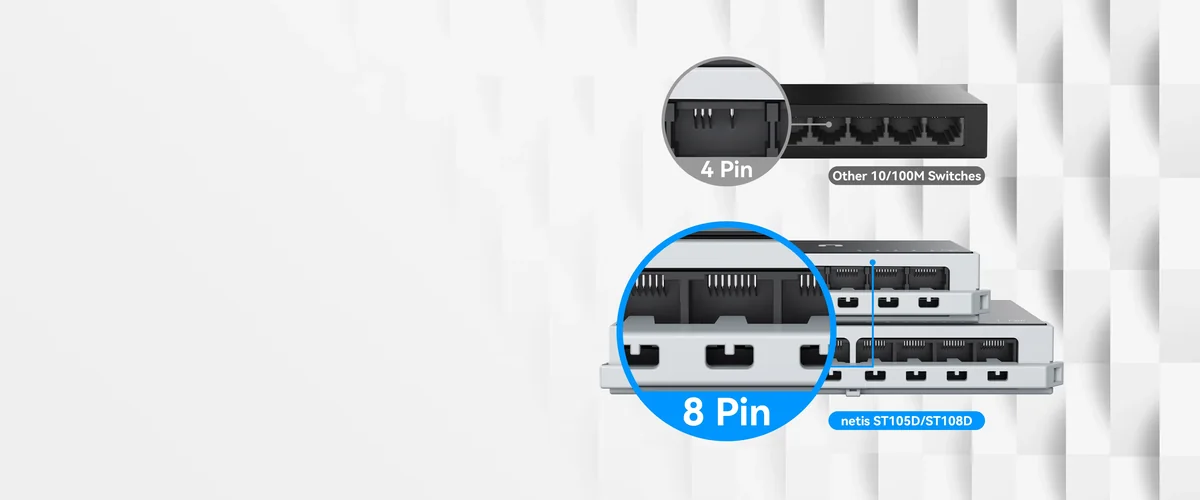

Eight-pin RJ45 sockets provide auto-negotiating 10/100Mbps Ethernet connections.8-pin RJ45 sockets වලින් auto-negotiating 10/100Mbps Ethernet connections ලබාගන්න පුළුවන්.

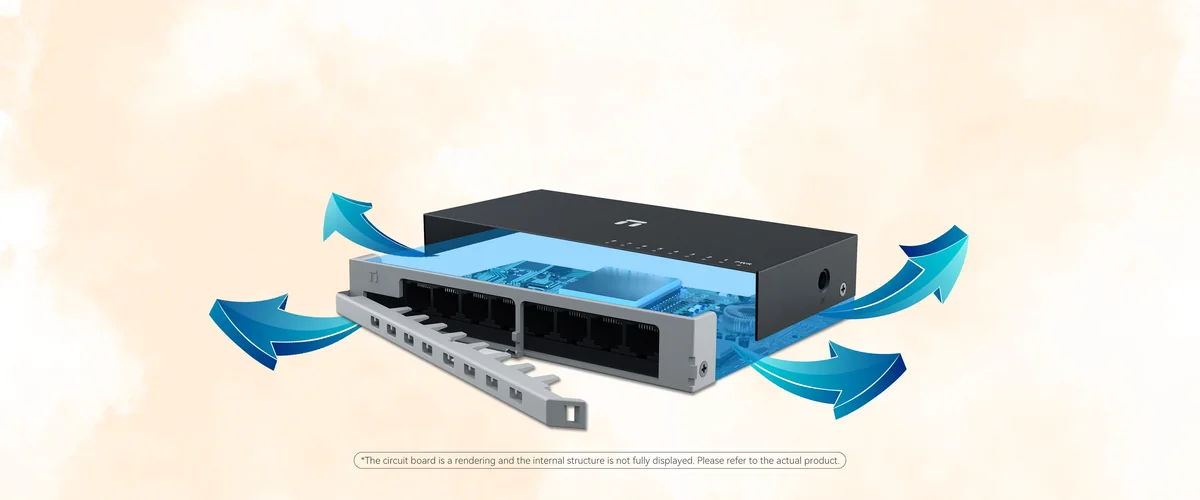

The steel housing supports passive heat dissipation and fits a compact desktop or wall-mounted setup.Steel housing එකෙන් උෂ්ණත්වය පිටවෙන්න උදව් වෙනවා. Compact desktop හෝ wall-mounted setup එකකට ගැළපෙනවා.

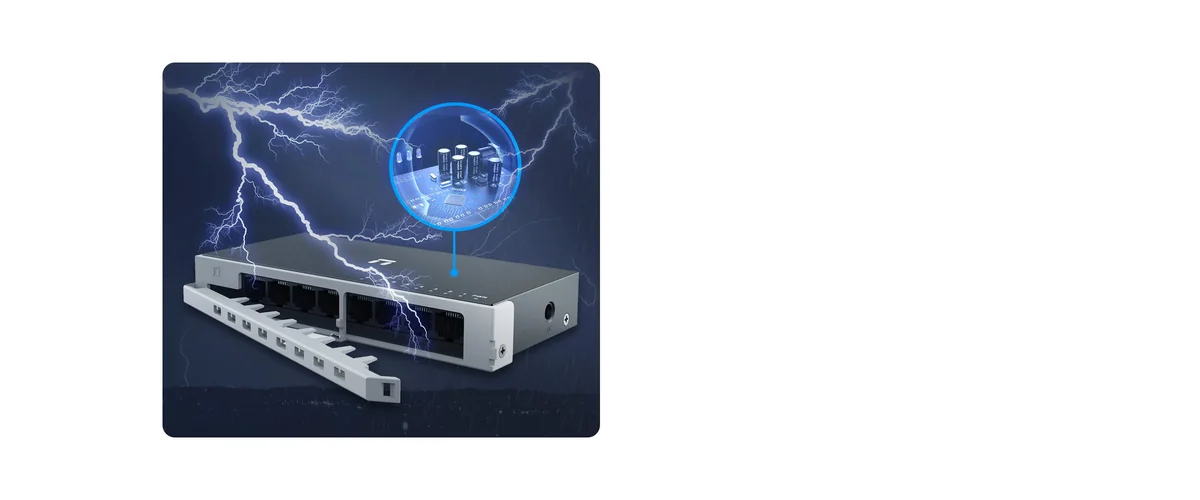

Netis specifies 4kV surge protection for this model. Use suitable grounding and installation protection for the site.මේ model එකට Netis 4kV surge protection සඳහන් කරනවා. Site එකට ගැළපෙන grounding සහ installation protection භාවිත කරන්න.
Connect compatible Ethernet devices and the power supply to start a wired network without switch-management configuration.ගැළපෙන Ethernet devices සහ power supply එක connect කරලා switch management settings දාන්නේ නැතුව wired network එකක් භාවිත කරන්න පුළුවන්.
Expand a small wired network with the Netis ST108D. Its 8 auto-negotiating RJ45 ports provide 10/100Mbps Fast Ethernet connections for compatible computers, recorders, routers and other network devices.Netis ST108D එකෙන් පොඩි wired network එකක් පුළුල් කරගන්න පුළුවන්. Auto-negotiating RJ45 ports 8ෙන් ගැළපෙන computers, recorders, routers සහ network devices සඳහා 10/100Mbps Fast Ethernet connections ලබාගන්න පුළුවන්.
Auto MDI/MDI-X and half/full-duplex support make wired connections straightforward. The steel housing, attached cable safety lock and desktop/wall-mount design suit compact installations.Auto MDI/MDI-X සහ half / full duplex support නිසා wired connections පහසුවෙන් සකස් කරගන්න පුළුවන්. Steel housing එක, cable safety lock එක සහ desktop / wall-mount design එක compact installation එකකට ගැළපෙනවා.
Use a compatible DC 5V / 800mA power supply and operate within 0–40°C. This model provides data-only Fast Ethernet ports; PoE power is not supplied through them.ගැළපෙන DC 5V / 800mA power supply එකක් භාවිත කරලා 0–40°C ඇතුළේ වැඩ කරවන්න. මේ model එකේ තියෙන්නේ data-only Fast Ethernet ports; ඒවායෙන් PoE power දෙන්නේ නැහැ.
The gallery includes official series-comparison and packaging references. HZone can confirm the local box contents before ordering.Gallery එකේ official series comparison සහ packaging references තියෙනවා. Order කරන්න කලින් local box එකේ දෙන දේවල් HZone එක්ක confirm කරගන්න පුළුවන්.
Sold per Nos — one unit.Nos — එක unit එකක් විදිහට විකුණනවා.
2 Years Warrantyවසර 2ක වගකීමක්
| Model | ST108DST108D model එක |
|---|---|
| Ports | 8 × 10/100Mbps RJ4510/100Mbps RJ45 ports 8ක් |
| Switch type | Unmanaged Fast EthernetUnmanaged Fast Ethernet switch එකක් |
| PoE output | Not specified; ordinary data portsසාමාන්‍ය data ports; PoE power outputs නෙවෙයි |
| Standards | IEEE 802.3 / 802.3u / 802.3xIEEE 802.3 / 802.3u / 802.3x support |
| Negotiation | Auto-negotiation; Auto MDI/MDI-XSpeed auto-negotiate කරනවා; Auto MDI/MDI-X support |
|---|---|
| Duplex | Half / full duplexHalf සහ full duplex support |
| Forwarding | Store and forwardStore-and-forward switching |
| Access method | CSMA/CDCSMA/CD access method |
| Indicators | Power + 8 port LEDs (9 total)Power LED එකක් සහ port LEDs 8ක්; මුළු LEDs 9ක් |
| Setup | Plug and play; no switch-management setupPlug and play; switch management settings දාන්න ඕන නැහැ |
| Power input | DC 5V / 800mADC 5V / 800mA input එකක් |
|---|---|
| Housing | Steel; attached cable safety lockSteel housing සහ cable safety lock |
| Installation | Desktop or wall mountDesktop හෝ wall mount කරන්න පුළුවන් |
| Dimensions L × W × H | 150 × 70 × 22.55mm150 × 70 × 22.55mm |
| Surge rating | 4kV, manufacturer product-page claimManufacturer product page එකේ 4kV සඳහන් කරනවා |
| Operating temperature | 0–40°Cභාවිත කරන විට 0–40°C |
|---|---|
| Operating humidity | 10–90% RH, non-condensing10–90% RH; condensation නැති තත්ත්වයක |
| Storage temperature | −20–70°CStore කරන විට −20–70°C |
| Storage humidity | 5–90% RH, non-condensing5–90% RH; condensation නැති තත්ත්වයක |
| Brand | NetisNetis Brand එක |
|---|---|
| Selling unit | Nos — one unitNos — එක unit එකක් |
| 2 Years Warrantyවසර 2ක වගකීමක් |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
