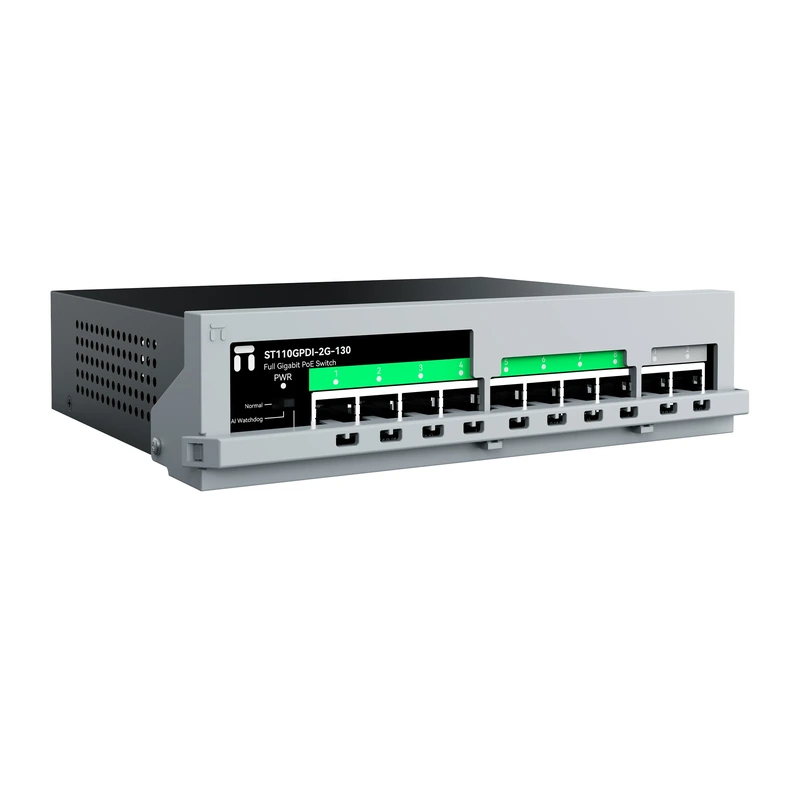

Netis ST110GPDI-2G-130 Gigabit PoE Switch — 8 PoE + 2 Uplinks

Model: ST110GPDI-2G-130

2 Years Warranty

Out of stock · Request to order

MRP LKR 19,163.2 10% off
LKR 17,246.88
  • 8 Gigabit PoE + 2 Gigabit RJ45 uplinksGigabit PoE ports 8ක් සහ Gigabit RJ45 uplinks 2ක්
  • 130W internal PSU; 120W maximum shared PoE outputInternal PSU එක 130Wයි; මුළු PoE output budget එක 120W දක්වායි
  • IEEE 802.3af/at; up to 30W on one compatible PoE portIEEE 802.3af/at; ගැළපෙන PoE port එකකට 30W දක්වා
  • 20Gbps switching capacity; 4K MAC table20Gbps switching capacity සහ 4K MAC table
  • Normal / Extension / AI Watchdog modesNormal / Extension / AI Watchdog modes
  • 2 Years Warrantyවසර 2ක වගකීමක්
  • Steel housingSteel housing එක

  • Plug and playපහසුවෙන් connect කරන්න

  • Surge protection — see rating noteSurge protection — rating note එක බලන්න

  • 120W shared PoE outputමුළු PoE output එක 120W දක්වා

  • Extension at 10Mbps10Mbps Extension mode

  • PoE WatchdogPoE Watchdog support

  • Selectable operating modesඅවශ්‍ය operating mode තෝරන්න

  • Attached safety lockBuilt-in cable safety lock එක

Product overview

ST110GPDI-2G-130

GIGABIT PoE SWITCH

Power your cameras.
Connect your network.

IP cameras සහ ගැළපෙන PoE devices සඳහා power සහ data එකම තැනින්.

  • 8 PoE + 2 GE
  • 120W PoE budget
  • 802.3af/at
ST110GPDI-2G-130 — exact model
8 × Gigabit PoE2 × Gigabit uplinks

MODEL-SPECIFIC PORT LAYOUT

8 PoE connections.

මේ model එකේ හරි port layout එක සහ power budget එක බලලා devices තෝරගන්න.

More details / වැඩි විස්තර

Model: ST110GPDI-2G-130ST110GPDI-2G-130 model එක

PoE ports: 8 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 8ක්

Copper uplinks: 2 ×10/100/1000Mbps RJ4510/100/1000Mbps RJ45 uplinks 2ක්

Internal PSU: 130WInternal PSU rating එක 130W

Shared PoE output: 120W maximumමුළු PoE output budget එක 120W දක්වා

Maximum per-port output: 30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා

PoE standards: IEEE 802.3af/atIEEE 802.3af/at support

ST110GPDI-2G-130 — 8 PoE connections.

SHARED PoE BUDGET

120W

One shared power budget.

130W PSU එකේ උපරිම shared PoE output එක.

Up to 30W / portAll powered devices share 120W

GIGABIT UPLINKS

Fast links. Clear layout.

Gigabit RJ45 uplinks දෙකෙන් recorder හෝ network එකට connect කරන්න.

More details / වැඩි විස්තර

Model: ST110GPDI-2G-130ST110GPDI-2G-130 model එක

PoE ports: 8 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 8ක්

Copper uplinks: 2 ×10/100/1000Mbps RJ4510/100/1000Mbps RJ45 uplinks 2ක්

Internal PSU: 130WInternal PSU rating එක 130W

Shared PoE output: 120W maximumමුළු PoE output budget එක 120W දක්වා

Maximum per-port output: 30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා

PoE standards: IEEE 802.3af/atIEEE 802.3af/at support

ST110GPDI-2G-130 — Fast links. Clear layout.

MODES & DISTANCE

Choose the right mode.

Extend mode: 250m දක්වා 10Mbps. ගැළපෙන terminal සහ cable අවශ්‍යයි.

12345678910

PoE · GE uplinks

More details / වැඩි විස්තර

Switch type: Unmanaged Gigabit PoEUnmanaged Gigabit PoE switch එකක්

Switching capacity: 20Gbps20Gbps switching capacity

MAC table: 4K4K MAC table

Modes: Normal / Extension / AI WatchdogNormal / Extension / AI Watchdog

PoE Watchdog: Automatic activity-based PoE port recoveryDevice data activity අනුව PoE port auto recovery

Control: 1 DIP switchDIP switch 1ක්

MDI/MDI-X: Automatic on all portsහැම port එකකටම auto MDI/MDI-X

Forwarding: Store and forwardStore-and-forward switching

MAC learning: Automatic learning and ageingMAC addresses auto learn සහ age වෙනවා

Flow control: IEEE 802.3x full duplex; backpressure half duplexFull duplex සඳහා IEEE 802.3x; half duplex සඳහා backpressure

Standards: IEEE 802.3 /802.3i /802.3u /802.3ab /802.3xIEEE 802.3 /802.3i /802.3u /802.3ab /802.3x

Indicators: Power; PoE/uplink Link/ACTPower සහ PoE / uplink Link / ACT indicators

Normal copper reach: Up to 100m; suitable Cat5/5e/6 or betterගැළපෙන Cat5/5e/6 හෝ ඊට හොඳ cable එකක 100m දක්වා

Extension: Up to 250m at 10Mbps10Mbps සඳහා 250m දක්වා

Installation dependency: Compatible terminal and suitable cable/condition requiredගැළපෙන terminal එකක් සහ හොඳ cable / condition අවශ්‍යයි

All feature details & original illustrations / සියලු විස්තර

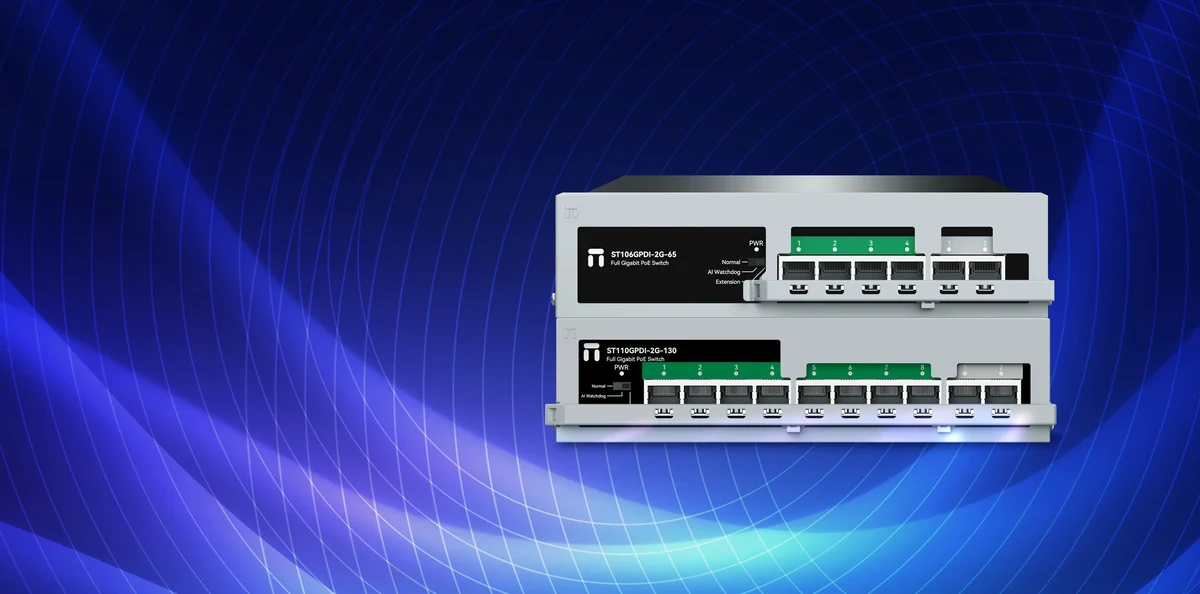

Gigabit PoE for connected devicesConnected devices සඳහා Gigabit PoE

Official Netis family artwork shows the ST106GPDI and ST110GPDI ranges. Check this model’s port layout and shared power budget below.Official Netis family artwork එකේ ST106GPDI සහ ST110GPDI range එක පෙන්වනවා. මේ model එකේ port layout එක සහ shared power budget එක පහළින් බලන්න.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

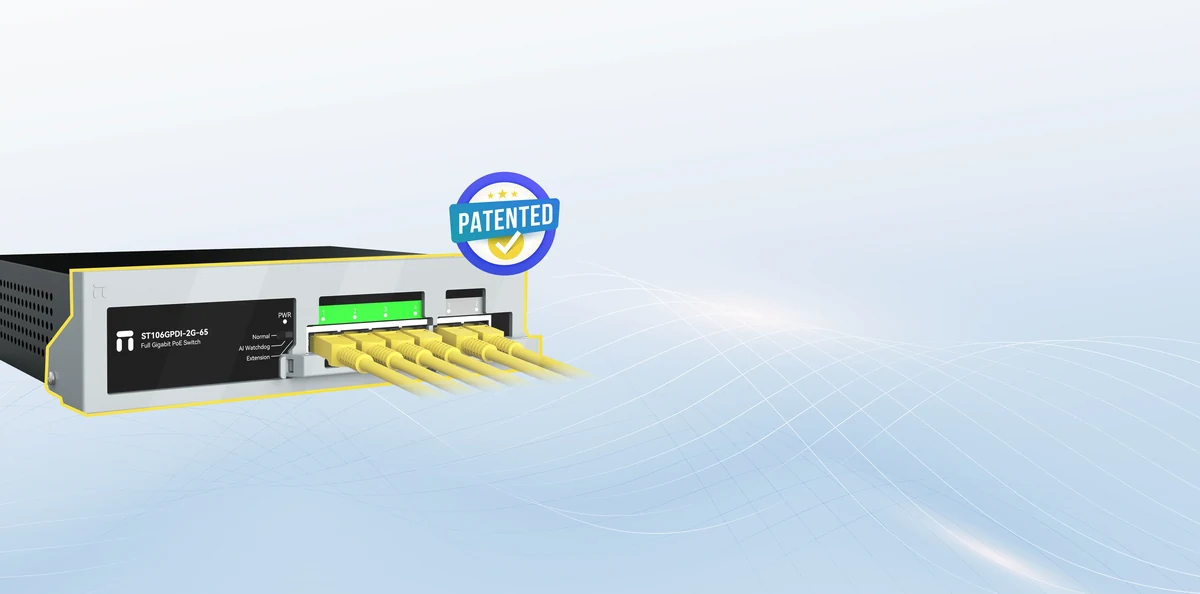

Attached cable safety lockBuilt-in cable safety lock එක

The attached safety lock helps retain Ethernet cables and keeps connections organised.Built-in safety lock එක Ethernet cables රඳවාගෙන connections පිළිවෙළට තියාගන්න උදව් කරනවා.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

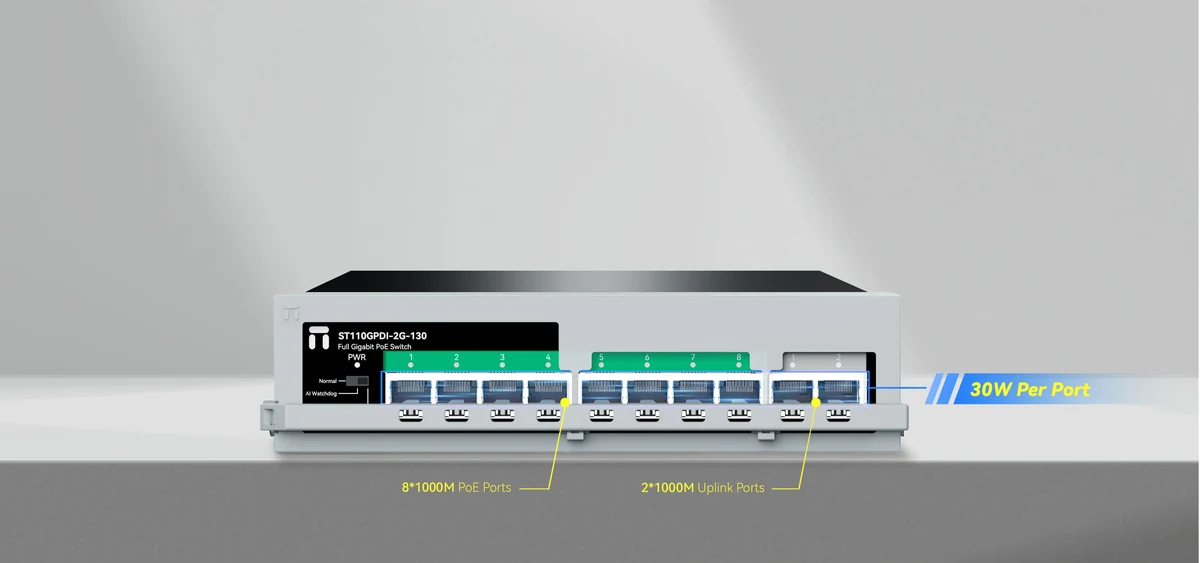

Plan the shared PoE power budgetමුළු PoE power budget එක බලලා සැලසුම් කරන්න

This model has a 130W internal PSU and a maximum 120W shared PoE output budget. A compatible port can provide up to 30W, but the connected devices must fit the total budget.මේ model එකේ internal PSU එක 130Wයි. PoE devices වලට එකතුව දෙන උපරිම power budget එක 120Wයි. ගැළපෙන port එකකින් 30W දක්වා දෙන්න පුළුවන් වුණත් ඔක්කොම devices එකතු කරපු load එක මුළු budget එක ඇතුළේ තියෙන්න ඕන.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

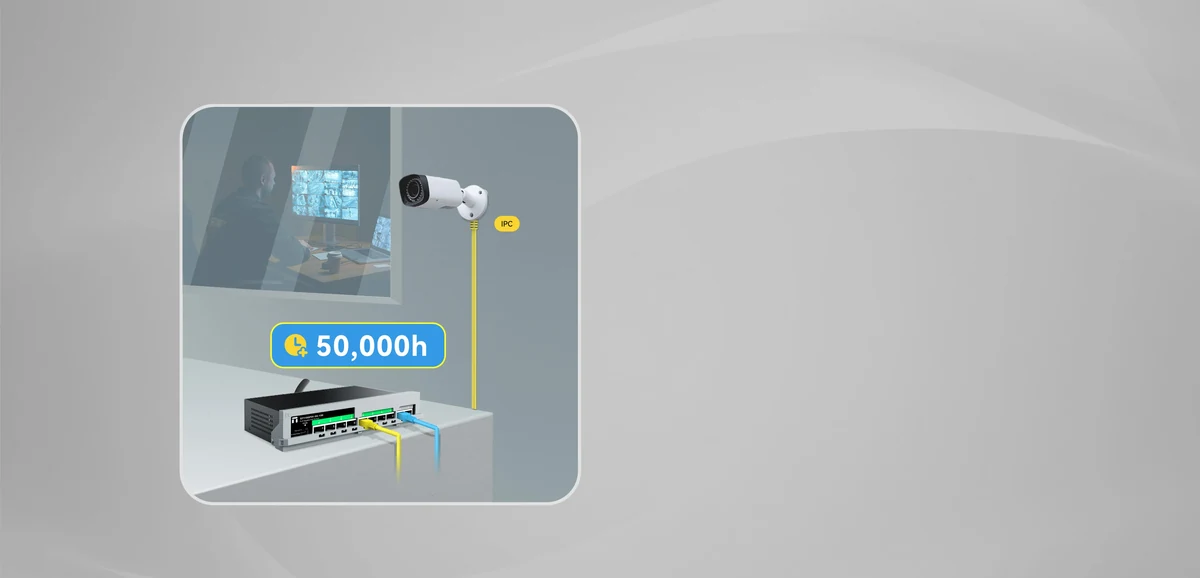

Reliability and operating rangeReliability සහ operating range එක

Netis highlights a 50,000-hour reliability claim in this official artwork. The specified operating range is 0–40°C; HZone warranty details are listed separately.මේ official artwork එකේ Netis 50,000-hour reliability claim එක පෙන්වනවා. සඳහන් operating range එක 0–40°Cයි. HZone warranty details වෙනම දාලා තියෙනවා.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

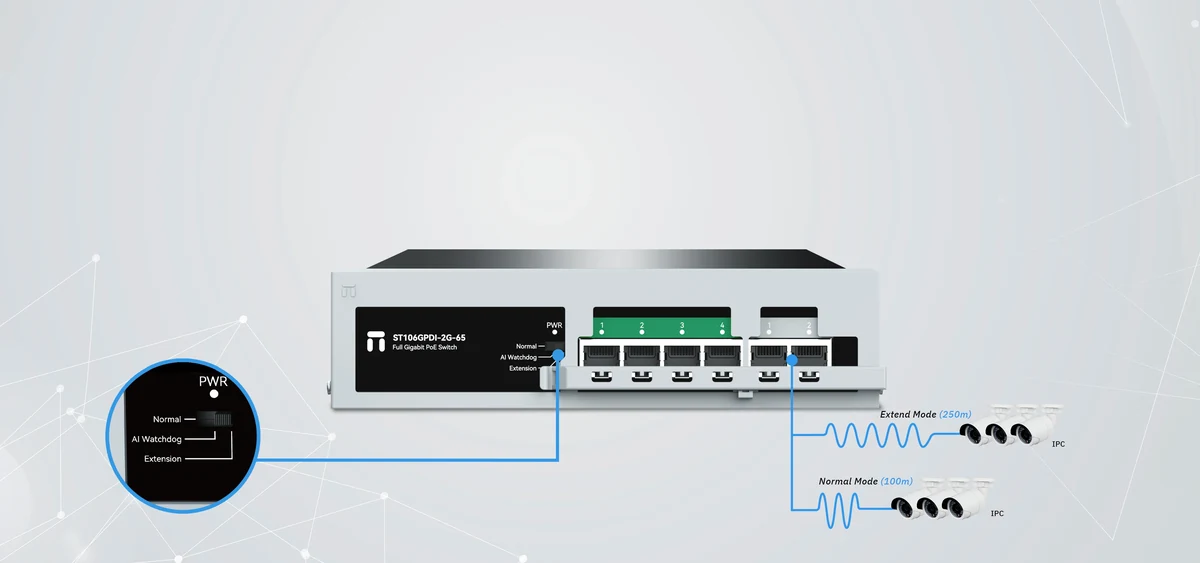

Longer distance at a lower link rateඅඩු link rate එකකින් වැඩි දුරකට

Extension mode supports up to 250m at 10Mbps with a compatible terminal and suitable cabling. Normal Gigabit copper links reach up to 100m. Netis recommends Cat6 cable.ගැළපෙන terminal සහ cabling එක්ක Extension mode එකේ 10Mbps සඳහා 250m දක්වා සඳහන් කරනවා. Normal Gigabit copper links 100m දක්වායි. Netis Cat6 cable recommend කරනවා.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

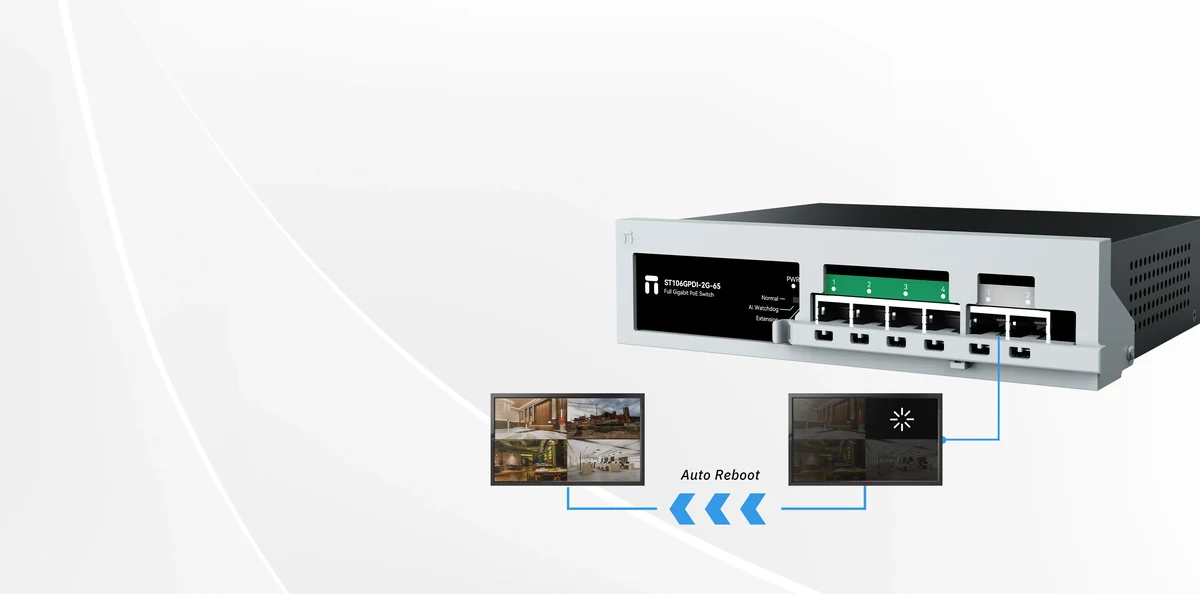

Automatic PoE port recoveryPoE port එක auto restart කරන්න උදව් කරනවා

PoE Watchdog monitors device data activity and can restart the corresponding port if the device stops sending data for an extended period.PoE Watchdog එක device data activity බලලා දීර්ඝ වෙලාවක් data එවන්නේ නැත්නම් අදාළ port එක restart කරන්න උදව් කරනවා.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

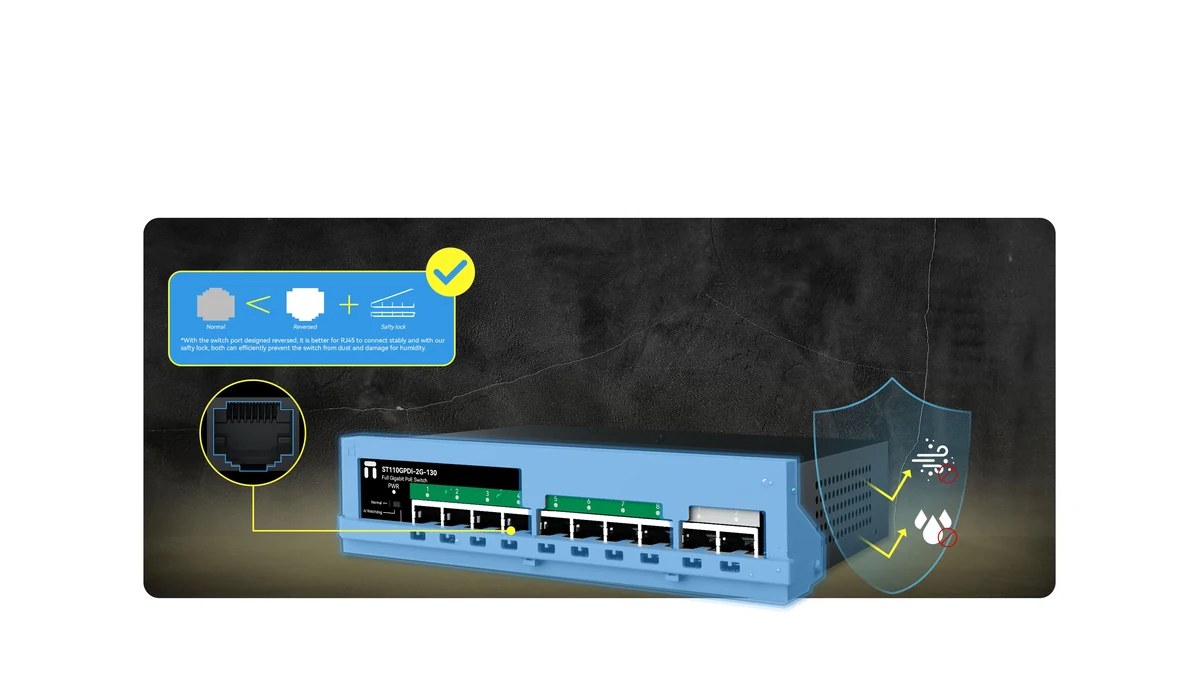

Port layout and cable retentionPort layout එක සහ cable retention

The port layout and cable-retention design support organised connections. Install the switch in a suitable protected location with clear ventilation.Port layout එක සහ cable-retention design එක connections පිළිවෙළට තියාගන්න උදව් කරනවා. හොඳ ventilation තියෙන ගැළපෙන protected තැනක switch එක install කරන්න.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

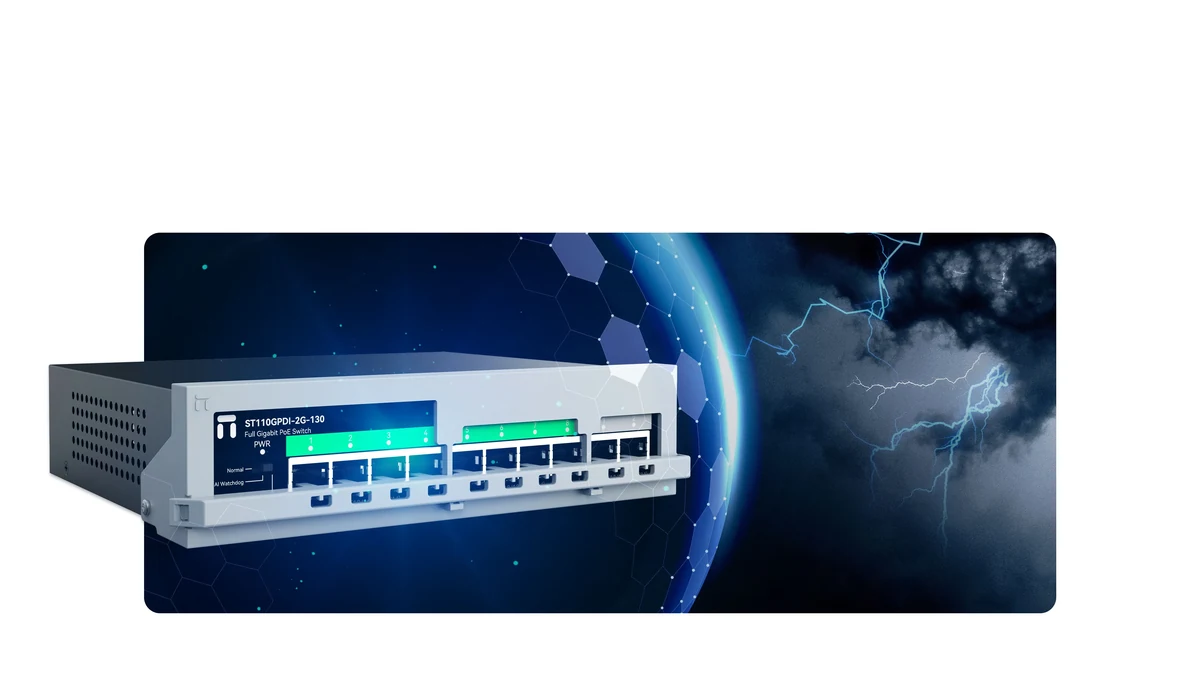

Built-in protection featuresBuilt-in protection features

Netis lists overcurrent, overload, short-circuit and surge protection. Use suitable grounding and installation protection for the site.Netis overcurrent, overload, short-circuit සහ surge protection සඳහන් කරනවා. Site එකට ගැළපෙන grounding සහ installation protection භාවිත කරන්න.

View full manufacturer illustration ↗

Manufacturer artwork may show related models; use this item's specifications for its exact port count and power budget.

Product detailsනිෂ්පාදන විස්තර

The Netis ST110GPDI-2G-130 connects compatible IP cameras, access points and Ethernet devices through 8 Gigabit PoE ports and two Gigabit RJ45 uplinks.Netis ST110GPDI-2G-130 එකේ Gigabit PoE ports 8ක් සහ Gigabit RJ45 uplinks 2ක් තියෙනවා. ගැළපෙන IP cameras, access points සහ Ethernet devices connect කරන්න පුළුවන්.

The 130W internal PSU supports a maximum 120W shared PoE output budget. A compatible IEEE 802.3af/at port can provide up to 30W within that total. Match the connected devices to the shared power budget.Internal PSU එක 130Wයි. PoE devices සඳහා උපරිම shared output budget එක 120Wයි. ඒ මුළු budget එක ඇතුළේ ගැළපෙන IEEE 802.3af/at port එකකට 30W දක්වා දෙන්න පුළුවන්. Connected devices ටික shared power budget එකට ගැළපෙන්න තෝරන්න.

A DIP switch selects Normal, Extension or AI Watchdog mode. Normal copper links reach up to 100m; Extension mode supports up to 250m at 10Mbps with a compatible terminal and suitable cable. Netis recommends Cat6 cabling.DIP switch එකෙන් Normal, Extension හෝ AI Watchdog mode තෝරන්න පුළුවන්. Normal copper links 100m දක්වායි. ගැළපෙන terminal සහ cable එක්ක Extension mode එක 10Mbps සඳහා 250m දක්වායි. Netis Cat6 cabling recommend කරනවා.

The fanless steel enclosure and attached cable safety lock support compact, organised installations. The specified operating range is 0–40°C.Fanless steel enclosure එක සහ built-in cable safety lock එක compact installation එකක connections පිළිවෙළට තියාගන්න උදව් කරනවා. සඳහන් operating range එක 0–40°Cයි.

The gallery includes official family, application and packaging references. HZone can confirm local box contents before ordering.Gallery එකේ official family, application සහ packaging references තියෙනවා. Order කරන්න කලින් local box contents HZone එක්ක confirm කරගන්න පුළුවන්.

Sold per Nos — one unit.Nos — එක unit එකක් විදිහට විකුණනවා.

2 Years Warrantyවසර 2ක වගකීමක්

Specificationsතාක්ෂණික තොරතුරු

Network and PoE
ModelST110GPDI-2G-130ST110GPDI-2G-130 model එක
PoE ports8 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 8ක්
Copper uplinks2 ×10/100/1000Mbps RJ4510/100/1000Mbps RJ45 uplinks 2ක්
Internal PSU130WInternal PSU rating එක 130W
Shared PoE output120W maximumමුළු PoE output budget එක 120W දක්වා
Maximum per-port output30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා
PoE standardsIEEE 802.3af/atIEEE 802.3af/at support
Switching and operation
Switch typeUnmanaged Gigabit PoEUnmanaged Gigabit PoE switch එකක්
Switching capacity20Gbps20Gbps switching capacity
MAC table4K4K MAC table
ModesNormal / Extension / AI WatchdogNormal / Extension / AI Watchdog
PoE WatchdogAutomatic activity-based PoE port recoveryDevice data activity අනුව PoE port auto recovery
Control1 DIP switchDIP switch 1ක්
MDI/MDI-XAutomatic on all portsහැම port එකකටම auto MDI/MDI-X
ForwardingStore and forwardStore-and-forward switching
MAC learningAutomatic learning and ageingMAC addresses auto learn සහ age වෙනවා
Flow controlIEEE 802.3x full duplex; backpressure half duplexFull duplex සඳහා IEEE 802.3x; half duplex සඳහා backpressure
StandardsIEEE 802.3 /802.3i /802.3u /802.3ab /802.3xIEEE 802.3 /802.3i /802.3u /802.3ab /802.3x
IndicatorsPower; PoE/uplink Link/ACTPower සහ PoE / uplink Link / ACT indicators
Cabling and distance
Normal copper reachUp to 100m; suitable Cat5/5e/6 or betterගැළපෙන Cat5/5e/6 හෝ ඊට හොඳ cable එකක 100m දක්වා
ExtensionUp to 250m at 10Mbps10Mbps සඳහා 250m දක්වා
Installation dependencyCompatible terminal and suitable cable/condition requiredගැළපෙන terminal එකක් සහ හොඳ cable / condition අවශ්‍යයි
Physical and environment
HousingSteel; fanless; attached cable safety lockSteel fanless housing සහ cable safety lock
Dimensions W × D × H186 ×150 ×43mm186 × 150 × 43mm
Operating temperature0–40°Cභාවිත කරන විට 0–40°C
Storage temperature−40–70°CStore කරන විට −40–70°C
Operating humidity10–90% RH non-condensing10–90% RH; condensation නැතිව
Storage humidity5–90% RH non-condensing5–90% RH; condensation නැතිව
AltitudeUp to2000m, operating and storageOperating සහ storage සඳහා 2000m දක්වා
Surge protection2kV differential / 4kV common, global manufacturer specificationGlobal manufacturer specification අනුව differential 2kV / common 4kV
Packaged stackingMaximum 4 layers when fully packagedසම්පූර්ණයෙන් pack කරලා තිබුණොත් layers 4ක් දක්වා
Storage guidanceClean, ventilated storage away from heat and strong vibrationHeat සහ තද vibration වලින් ඈත් පිරිසිදු ventilation තියෙන තැනක store කරන්න
HZone offer
BrandNetisNetis Brand එක
Selling unitNos — one unitNos — එක unit එකක්
Warranty
2 Years Warrantyවසර 2ක වගකීමක්

Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
