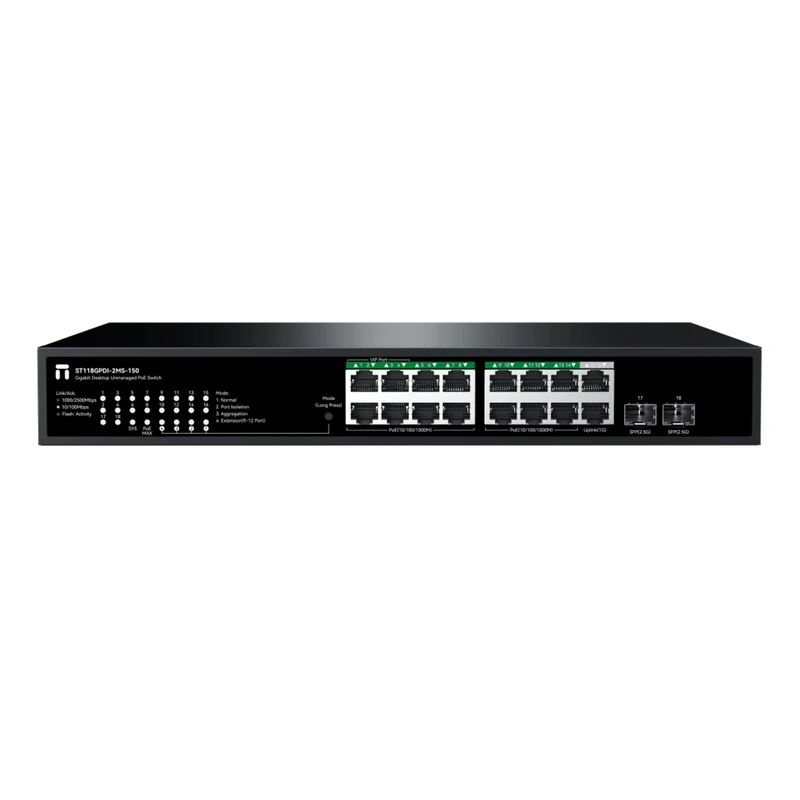

Netis ST118GPDI-2MS-150 Gigabit PoE Switch — 14 PoE + 2 GE + 2 SFP

Model: ST118GPDI-2MS-150

2 Years Warranty

Out of stock · Request to order

MRP LKR 49,560 10% off
LKR 44,604
  • 14 Gigabit PoE + 2 Gigabit RJ45 uplinks + 2 ×2.5Gbps SFPGigabit PoE ports 14ක් සහ Gigabit RJ45 uplinks 2ක් සමඟ 2.5Gbps SFP uplinks 2ක්
  • 150W internal PSU; 130W maximum shared PoE outputInternal PSU එක 150Wයි; මුළු PoE output budget එක 130W දක්වායි
  • IEEE 802.3af/at; up to 30W on one compatible PoE portIEEE 802.3af/at; ගැළපෙන PoE port එකකට 30W දක්වා
  • 42Gbps switching capacity; 16K MAC table42Gbps switching capacity සහ 16K MAC table
  • Normal / Isolation / Aggregation / Extension modesNormal / Isolation / Aggregation / Extension modes
  • 2 Years Warrantyවසර 2ක වගකීමක්
  • Steel housingSteel housing එක

  • Plug and playපහසුවෙන් connect කරන්න

  • Surge protection — see rating noteSurge protection — rating note එක බලන්න

  • 130W shared PoE outputමුළු PoE output එක 130W දක්වා

  • Extension at 10Mbps10Mbps Extension mode

  • PoE WatchdogPoE Watchdog support

  • Selectable operating modesඅවශ්‍ය operating mode තෝරන්න

  • 14 PoE + 2 GE RJ45 portsPoE 14ක් + GE RJ45 uplinks 2ක්

Product overview

ST118GPDI-2MS-150

GIGABIT PoE SWITCH

Power your cameras.
Connect your network.

IP cameras සහ ගැළපෙන PoE devices සඳහා power සහ data එකම තැනින්.

  • 14 PoE + 2 GE + 2 SFP
  • 130W PoE budget
  • 802.3af/at
ST118GPDI-2MS-150 — exact model
14 × Gigabit PoE2 × GE + 2 × 2.5G SFP

MODEL-SPECIFIC PORT LAYOUT

14 PoE connections.

මේ model එකේ හරි port layout එක සහ power budget එක බලලා devices තෝරගන්න.

More details / වැඩි විස්තර

Model: ST118GPDI-2MS-150ST118GPDI-2MS-150 model එක

PoE ports: 14 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 14ක්

Copper uplinks: 2 ×10/100/1000Mbps RJ45 — ports 15/1610/100/1000Mbps RJ45 uplinks 2ක් — ports 15/16

Internal PSU: 150WInternal PSU rating එක 150W

Shared PoE output: 130W maximumමුළු PoE output budget එක 130W දක්වා

Maximum per-port output: 30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා

PoE standards: IEEE 802.3af/atIEEE 802.3af/at support

Fibre uplinks: 2 ×2500Mbps SFP — ports 17/182500Mbps SFP uplinks 2ක් — ports 17/18

ST118GPDI-2MS-150 — 14 PoE connections.

SHARED PoE BUDGET

130W

One shared power budget.

150W PSU එකේ උපරිම shared PoE output එක.

Up to 30W / portAll powered devices share 130W

COPPER + FIBRE UPLINKS

More ways to link.

Ports 15/16 Gigabit RJ45 uplinks. Ports 17/18 2.5Gbps SFP uplinks.

More details / වැඩි විස්තර

Model: ST118GPDI-2MS-150ST118GPDI-2MS-150 model එක

PoE ports: 14 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 14ක්

Copper uplinks: 2 ×10/100/1000Mbps RJ45 — ports 15/1610/100/1000Mbps RJ45 uplinks 2ක් — ports 15/16

Internal PSU: 150WInternal PSU rating එක 150W

Shared PoE output: 130W maximumමුළු PoE output budget එක 130W දක්වා

Maximum per-port output: 30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා

PoE standards: IEEE 802.3af/atIEEE 802.3af/at support

Fibre uplinks: 2 ×2500Mbps SFP — ports 17/182500Mbps SFP uplinks 2ක් — ports 17/18

ST118GPDI-2MS-150 — More ways to link.

MODES & DISTANCE

Choose the right mode.

Extend mode: 250m දක්වා 10Mbps. Ports 9–12ට විතරයි.

123456789101112131415161718

PoE · GE uplinks · SFP uplinks

More details / වැඩි විස්තර

Switch type: Unmanaged Gigabit PoEUnmanaged Gigabit PoE switch එකක්

Switching capacity: 42Gbps42Gbps switching capacity

MAC table: 16K16K MAC table

Modes: Normal / Isolation / Aggregation / ExtensionNormal / Isolation / Aggregation / Extension

PoE Watchdog: Automatic activity-based PoE port recoveryDevice data activity අනුව PoE port auto recovery

Normal copper reach: Up to 100m; suitable Cat5/5e/6 or betterගැළපෙන Cat5/5e/6 හෝ ඊට හොඳ cable එකක 100m දක්වා

Extension: Up to 250m at 10Mbps on ports 9–12 only10Mbps සඳහා 250m දක්වා; ports 9–12ට විතරයි

Installation dependency: Compatible terminal and suitable cable/condition requiredගැළපෙන terminal එකක් සහ හොඳ cable / condition අවශ්‍යයි

VIP priority: Ports1–4 get forwarding priority during congestionNetwork congestion වෙලාවේ ports 1–4ට forwarding priority

Isolation: Ports1–14 isolated; ports 15–18 communicate as uplinksPorts 1–14 එකිනෙකෙන් වෙන් වෙනවා; ports 15–18 uplinks ලෙස connect වෙනවා

Aggregation: Ports15+16; ports 17+18Ports 15+16 සහ ports 17+18 groups

Extend selection: Ports9–12 at 10MbpsPorts 9–12 10Mbps speed එකට

Control: Mode-selection buttonMode select කරන button එක

Full specifications & original views / සියලු විස්තර

Network and PoE

Model: ST118GPDI-2MS-150ST118GPDI-2MS-150 model එක

PoE ports: 14 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 14ක්

Copper uplinks: 2 ×10/100/1000Mbps RJ45 — ports 15/1610/100/1000Mbps RJ45 uplinks 2ක් — ports 15/16

Internal PSU: 150WInternal PSU rating එක 150W

Shared PoE output: 130W maximumමුළු PoE output budget එක 130W දක්වා

Maximum per-port output: 30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා

PoE standards: IEEE 802.3af/atIEEE 802.3af/at support

Fibre uplinks: 2 ×2500Mbps SFP — ports 17/182500Mbps SFP uplinks 2ක් — ports 17/18

Switching and operation

Switch type: Unmanaged Gigabit PoEUnmanaged Gigabit PoE switch එකක්

Switching capacity: 42Gbps42Gbps switching capacity

MAC table: 16K16K MAC table

Modes: Normal / Isolation / Aggregation / ExtensionNormal / Isolation / Aggregation / Extension

PoE Watchdog: Automatic activity-based PoE port recoveryDevice data activity අනුව PoE port auto recovery

Cabling and distance

Normal copper reach: Up to 100m; suitable Cat5/5e/6 or betterගැළපෙන Cat5/5e/6 හෝ ඊට හොඳ cable එකක 100m දක්වා

Extension: Up to 250m at 10Mbps on ports 9–12 only10Mbps සඳහා 250m දක්වා; ports 9–12ට විතරයි

Installation dependency: Compatible terminal and suitable cable/condition requiredගැළපෙන terminal එකක් සහ හොඳ cable / condition අවශ්‍යයි

Advanced modes

VIP priority: Ports1–4 get forwarding priority during congestionNetwork congestion වෙලාවේ ports 1–4ට forwarding priority

Isolation: Ports1–14 isolated; ports 15–18 communicate as uplinksPorts 1–14 එකිනෙකෙන් වෙන් වෙනවා; ports 15–18 uplinks ලෙස connect වෙනවා

Aggregation: Ports15+16; ports 17+18Ports 15+16 සහ ports 17+18 groups

Extend selection: Ports9–12 at 10MbpsPorts 9–12 10Mbps speed එකට

Control: Mode-selection buttonMode select කරන button එක

Power, physical and environment

AC input: 100–240V AC, 50/60Hz100–240V AC, 50/60Hz input

Housing: SteelSteel housing එකක්

Dimensions W × D × H: 330 ×180.9 ×45mm330 × 180.9 × 45mm

Chipset: RTL8382BL + RTL8218E-VH-CG +2×RTL8231-GR +2×RTL8238C-CGRTL8382BL + RTL8218E-VH-CG +2×RTL8231-GR +2×RTL8238C-CG

Surge rating: 6kV common mode, official regional specificationOfficial regional specification අනුව common mode 6kV

Operating temperature: 0–45°Cභාවිත කරන විට 0–45°C

Storage temperature: −40–70°CStore කරන විට −40–70°C

Operating humidity: 10–90% RH non-condensing10–90% RH; condensation නැතිව

Storage humidity: 5–90% RH non-condensing5–90% RH; condensation නැතිව

Packaging material: EPE protective materialEPE protective material

HZone offer

Brand: NetisNetis Brand එක

Selling unit: Nos — one unitNos — එක unit එකක්

Documentation

Edition: HZone PDF edition of the original Netis English Word datasheet; manufacturer tables are retained.Original Netis English Word datasheet එකේ HZone PDF edition එක. Manufacturer tables ඒ විදිහටම තියාගෙන තියෙනවා.

Port layout note: The source table lists 16 PoE ports. HZone stock has 14 PoE ports, 2 Gigabit RJ45 uplinks and 2 SFP uplinks.Source table එකේ PoE ports 16ක් සඳහන් වෙනවා. HZone stock එකේ තියෙන්නේ PoE ports 14ක්, Gigabit RJ45 uplinks 2ක් සහ SFP uplinks 2ක්.

Warranty

2 Years Warrantyවසර 2ක වගකීමක්

Product detailsනිෂ්පාදන විස්තර

The Netis ST118GPDI-2MS-150 connects compatible IP cameras, access points and Ethernet devices through 14 Gigabit PoE ports and two Gigabit RJ45 uplinks, with two additional 2.5Gbps SFP uplinks for fibre networking.Netis ST118GPDI-2MS-150 එකේ Gigabit PoE ports 14ක් සහ Gigabit RJ45 uplinks 2ක් තියෙනවා. ගැළපෙන IP cameras, access points සහ Ethernet devices connect කරන්න පුළුවන්. Fibre networking සඳහා 2.5Gbps SFP uplinks 2කුත් තියෙනවා.

The 150W internal PSU supports a maximum 130W shared PoE output budget. A compatible IEEE 802.3af/at port can provide up to 30W within that total. Match the connected devices to the shared power budget.Internal PSU එක 150Wයි. PoE devices සඳහා උපරිම shared output budget එක 130Wයි. ඒ මුළු budget එක ඇතුළේ ගැළපෙන IEEE 802.3af/at port එකකට 30W දක්වා දෙන්න පුළුවන්. Connected devices ටික shared power budget එකට ගැළපෙන්න තෝරන්න.

Ports 1–14 provide PoE; ports 15/16 are Gigabit copper uplinks and ports 17/18 are 2.5Gbps SFP uplinks. VIP ports 1–4 receive forwarding priority during network congestion.Ports 1–14 වලින් PoE ලැබෙනවා. Ports 15/16 Gigabit copper uplinks සහ ports 17/18 2.5Gbps SFP uplinks. Network congestion වෙලාවේ VIP ports 1–4ට forwarding priority ලැබෙනවා.

Select Normal, Isolation, Aggregation or Extension mode to suit the network layout. Extension applies to ports 9–12 at 10Mbps, reaching up to 250m with compatible terminals and cabling. PoE Watchdog supports automatic activity-based port recovery.Network layout එකට ගැළපෙන්න Normal, Isolation, Aggregation හෝ Extension mode තෝරන්න. Extension එක ports 9–12ට 10Mbps speed එකෙන්, ගැළපෙන terminal සහ cabling එක්ක 250m දක්වායි. PoE Watchdog එක data activity අනුව port auto recovery කරන්න උදව් කරනවා.

Choose compatible SFP modules for the fibre link. HZone can confirm required transceivers and local box contents before ordering.Fibre link එකට ගැළපෙන SFP modules තෝරන්න. අවශ්‍ය transceivers සහ local box contents order කරන්න කලින් HZone එක්ක confirm කරගන්න පුළුවන්.

Sold per Nos — one unit.Nos — එක unit එකක් විදිහට විකුණනවා.

2 Years Warrantyවසර 2ක වගකීමක්

Specificationsතාක්ෂණික තොරතුරු

Network and PoE
ModelST118GPDI-2MS-150ST118GPDI-2MS-150 model එක
PoE ports14 ×10/100/1000Mbps RJ4510/100/1000Mbps PoE RJ45 ports 14ක්
Copper uplinks2 ×10/100/1000Mbps RJ45 — ports 15/1610/100/1000Mbps RJ45 uplinks 2ක් — ports 15/16
Internal PSU150WInternal PSU rating එක 150W
Shared PoE output130W maximumමුළු PoE output budget එක 130W දක්වා
Maximum per-port output30W within the shared power budgetShared power budget එක ඇතුළේ port එකකට 30W දක්වා
PoE standardsIEEE 802.3af/atIEEE 802.3af/at support
Fibre uplinks2 ×2500Mbps SFP — ports 17/182500Mbps SFP uplinks 2ක් — ports 17/18
Switching and operation
Switch typeUnmanaged Gigabit PoEUnmanaged Gigabit PoE switch එකක්
Switching capacity42Gbps42Gbps switching capacity
MAC table16K16K MAC table
ModesNormal / Isolation / Aggregation / ExtensionNormal / Isolation / Aggregation / Extension
PoE WatchdogAutomatic activity-based PoE port recoveryDevice data activity අනුව PoE port auto recovery
Cabling and distance
Normal copper reachUp to 100m; suitable Cat5/5e/6 or betterගැළපෙන Cat5/5e/6 හෝ ඊට හොඳ cable එකක 100m දක්වා
ExtensionUp to 250m at 10Mbps on ports 9–12 only10Mbps සඳහා 250m දක්වා; ports 9–12ට විතරයි
Installation dependencyCompatible terminal and suitable cable/condition requiredගැළපෙන terminal එකක් සහ හොඳ cable / condition අවශ්‍යයි
Advanced modes
VIP priorityPorts1–4 get forwarding priority during congestionNetwork congestion වෙලාවේ ports 1–4ට forwarding priority
IsolationPorts1–14 isolated; ports 15–18 communicate as uplinksPorts 1–14 එකිනෙකෙන් වෙන් වෙනවා; ports 15–18 uplinks ලෙස connect වෙනවා
AggregationPorts15+16; ports 17+18Ports 15+16 සහ ports 17+18 groups
Extend selectionPorts9–12 at 10MbpsPorts 9–12 10Mbps speed එකට
ControlMode-selection buttonMode select කරන button එක
Power, physical and environment
AC input100–240V AC, 50/60Hz100–240V AC, 50/60Hz input
HousingSteelSteel housing එකක්
Dimensions W × D × H330 ×180.9 ×45mm330 × 180.9 × 45mm
ChipsetRTL8382BL + RTL8218E-VH-CG +2×RTL8231-GR +2×RTL8238C-CGRTL8382BL + RTL8218E-VH-CG +2×RTL8231-GR +2×RTL8238C-CG
Surge rating6kV common mode, official regional specificationOfficial regional specification අනුව common mode 6kV
Operating temperature0–45°Cභාවිත කරන විට 0–45°C
Storage temperature−40–70°CStore කරන විට −40–70°C
Operating humidity10–90% RH non-condensing10–90% RH; condensation නැතිව
Storage humidity5–90% RH non-condensing5–90% RH; condensation නැතිව
Packaging materialEPE protective materialEPE protective material
HZone offer
BrandNetisNetis Brand එක
Selling unitNos — one unitNos — එක unit එකක්
Documentation
EditionHZone PDF edition of the original Netis English Word datasheet; manufacturer tables are retained.Original Netis English Word datasheet එකේ HZone PDF edition එක. Manufacturer tables ඒ විදිහටම තියාගෙන තියෙනවා.
Port layout noteThe source table lists 16 PoE ports. HZone stock has 14 PoE ports, 2 Gigabit RJ45 uplinks and 2 SFP uplinks.Source table එකේ PoE ports 16ක් සඳහන් වෙනවා. HZone stock එකේ තියෙන්නේ PoE ports 14ක්, Gigabit RJ45 uplinks 2ක් සහ SFP uplinks 2ක්.
Warranty
2 Years Warrantyවසර 2ක වගකීමක්

Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
